Toyota Harrier/Hev (CHINA)

2021-11 → present · chassis AXUH8#,MXUA80 · catalogue 52B310 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

15 part groups · 2 illustrations

Illustrations

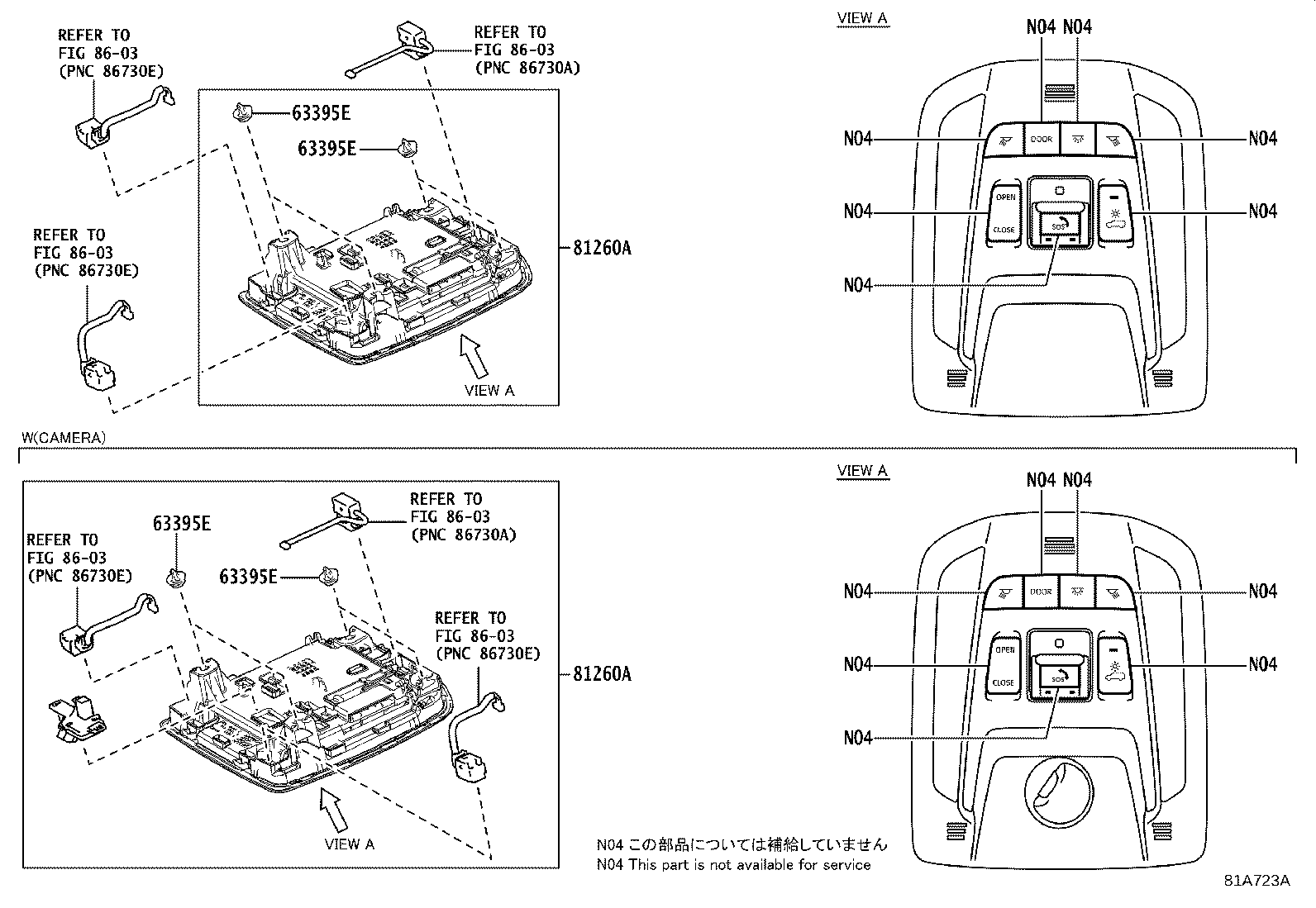

Figure 81A722A 81A722A 2021-11 → — Figure 81A723A 81A723A 2021-11 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
81080H Lamp Assy, Interior Illumination, NO.1 RH
81080K Lamp Assy, Console Box Illumination
81080L Lamp Assy, Interior Illumination, NO.1 LH
81080N Lamp Assy, Interior Illumination, NO.1
81080V Lamp Assy, Interior Illumination, NO.2
81080W Lamp Assy, Interior Illumination, NO.3
81230 Lamp Assy, Courtesy
81240 Lamp Assy, Room, NO.1
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81330 Lamp Assy, Luggage Compartment, NO.1
81340 Lamp Assy, Vanity
81360K Lamp Assy, Spot, RH
81390C Lamp Assy, Spot, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
