Toyota Harrier/Hev (CHINA)
2021-11 → present · chassis AXUH8#,MXUA80 · catalogue 52B310 · General
Supported model
Data version 2023-03

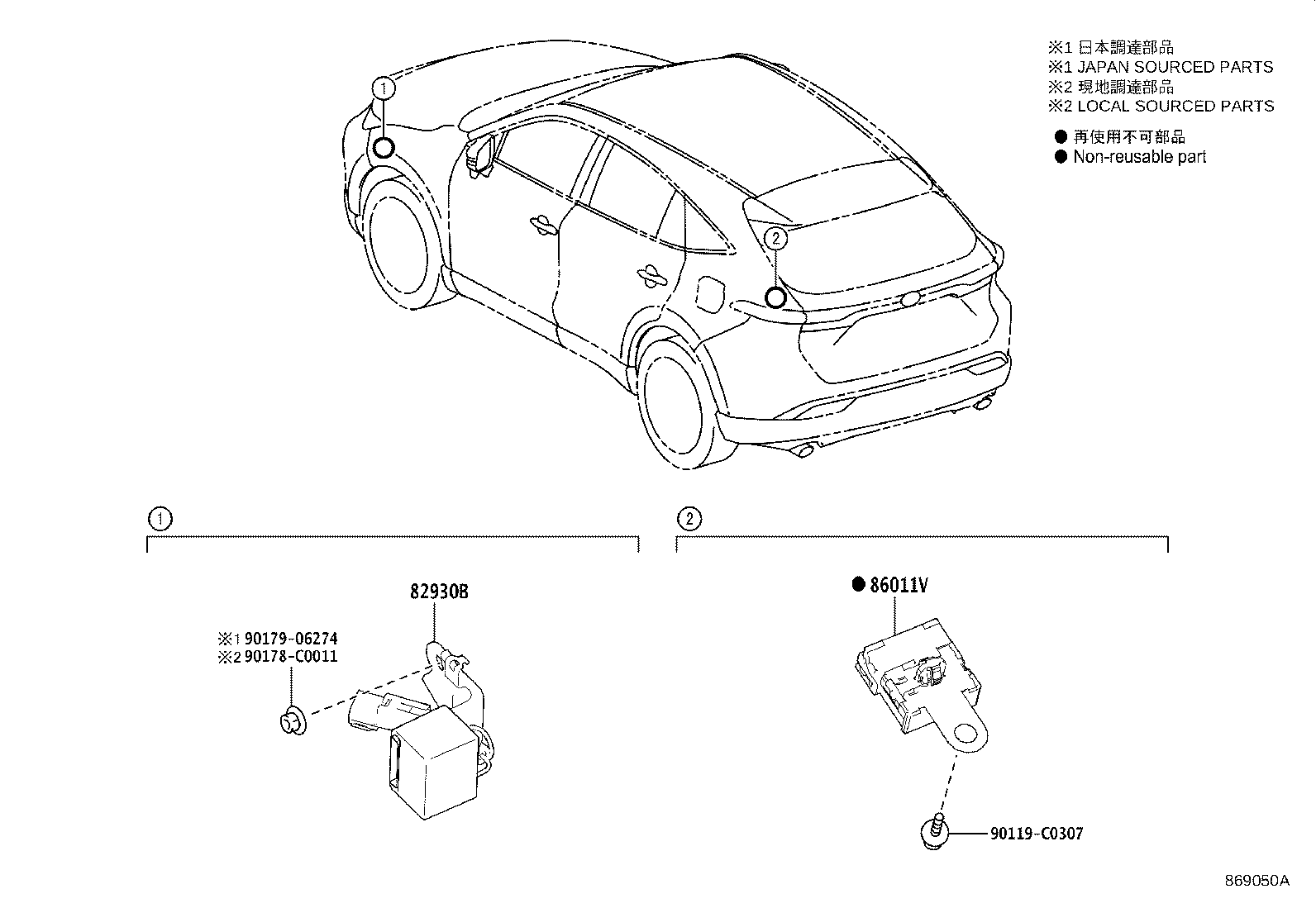

Radio Receiver & Amplifier & Condenser
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82930B | Condenser Assy, Wiring Harness |
| 86011C | Filter, Noise |
| 86011V | Condenser, Radio Setting |
| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 86280K | Amplifier Assy, Stereo Component |
| 86285B | Bracket, Amplifier, NO.1 |
| 86286B | Bracket, Amplifier, NO.2 |
| F1334 | Bracket, Converter Control, NO.1 |
| G92C0A | Converter Assy, Eco-run Vehicle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
