Toyota Harrier/Hev (CHINA)
2021-11 → present · chassis AXUH8#,MXUA80 · catalogue 52B310 · General
Supported model
Data version 2023-03
Heating & Air Conditioning - Cooler Piping

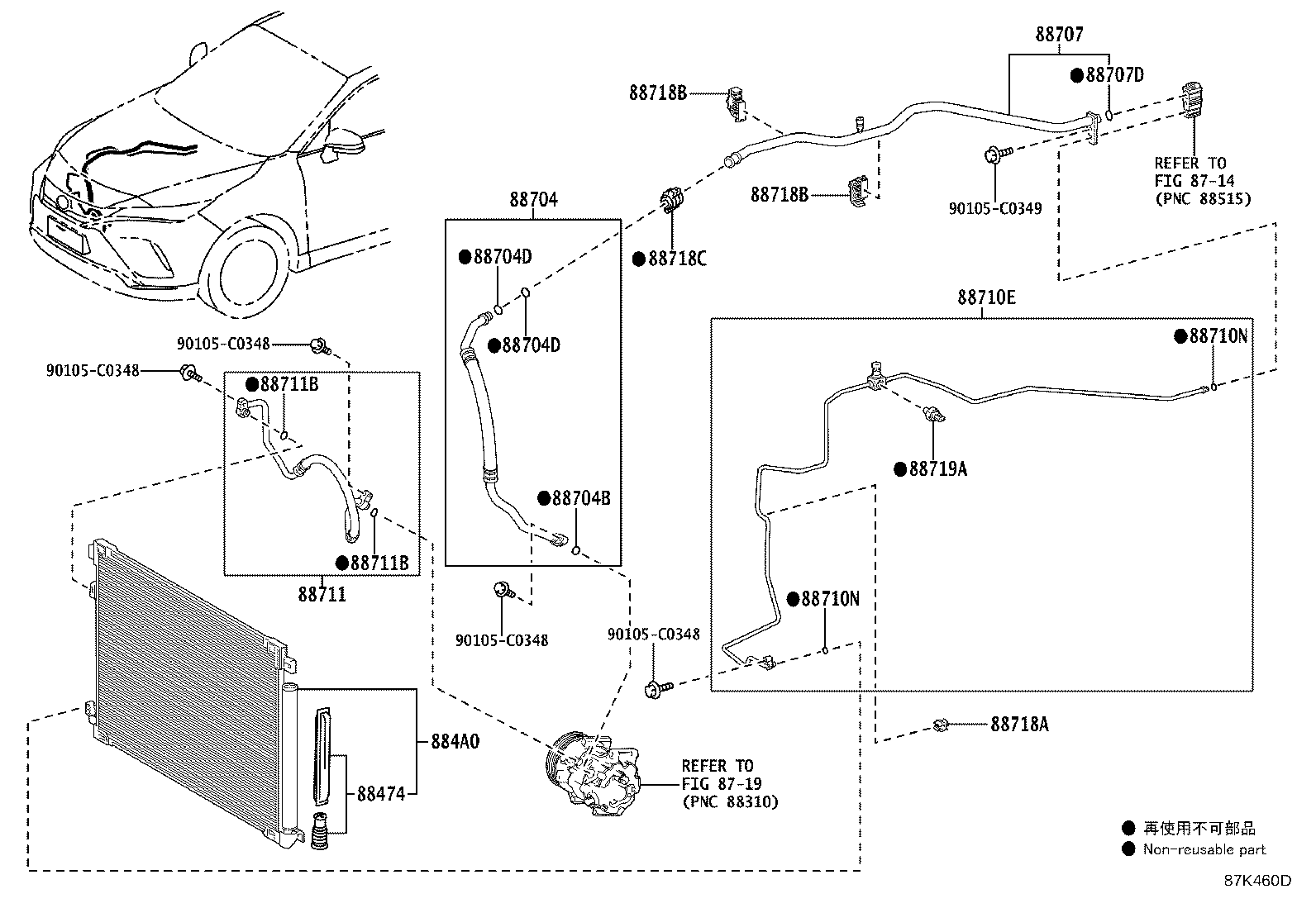

16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88474 | Dryer, Cooler |
| 884A0 | Condenser Assy, Cooler |
| 88704 | Hose Sub-assy, Suction |
| 88704B | Ring, O(FOR SUCTION HOSE) |
| 88704D | Ring, O, NO.2 (FOR SUCTION HOSE) |
| 88707 | Pipe Sub-assy, Suction |
| 88707D | Ring, O(FOR SUCTION TUBE) |
| 88710E | Tube & Accessory Assy, Air Conditioner |
| 88710N | Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER) |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88711B | Ring, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) |
| 88711J | Ring, O, NO.1(FOR DISCHARGE HOSE) |
| 88718A | Clamp, NO.1(FOR COOLER REFRIGERANT PIPE) |
| 88718B | Clamp, NO.2(FOR COOLER REFRIGERANT PIPE) |
| 88718C | Clamp, NO.3(FOR COOLER REFRIGERANT PIPE) |
| 88719A | Sensor, Air Conditioner Pressure |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
