Toyota Venza

2022-03 → present · chassis AXUH8#,MXUA8# · catalogue 52C310 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

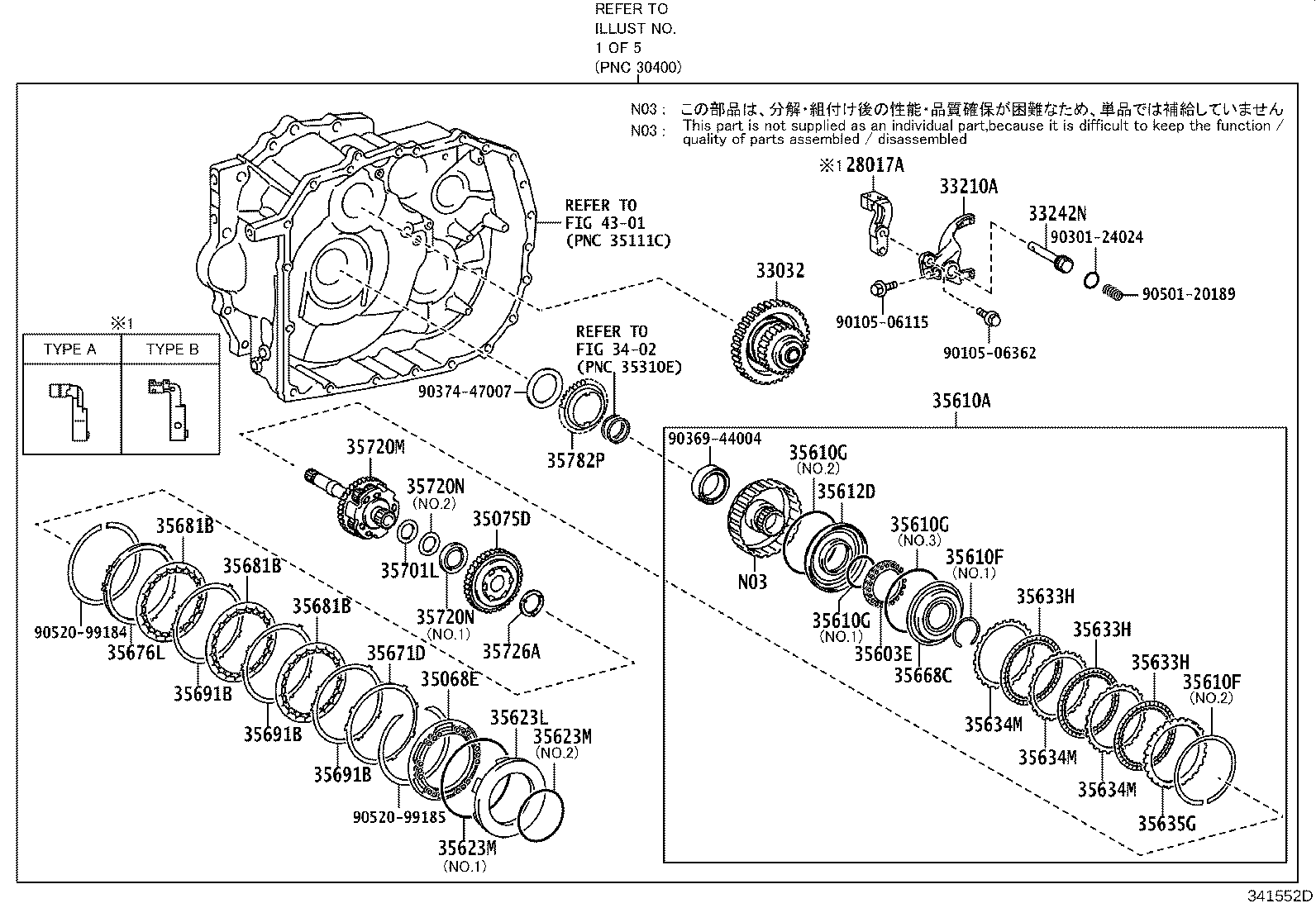

Exploded illustration 341552D 35681B — DISC, BRAKE, NO.1 (1 parts) 35691B — PLATE, BRAKE, NO.1 (1 parts) 35681B — DISC, BRAKE, NO.1 (1 parts) 35691B — PLATE, BRAKE, NO.1 (1 parts) 35681B — DISC, BRAKE, NO.1 (1 parts) 9010506362 — not listed in this catalogue 9030124024 — not listed in this catalogue 9050120189 — not listed in this catalogue 9010506115 — not listed in this catalogue 33032 — GEAR SUB-ASSY, 1ST (1 parts) 33210A — FORK ASSY, GEAR SHIFT, NO.1 (1 parts) 33242N — SHAFT, GEAR SHIFT FORK, NO.1 (1 parts) 35782P — SPROCKET, DRIVE (1 parts) 9037447007 — not listed in this catalogue 35603E — SPRING SUB-ASSY, FORWARD CLUTCH RETURN (1 parts) 35610G — RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) (3 parts) 35610G — RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) (3 parts) 35610G — RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) (3 parts) 35634M — PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) (1 parts) 35634M — PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) (1 parts) 35634M — PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) (1 parts) 35633H — DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) (1 parts) 35633H — DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) (1 parts) 35633H — DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) (1 parts) 35635G — FLANGE, FORWARD CLUTCH (6 parts) 35610F — RING, SNAP (FOR FORWARD MULTIPLE DISC CLUTCH) (2 parts) 35612D — PISTON, FORWARD CLUTCH (1 parts) 35610F — RING, SNAP (FOR FORWARD MULTIPLE DISC CLUTCH) (2 parts) 35668C — BALANCER, CLUTCH, NO.1 (1 parts) 9036944004 — not listed in this catalogue 35671D — PLATE, BRAKE CUSHION (1 parts) 35691B — PLATE, BRAKE, NO.1 (1 parts) 35676L — FLANGE, BRAKE (2 parts) 9052099184 — not listed in this catalogue 35068E — SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN (1 parts) 35623L — PISTON, REVERSE BRAKE (2 parts) 35623M — RING, O (FOR REVERSE BRAKE PISTON) (2 parts) 35623M — RING, O (FOR REVERSE BRAKE PISTON) (2 parts) 9052099185 — not listed in this catalogue 35075D — GEAR SUB-ASSY, FRONT PLANETARY RING (1 parts) 35720M — GEAR ASSY, PLANETARY (1 parts) 35726A — WASHER, PLANETARY RING GEAR THRUST (1 parts) 35701L — RACE, THRUST BEARING (FOR INPUT SHAFT) (1 parts) 35720N — BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY GEAR) (2 parts) 35720N — BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY GEAR) (2 parts) 35610A — CLUTCH ASSY, FORWARD MULTIPLE DISC (1 parts) 28017A — STAY(FOR GEAR SHIFT FORK) (3 parts) 4301 — not listed in this catalogue 3402 — not listed in this catalogue
341552D · 39 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
40 parts on this figure
Part number Description Fitment Price
28017A — Stay(FOR GEAR SHIFT FORK)
28017-24110 note Stay(FOR GEAR SHIFT FORK)
2022-03 → 2023-04 ended
M20CFKS MXUA80 —
28017-24120 note Stay(FOR GEAR SHIFT FORK)
2022-03 → —
M20CFKS MXUA80 —
28017-24120 Stay(FOR GEAR SHIFT FORK)
2022-03 → —
M20CFKS MXUA85 —
33032 — Gear Sub-assy, 1ST
33032-12110 Gear Sub-assy, 1ST
2022-03 → —
MXUA8# —
33210A — Fork Assy, Gear Shift, NO.1
33210-12040 Fork Assy, Gear Shift, NO.1
2022-03 → —
MXUA8# —
33242N — Shaft, Gear Shift Fork, NO.1
33242-12130 Shaft, Gear Shift Fork, NO.1
2022-03 → —
MXUA8# —
35068E — Spring Sub-assy, 1ST & Reverse Brake Return
35068-12041 Spring Sub-assy, 1ST & Reverse Brake Return
2022-03 → —
MXUA8# —
35075D — Gear Sub-assy, Front Planetary Ring
35075-12050 Gear Sub-assy, Front Planetary Ring
2022-03 → —
MXUA8# —
35603E — Spring Sub-assy, Forward Clutch Return
35603-12051 Spring Sub-assy, Forward Clutch Return
2022-03 → —
MXUA8# —
35610A — Clutch Assy, Forward Multiple Disc
35610-12290 Clutch Assy, Forward Multiple Disc
2022-03 → —
MXUA8# —
35610F — Ring, Snap (FOR FORWARD MULTIPLE DISC CLUTCH)
90520-44041 note Ring, Snap (FOR FORWARD MULTIPLE DISC CLUTCH)
2022-03 → —
MXUA8# —
90520-99187 note Ring, Snap (FOR FORWARD MULTIPLE DISC CLUTCH)
2022-03 → —
MXUA8# —
35610G — Ring, O (FOR FORWARD MULTIPLE DISC CLUTCH)
90301-52007 note Ring, O (FOR FORWARD MULTIPLE DISC CLUTCH)
2022-03 → —
MXUA8# —
90302-99006 note Ring, O (FOR FORWARD MULTIPLE DISC CLUTCH)
2022-03 → —
MXUA8# —
90302-99007 note Ring, O (FOR FORWARD MULTIPLE DISC CLUTCH)
2022-03 → —
MXUA8# —
35612D — Piston, Forward Clutch
35612-12090 Piston, Forward Clutch
2022-03 → —
MXUA8# —
35623L — Piston, Reverse Brake
35623-12100 Piston, Reverse Brake
2022-03 → 2023-04 ended
MXUA8# —
35623-42010 Piston, Reverse Brake
2023-04 → —
MXUA8# —
35623M — Ring, O (FOR REVERSE BRAKE PISTON)
90301-95004 note Ring, O (FOR REVERSE BRAKE PISTON)
2022-03 → —
MXUA8# —
90301-99238 note Ring, O (FOR REVERSE BRAKE PISTON)
2022-03 → —
MXUA8# —
35633H — Disc, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-12150 Disc, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH)
2022-03 → —
MXUA8# —
35634M — Plate, Clutch, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH)
35634-12100 Plate, Clutch, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH)
2022-03 → —
MXUA8# —
35635G — Flange, Forward Clutch
35635-12280 note Flange, Forward Clutch
2022-03 → —
MXUA8# —
35635-12290 note Flange, Forward Clutch
2022-03 → —
MXUA8# —
35635-12300 note Flange, Forward Clutch
2022-03 → —
MXUA8# —
35635-12310 note Flange, Forward Clutch
2022-03 → —
MXUA8# —
35635-12320 note Flange, Forward Clutch
2022-03 → —
MXUA8# —
35635-12330 note Flange, Forward Clutch
2022-03 → —
MXUA8# —
35668C — Balancer, Clutch, NO.1
35668-12051 Balancer, Clutch, NO.1
2022-03 → —
MXUA8# —
35671D — Plate, Brake Cushion
35671-12050 Plate, Brake Cushion
2022-03 → 2023-04 ended
MXUA8# —
35676L — Flange, Brake
35676-12120 Flange, Brake
2022-03 → 2023-04 ended
MXUA8# —
35676-42010 Flange, Brake
2023-04 → —
MXUA8# —
35681B — Disc, Brake, NO.1
35681-12040 Disc, Brake, NO.1
2022-03 → —
MXUA8# —
35691B — Plate, Brake, NO.1
35691-12050 Plate, Brake, NO.1
2022-03 → —
MXUA8# —
35701L — Race, Thrust Bearing (FOR INPUT SHAFT)
35789-12110 Race, Thrust Bearing (FOR INPUT SHAFT)
2022-03 → —
MXUA8# —
35720M — Gear Assy, Planetary
35720-12090 Gear Assy, Planetary
2022-03 → —
MXUA8# —
35720N — Bearing, Thrust Needle Roller (FOR PLANETARY GEAR)
90374-24008 note Bearing, Thrust Needle Roller (FOR PLANETARY GEAR)
2022-03 → —
MXUA8# —
90374-29012 note Bearing, Thrust Needle Roller (FOR PLANETARY GEAR)
2022-03 → —
MXUA8# —
35726A — Washer, Planetary Ring Gear Thrust
35726-12020 Washer, Planetary Ring Gear Thrust
2022-03 → —
MXUA8# —
35782P — Sprocket, Drive
35782-12070 Sprocket, Drive
2022-03 → —
MXUA8# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
