Toyota Venza

2022-03 → present · chassis AXUH8#,MXUA8# · catalogue 52C310 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

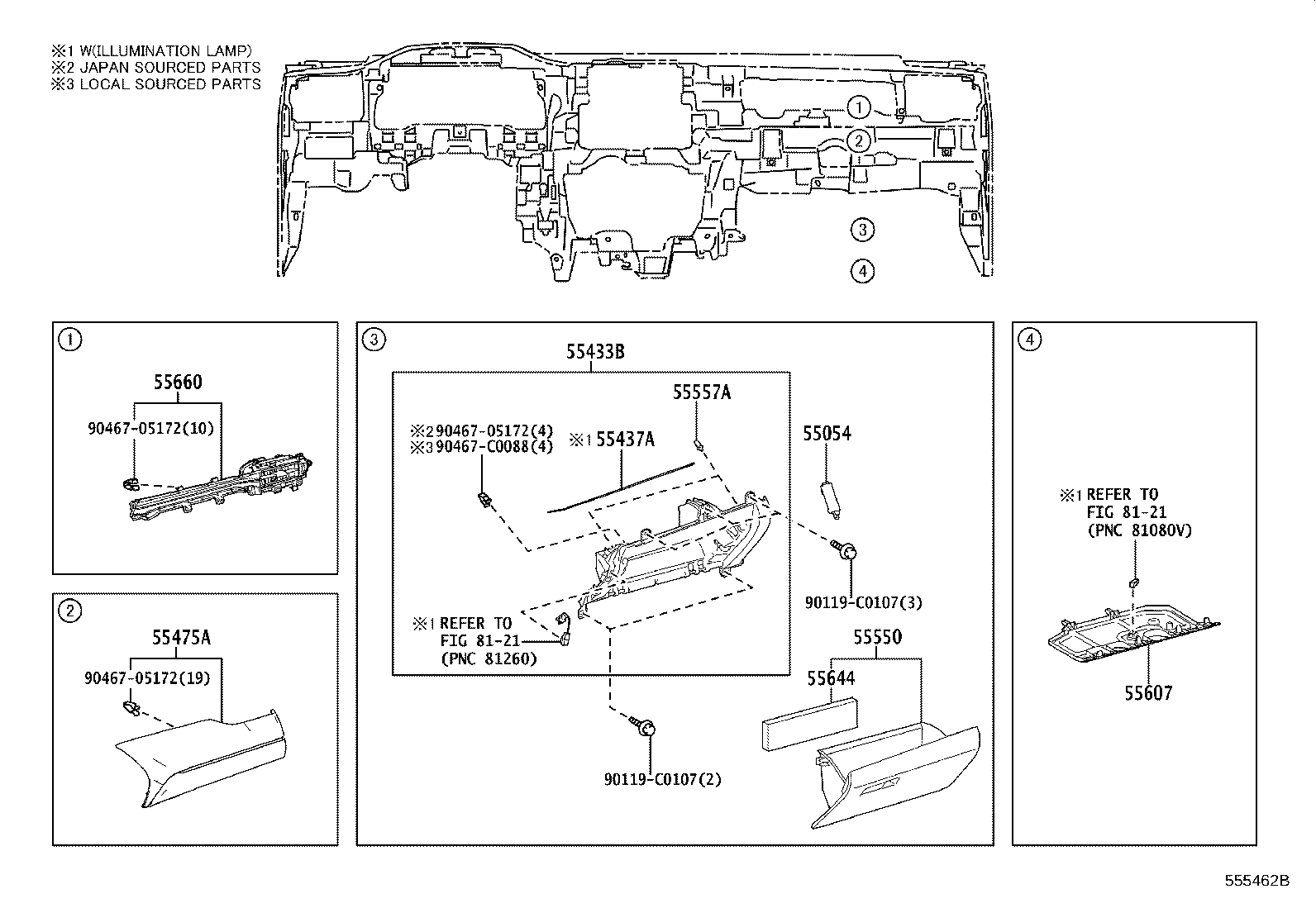

Exploded illustration 555462B 55607 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 (1 parts) 55054 — STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR (3 parts) 55550 — DOOR ASSY, GLOVE COMPARTMENT (2 parts) 55644 — PAD, INSTRUMENT PANEL UNDER SILENCER, NO.2 (1 parts) 55557A — CUSHION, GLOVE COMPARTMENT DOOR CHECK (1 parts) 55437A — RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 (1 parts) 8121 — not listed in this catalogue 8121 — not listed in this catalogue 55660 — REGISTER ASSY, INSTRUMENT PANEL, NO.2 (1 parts) 9046705172 — not listed in this catalogue 55475A — GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 (3 parts) 9046705172 — not listed in this catalogue 9046705172 — not listed in this catalogue 90467C0088 — not listed in this catalogue 90119C0107 — not listed in this catalogue 90119C0107 — not listed in this catalogue 55433B — PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 (2 parts)
555462B · 9 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
15 parts on this figure
Part number Description Fitment Price
55054 — Stopper Sub-assy, Glove Compartment Door
55054-02050 note Stopper Sub-assy, Glove Compartment Door
2022-10 → —
AXUH8#,MXUA8# —
55054-47010 Stopper Sub-assy, Glove Compartment Door
2022-03 → 2022-10 ended
AXUH8#,MXUA8# —
55054-47010 note Stopper Sub-assy, Glove Compartment Door
2022-10 → —
AXUH8#,MXUA8# —
55433B — Panel, Instrument Panel Finish, Lower NO.2
55433-0E160-C0 note Panel, Instrument Panel Finish, Lower NO.2
2022-03 → —
AXUH80,MXUA80 X —
55433-0E170-C0 note Panel, Instrument Panel Finish, Lower NO.2
2022-03 → —
AXUH8#,MXUA8# M,S —
55437A — Retainer, Instrument Panel Finish Panel, NO.1
55437-0E250 Retainer, Instrument Panel Finish Panel, NO.1
2022-03 → —
AXUH8#,MXUA8# M,S —
55475A — Garnish, Instrument Cluster Finish Panel, NO.2
55475-0E120-B0 note Garnish, Instrument Cluster Finish Panel, NO.2
2022-03 → —
AXUH8#,MXUA8# M,S —
55475-0E120-B1 note Garnish, Instrument Cluster Finish Panel, NO.2
2022-03 → —
AXUH8#,MXUA8# —
55475-0E120-B3 note Garnish, Instrument Cluster Finish Panel, NO.2
2022-03 → —
AXUH8#,MXUA8# M,S —
55550 — Door Assy, Glove Compartment
55550-0E050-C0 note Door Assy, Glove Compartment
2022-03 → —
AXUH80,MXUA80 X —
55550-0E050-C0 note Door Assy, Glove Compartment
2022-03 → —
AXUH8#,MXUA8# M,S —
55557A — Cushion, Glove Compartment Door Check
55557-10040 Cushion, Glove Compartment Door Check
2022-03 → —
AXUH8#,MXUA8# —
55607 — Cover Sub-assy, Instrument Panel Under, NO.2
55607-0R080 Cover Sub-assy, Instrument Panel Under, NO.2
2022-03 → —
AXUH8#,MXUA8# —
55644 — Pad, Instrument Panel Under Silencer, NO.2
55644-0E130 Pad, Instrument Panel Under Silencer, NO.2
2022-03 → —
AXUH8#,MXUA8# —
55660 — Register Assy, Instrument Panel, NO.2
55660-0E140 Register Assy, Instrument Panel, NO.2
2022-03 → —
AXUH8#,MXUA8# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
