Toyota Venza
2022-03 → present · chassis AXUH8#,MXUA8# · catalogue 52C310 · General
Supported model
Data version 2022-02

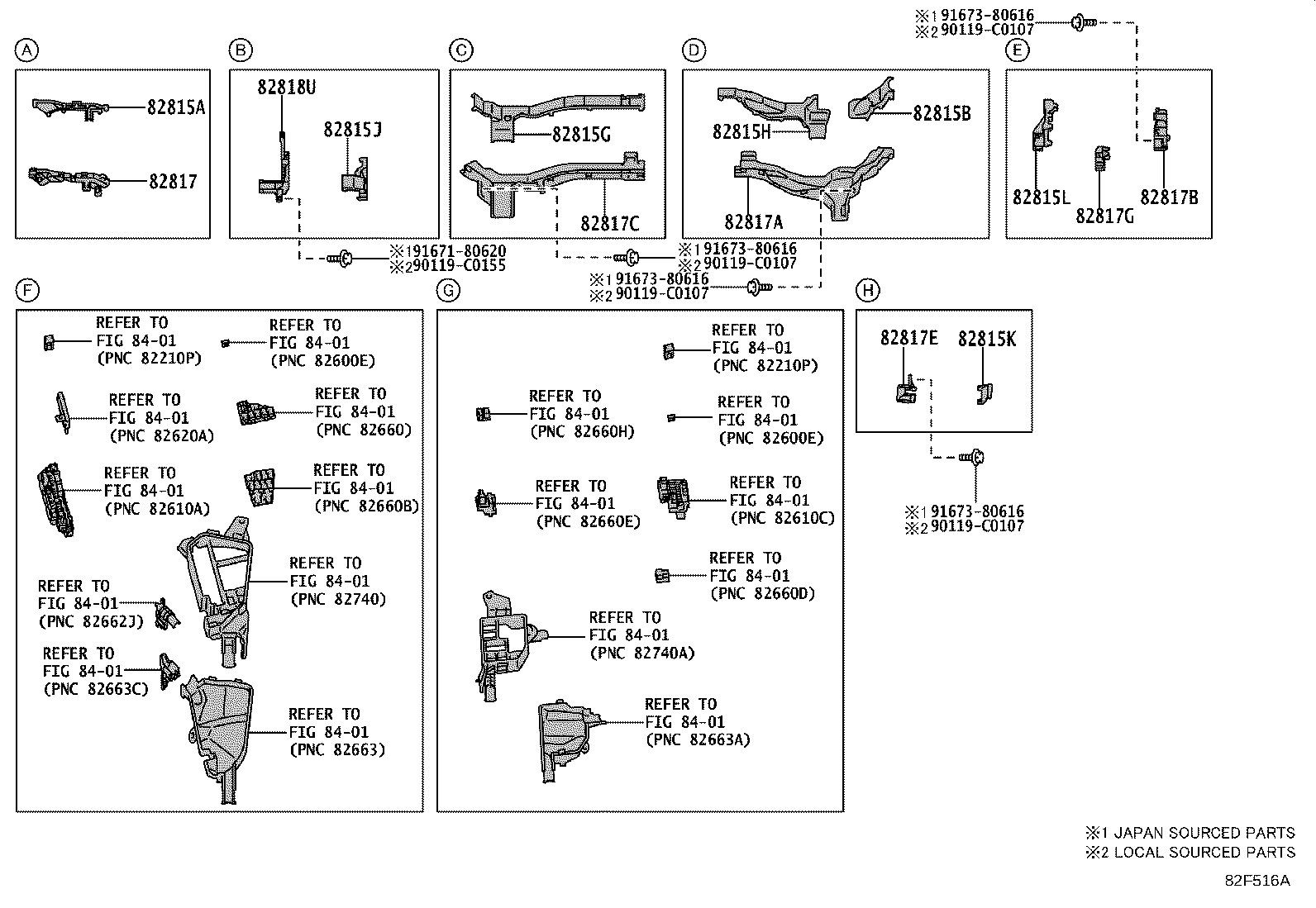

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82815A — Cover, Wiring Harness Protector | ||||
| 82815-42J80 |
Cover, Wiring Harness Protector
2023-03 → —
|
MXUA80 X | — | |
| 82815-42J80 |
Cover, Wiring Harness Protector
2022-03 → —
|
MXUA80 M;AXUH8#,MXUA85 | — | |
| 82815B — Cover, Wiring Harness Protector | ||||
| 82815-0EF30 |
Cover, Wiring Harness Protector
2022-03 → —
|
AXUH8# | — | |
| 82815-42190 |
Cover, Wiring Harness Protector
2022-03 → —
|
MXUA8# | — | |
| 82815G — Cover, Wiring Harness Protector NO.5 | ||||
| 82815-0R480 |
Cover, Wiring Harness Protector NO.5
2022-03 → 2023-04
ended
|
AXUH8#,MXUA8# | — | |
| 82815-42200 |
Cover, Wiring Harness Protector NO.5
2023-04 → 2024-06
ended
|
AXUH8#,MXUA8# | — | |
| 82815-42A80 |
Cover, Wiring Harness Protector NO.5
2024-06 → —
|
AXUH8#,MXUA8# | — | |
| 82815H — Cover, Wiring Harness Protector NO.6 | ||||
| 82815-0EF40 |
Cover, Wiring Harness Protector NO.6
2022-03 → —
|
AXUH8# | — | |
| 82815-0R490 |
Cover, Wiring Harness Protector NO.6
2022-03 → 2024-06
ended
|
MXUA8# | — | |
| 82815-42A90 |
Cover, Wiring Harness Protector NO.6
2024-06 → —
|
MXUA8# | — | |
| 82815J — Cover, Wiring Harness Protector, NO.7 | ||||
| 82815-42170 |
Cover, Wiring Harness Protector, NO.7
2022-03 → —
|
AXUH85 | — | |
| 82815-42240 |
Cover, Wiring Harness Protector, NO.7
2022-03 → —
|
MXUA8# | — | |
| 82815K — Cover, Wiring Harness Protector, NO.8 | ||||
| 82815-42570 |
Cover, Wiring Harness Protector, NO.8
2022-03 → —
|
AXUH8#,MXUA8# | — | |
| 82815L — Cover, Wiring Harness Protector, NO.9 | ||||
| 82815-42630 |
Cover, Wiring Harness Protector, NO.9
2022-03 → —
|
AXUH8# | — | |
| 82817 — Protector, Wiring Harness, NO.1 | ||||
| 82817-42L70 |
Protector, Wiring Harness, NO.1
2022-03 → 2023-04
ended
|
AXUH8#,MXUA8# | — | |
| 82817-42L70 |
Protector, Wiring Harness, NO.1
2023-04 → 2024-06
ended
|
AXUH8#,MXUA8# | — | |
| 82817-42L70 |
Protector, Wiring Harness, NO.1
2024-06 → —
|
AXUH8#,MXUA8# | — | |
| 82817A — Protector, Wiring Harness, NO.2 | ||||
| 82817-0EN00 |
Protector, Wiring Harness, NO.2
2022-03 → —
|
AXUH8# | — | |
| 82817-42B70 |
Protector, Wiring Harness, NO.2
2022-03 → —
|
MXUA8# | — | |
| 82817B — Protector, Wiring Harness, NO.3 | ||||
| 82817-42C20 |
Protector, Wiring Harness, NO.3
2022-03 → —
|
MXUA8# | — | |
| 82817-42G30 |
Protector, Wiring Harness, NO.3
2022-03 → —
|
AXUH8# | — | |
| 82817C — Protector, Wiring Harness, NO.4 | ||||
| 82817-0RB70 |
Protector, Wiring Harness, NO.4
2022-03 → 2023-04
ended
|
AXUH8#,MXUA8# | — | |
| 82817-42B80 |
Protector, Wiring Harness, NO.4
2023-04 → 2024-06
ended
|
AXUH8#,MXUA8# | — | |
| 82817-42M40 |
Protector, Wiring Harness, NO.4
2024-06 → —
|
AXUH8#,MXUA8# | — | |
| 82817E — Protector, Wiring Harness, NO.6 | ||||
| 82817-42F90 |
Protector, Wiring Harness, NO.6
2022-03 → —
|
AXUH8#,MXUA8# | — | |
| 82817G — Protector, Wiring Harness, NO.8 | ||||
| 82817-42N40 |
Protector, Wiring Harness, NO.8
2022-03 → —
|
AXUH8# | — | |
| 82818U — Protector, Wiring Harness, NO.17 | ||||
| 82817-42B50 |
Protector, Wiring Harness, NO.17
2022-03 → —
|
AXUH85 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
