Toyota Venza
2022-03 → present · chassis AXUH8#,MXUA8# · catalogue 52C310 · General
Supported model
Data version 2022-02

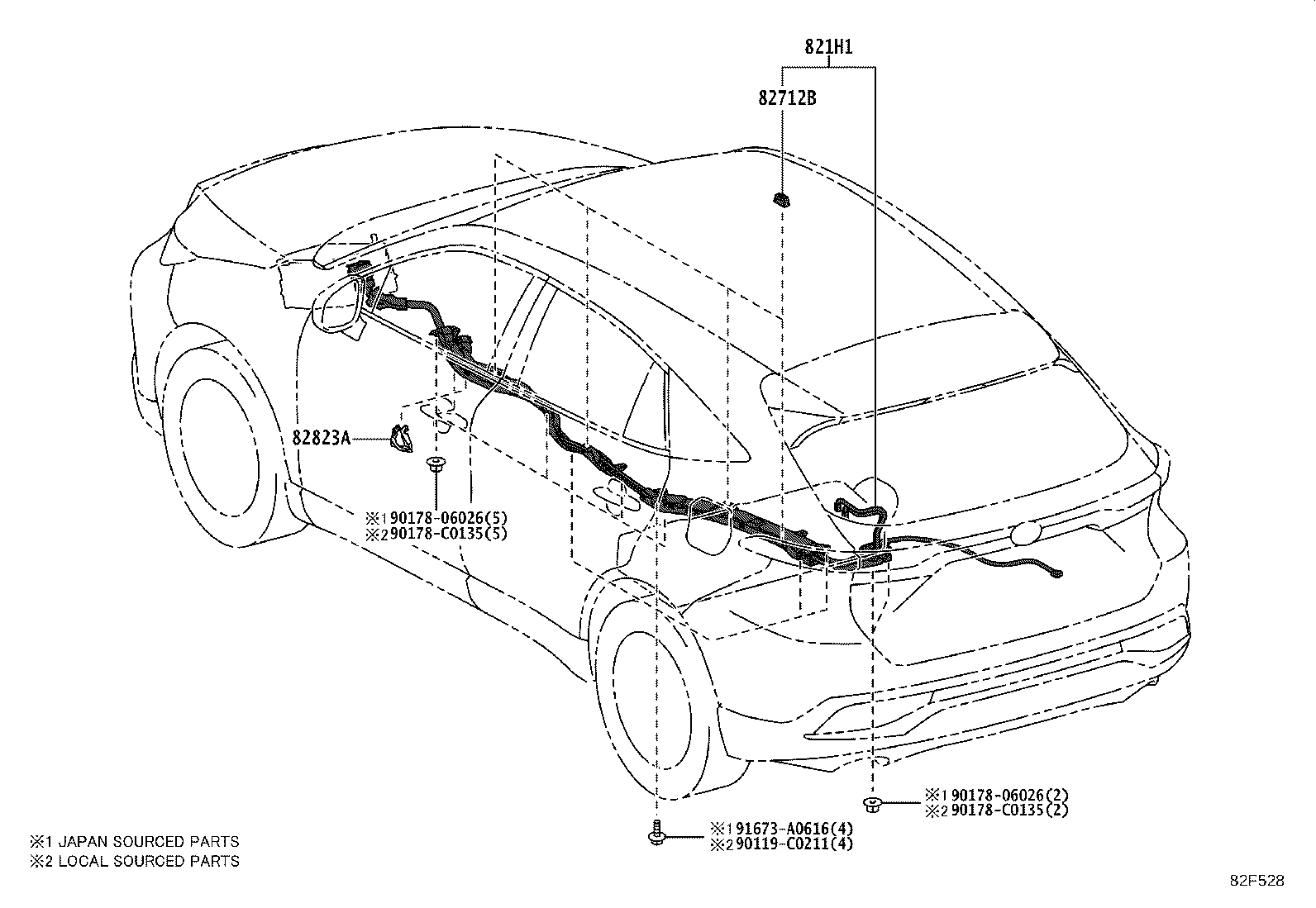

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 821H1 — Wire, Floor Under | ||||
| 821H1-0R040 |
Wire, Floor Under
2022-03 → —
|
AXUH80 | — | |
| 821H1-0R050 |
Wire, Floor Under
2022-03 → 2023-04
ended
|
AXUH85 | — | |
| 821H1-0R051 |
Wire, Floor Under
2023-04 → 2023-06
ended
|
AXUH85 | — | |
| 821H1-0R052 |
Wire, Floor Under
2023-07 → 2023-12
ended
|
AXUH85 | — | |
| 821H1-0R053 |
Wire, Floor Under
2024-01 → —
|
AXUH85 | — | |
| 82712B — Support, Wiring Harness | ||||
| 82712-33170 |
Support, Wiring Harness
2022-03 → —
|
AXUH8# | — | |
| 82823A — Cap, Terminal, NO.2 | ||||
| 82823-0R040 |
Cap, Terminal, NO.2
2022-03 → —
|
AXUH8# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
