Toyota Venza
2022-03 → present · chassis AXUH8#,MXUA8# · catalogue 52C310 · General
Supported model
Data version 2022-02

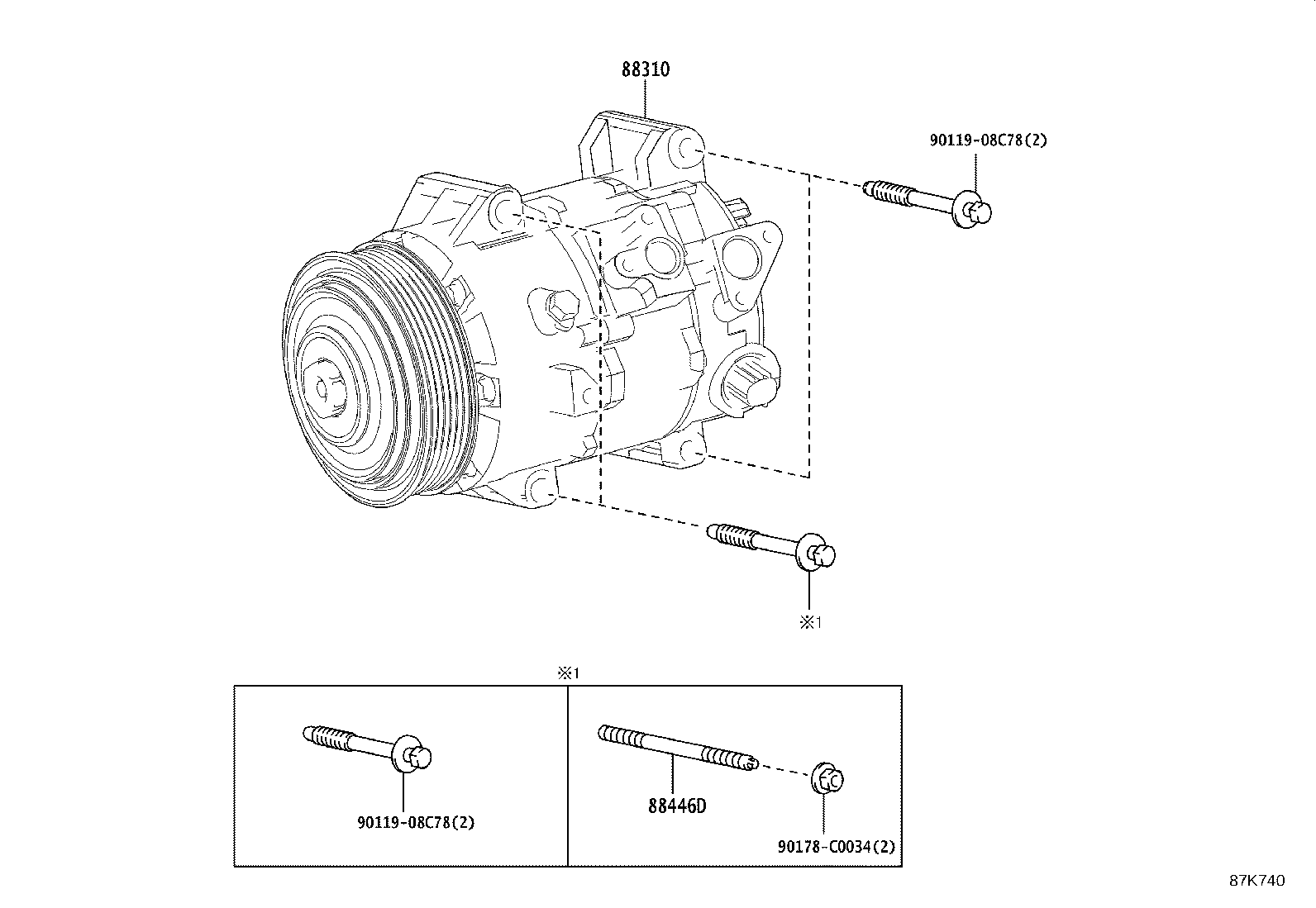

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88310 — Compressor Assy, W/Pulley | ||||
| 88310-06670 |
Compressor Assy, W/Pulley
2022-03 → —
|
MXUA8# | — | |
| 88446D — Bolt, Cooler | ||||
| 88446-42030 |
Bolt, Cooler
2022-03 → —
|
MXUA8# | — | |
| 88899-44010 |
Bolt, Cooler
2022-03 → 2023-08
ended
|
AXUH8# | — | |
| 88899-44010 note |
Bolt, Cooler
2023-08 → —
|
AXUH8# | — | |
| 90126-C0025 note |
Bolt, Cooler
2023-08 → —
|
AXUH8# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
