Toyota Venza

2022-03 → present · chassis AXUH8#,MXUA8# · catalogue 52C310 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

8 part groups · 3 illustrations

Illustrations

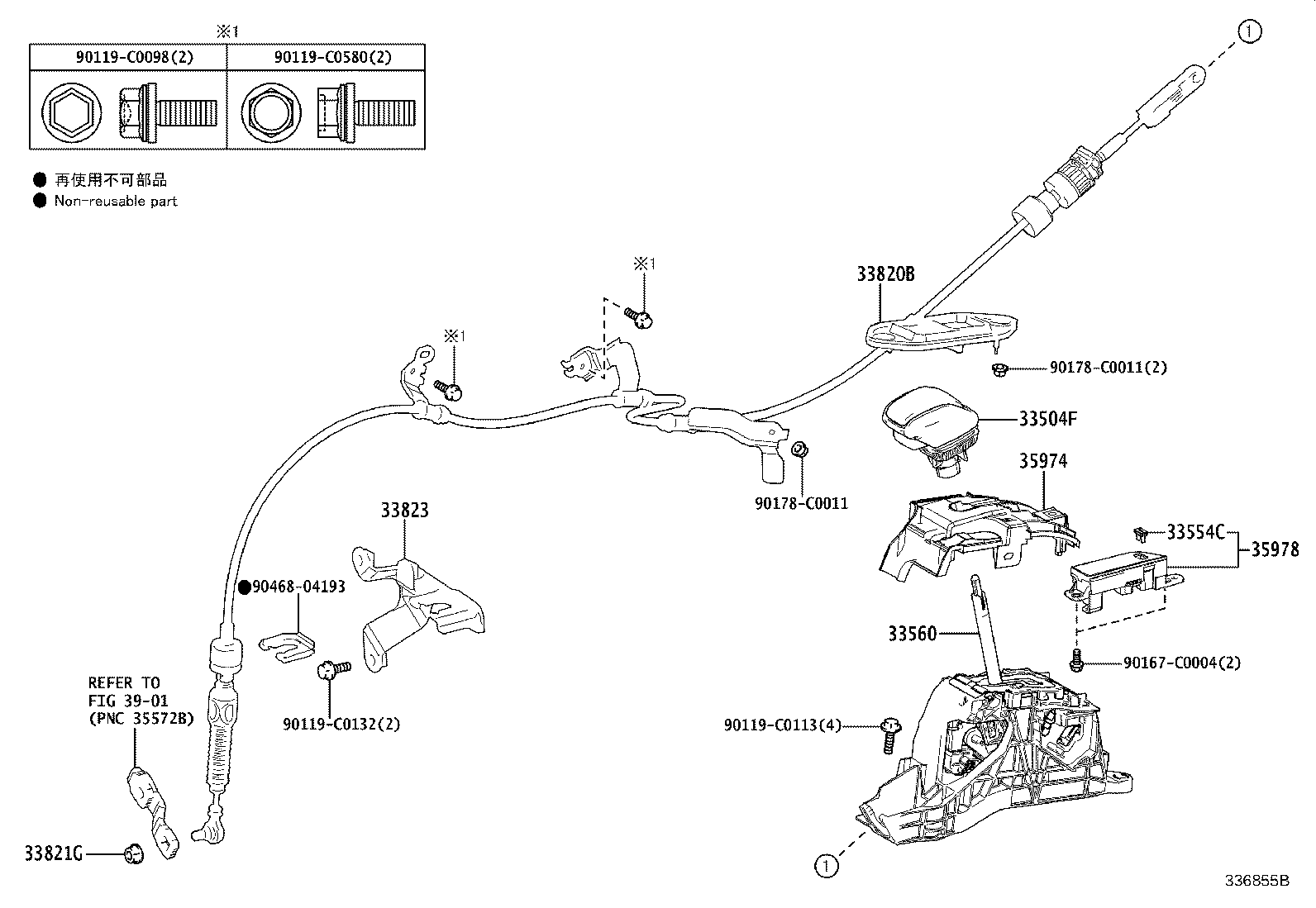

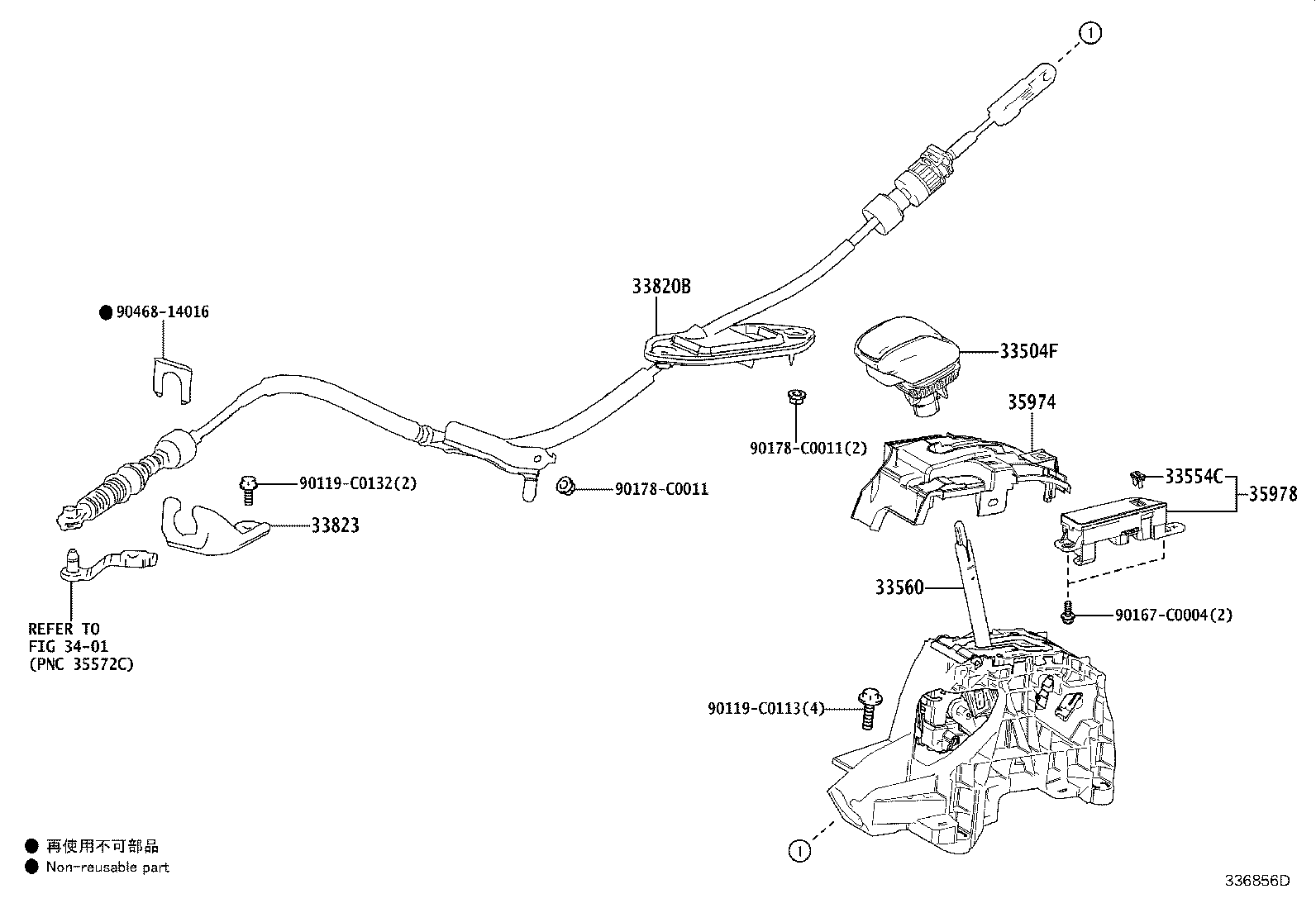

Figure 336854B 336854B 2022-03 → — Figure 336855B 336855B 2022-03 → — Figure 336856D 336856D 2022-03 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33554C Cover, Shift Lock Release Button
33560 Unit Assy, Shift Lock Control
33820B Cable Assy, Transmission Control
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
35974 Housing, Position Indicator, Lower
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
