Toyota Venza

2022-03 → present · chassis AXUH8#,MXUA8# · catalogue 52C310 · General

Supported model Data version 2022-02

Rear Axle Shaft & Hub

34 part groups · 3 illustrations

PNC	Description

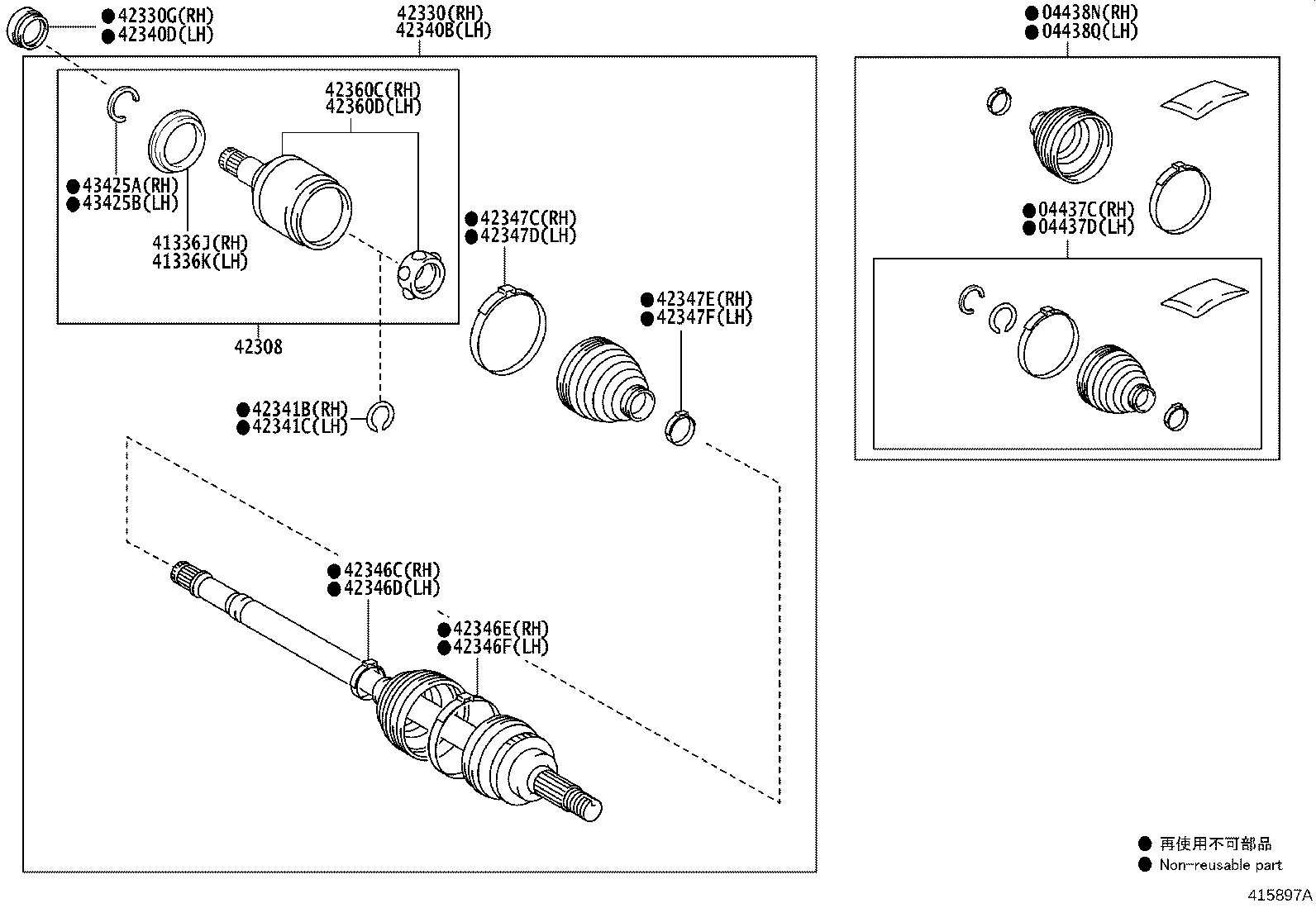

04437C	Boot Kit, Rear Drive Shaft Inboard Joint, RH
04437D	Boot Kit, Rear Drive Shaft Inboard Joint, LH
04438N	Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH
04438Q	Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
41336J	Cover, Rear Drive Shaft Dust, RH
41336K	Cover, Rear Drive Shaft Dust, LH
42308	Joint Set, Rear Axle Inboard

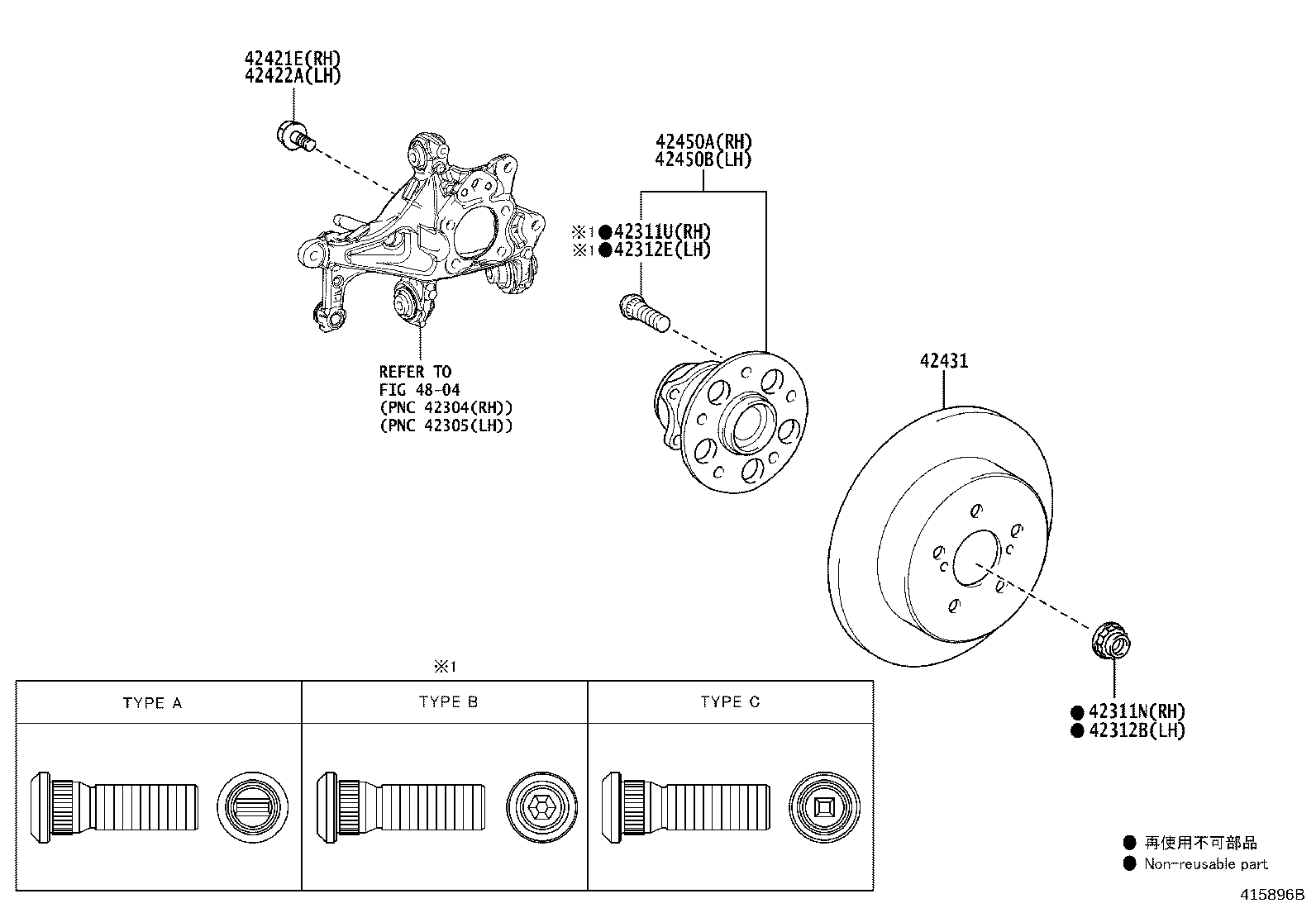

42311N	Nut(FOR REAR AXLE SHAFT RH)
42311U	Bolt, Hub(FOR REAR AXLE RH)
42312B	Nut(FOR REAR AXLE SHAFT LH)
42312E	Bolt, Hub(FOR REAR AXLE LH)
42330	Shaft Assy, Rear Drive, RH
42330G	Oil Seal, Rear Drive Shaft, RH
42340B	Shaft Assy, Rear Drive, LH
42340D	Oil Seal, Rear Drive Shaft, LH
42341B	Ring, Snap (FOR REAR DRIVE SHAFT RH)
42341C	Ring, Snap (FOR REAR DRIVE SHAFT LH)
42346C	Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42346D	Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42346E	Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42346F	Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42347C	Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347D	Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42347E	Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347F	Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
42360C	Joint Assy, Rear Drive Shaft Inboard, RH
42360D	Joint Assy, Rear Drive Shaft Inboard, LH
42421E	Bolt (FOR REAR AXLE BEARING CASE RH)
42422A	Bolt (FOR REAR AXLE BEARING CASE LH)
42431	Disc, Rear
42450A	Hub & Bearing Assy, Rear Axle, RH
42450B	Hub & Bearing Assy, Rear Axle, LH
43425A	Ring, Drive Shaft Snap, RH
43425B	Ring, Drive Shaft Snap, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
