Toyota Venza

2022-03 → present · chassis AXUH8#,MXUA8# · catalogue 52C310 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

15 part groups · 3 illustrations

Illustrations

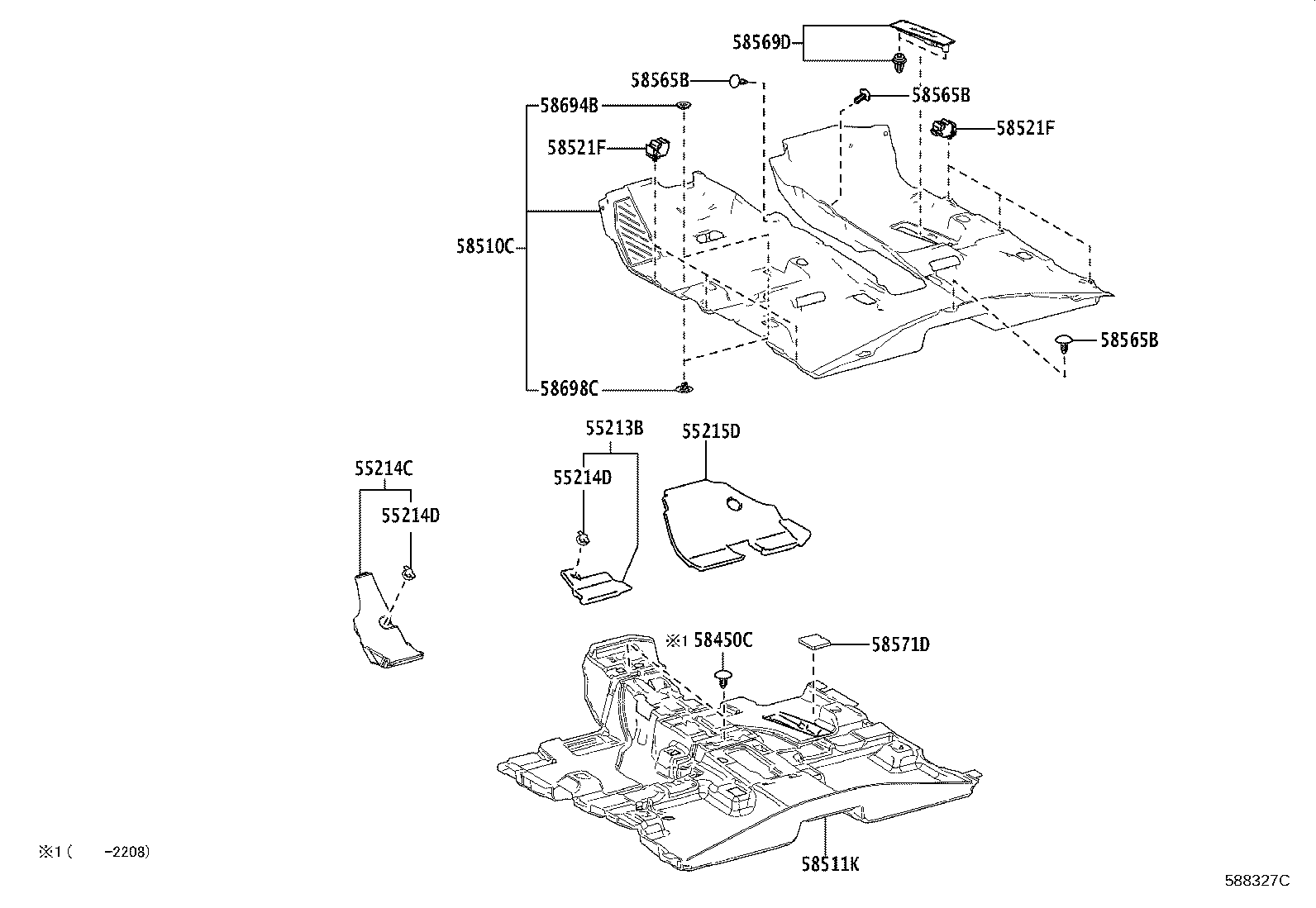

Figure 588326C 588326C 2022-03 → — Figure 588327C 588327C 2022-03 → — Figure 588328 588328 2022-03 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55214D Clip(FOR DASH PANEL INSULATOR PAD)
55215D Pad, Dash Panel Insulator, NO.3
58450C Clip
58510C Carpet Assy, Front Floor, Front
58510H Mat Assy, Floor
58511K Mat, Floor, NO.1
58512J Mat, Floor, NO.2
58521F Hook, Floor Carpet
58565B Clip
58569D Cover, Front Floor Caution Plate
58571D Mat, Rear Floor, Front RH
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
