Toyota Venza
2022-03 → present · chassis AXUH8#,MXUA8# · catalogue 52C310 · General
Supported model
Data version 2022-02

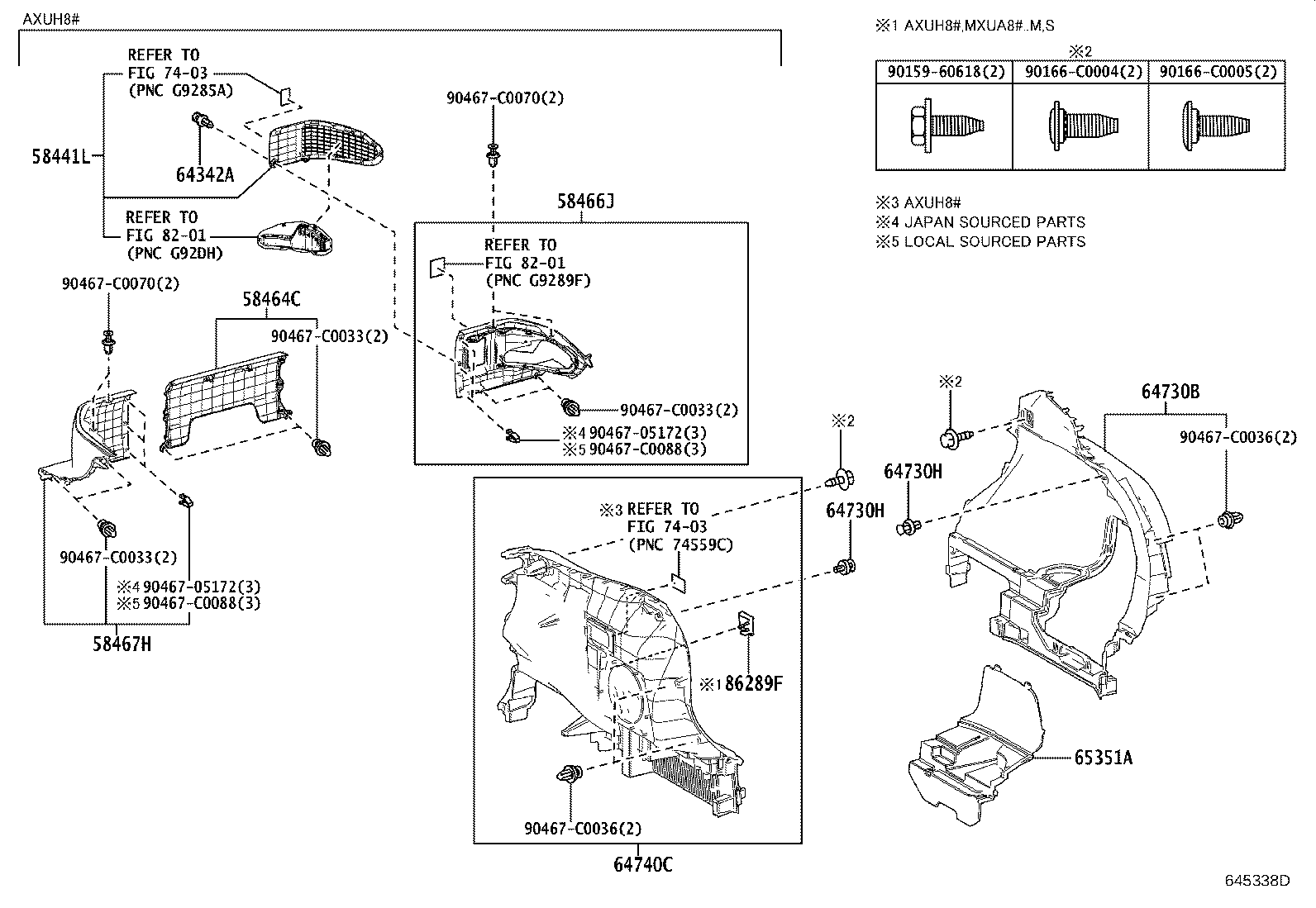

Deck Board & Deck Trim Cover
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387B | Plate, Rear Floor Finish |
| 58387F | Clip, Rear Floor Finish Plate |
| 58410B | Board Assy, Deck |
| 58416K | Board, Rear Floor, NO.2 |
| 58417 | Board, Rear Floor, NO.3 |
| 58441L | Cover, Battery Service Hole |
| 58464C | Board, Battery Service Cover, NO.1 |
| 58466J | Board, Battery Service Cover, NO.2 |
| 58467H | Board, Battery Service Cover, NO.3 |
| 58577E | Plate, Rear Floor Mat Support Side, NO.1 |
| 64342A | Clip |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730H | Clip(FOR DECK TRIM SIDE PANEL) |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64779 | Tray, Spare Wheel Cover |
| 65351A | Cover, Battery Hole |
| 86289F | Plate, Speaker Grille |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
