Toyota Venza

2022-03 → present · chassis AXUH8#,MXUA8# · catalogue 52C310 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

25 part groups · 2 illustrations

Illustrations

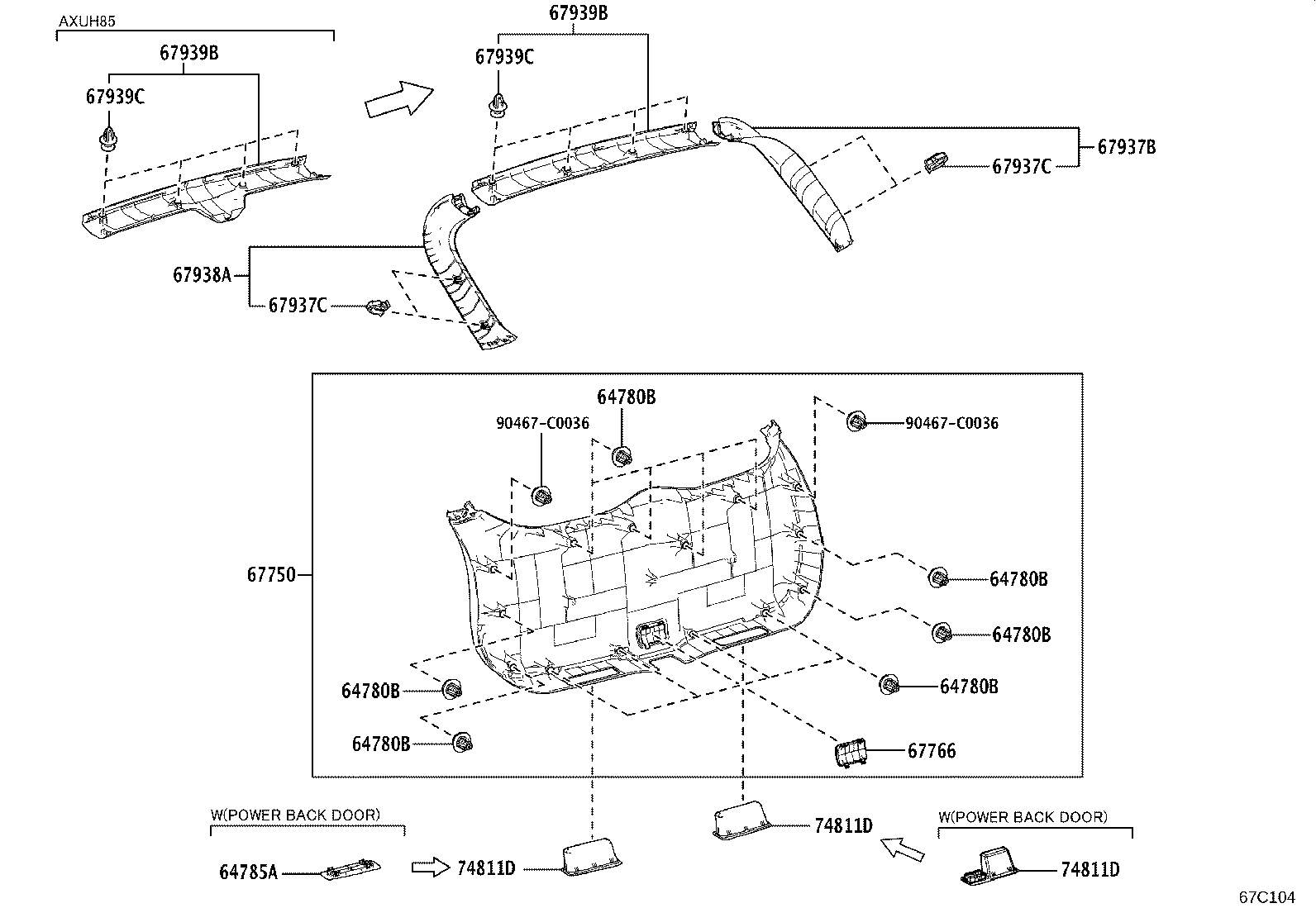

Figure 67C103A 67C103A 2022-03 → — Figure 67C104 67C104 2022-03 → —

Part groups

PNCDescription
62785F Spacer, Back Door Glass
62785Q Spacer, Quarter Window Glass, NO.2
64780B Clip(FOR BACK DOOR TRIM PANEL)
64785A Base, Back Door Trim
64818B Spacer, Back Door Glass, NO.1
64819B Spacer, Back Window Glass, NO.2
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67281G Stopper, Back Door, Lower RH
67282F Stopper, Back Door, Lwr LH
67293A Cushion, Back Door Stopper
67294D Cushion, Back Door Stopper, LH
67372A Weight, Back Door
67750 Board Assy, Back Door Trim
67766 Cover, Back Door Service Hole, NO.2
67837N Seal, Back Door Dust Proof
67881A Weatherstrip, Back Door
67937B Garnish, Back Door Side, RH
67937C Clip(FOR BACK DOOR SIDE GARNISH)
67938A Garnish, Back Door Side, LH
67939B Garnish, Back Door, Center
67939C Clip(FOR BACK DOOR CENTER GARNISH)
68131 Glass, Back Door
74811D Handle, Door Pull
75575D Moulding, Back Window, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
