Toyota Venza
2022-03 → present · chassis AXUH8#,MXUA8# · catalogue 52C310 · General
Supported model
Data version 2022-02
Rear Seat & Seat Track
38 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

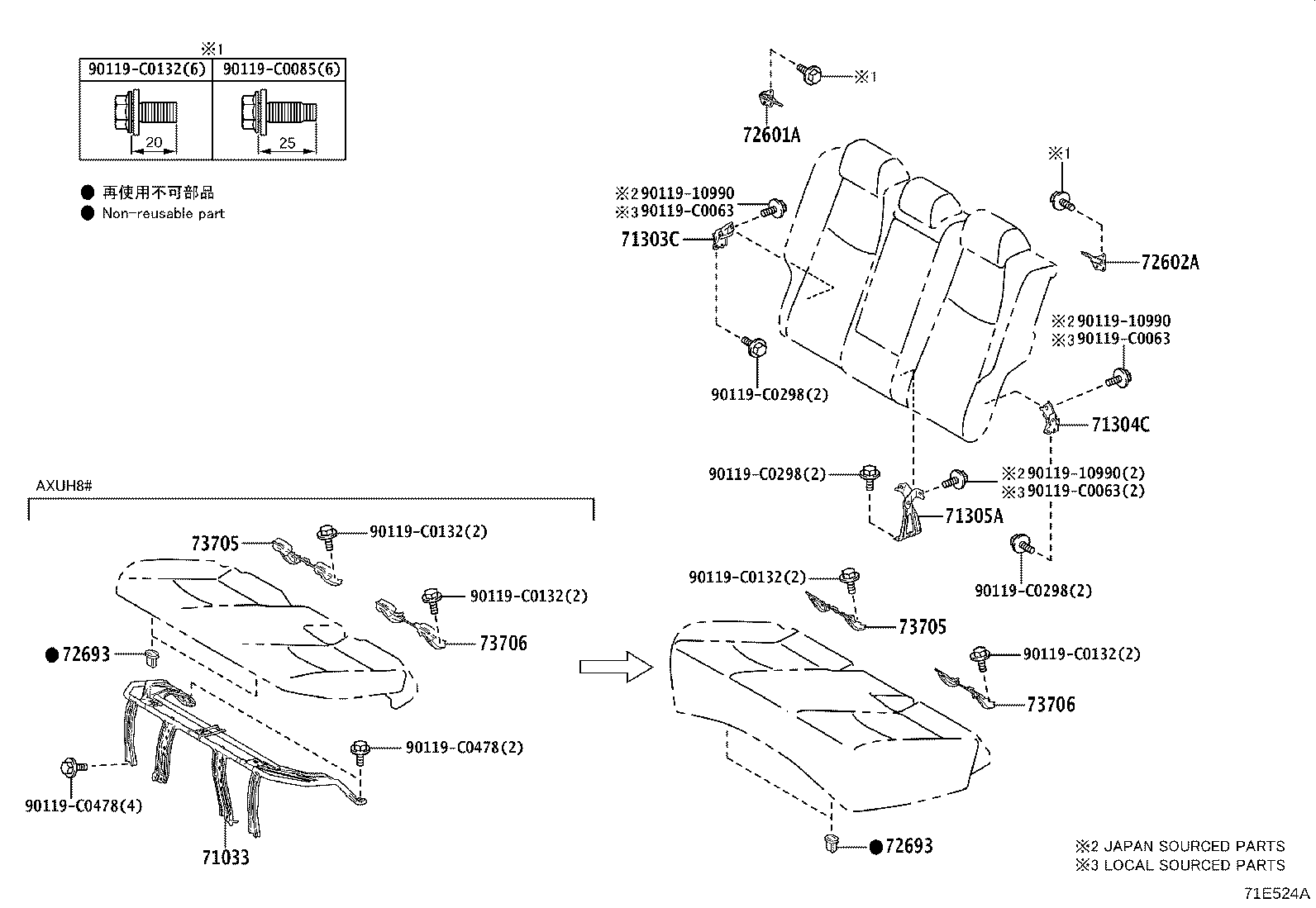

| 71033 | Leg Sub-assy, Rear Seat Cushion |

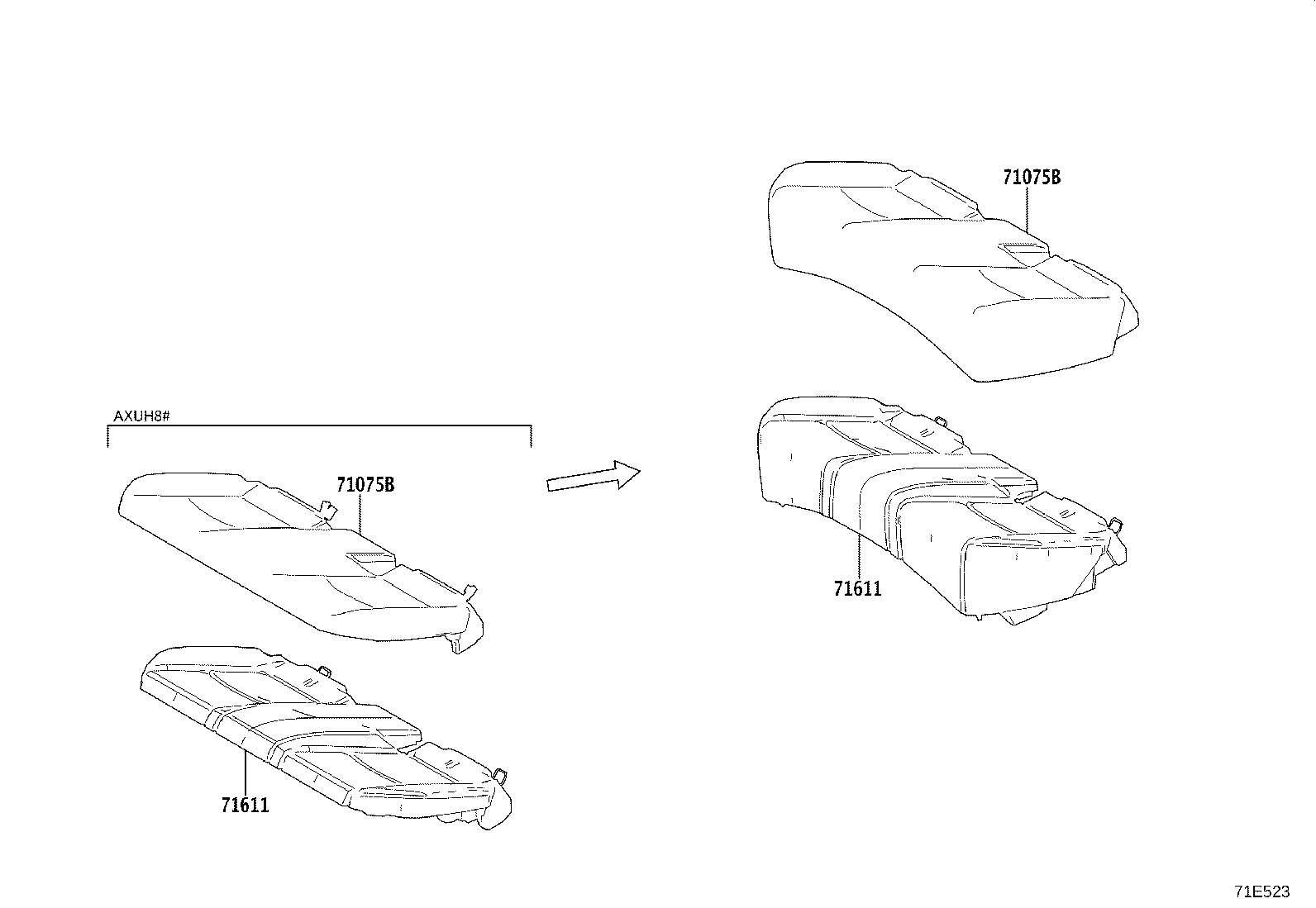

| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71303C | Hinge Sub-assy, Rear Seatback, RH |
| 71304C | Hinge Sub-assy, Rear Seatback, LH |
| 71305A | Hinge Sub-assy, Rear Seatback, Center |
| 71480S | Back Assy, Rear Seat, RH (FOR SEPARATE TYPE) |
| 71490S | Back Assy, Rear Seat, LH (FOR SEPARATE TYPE) |
| 71611 | Pad, Rear Seat Cushion |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71701C | Board Sub-assy, Rear Seatback, RH |
| 71702B | Board Sub-assy, Rear Seatback, LH |
| 71769A | Clip, Rear Seatback Board |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71956B | Support, Rear Seat Headrest |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72083A | Pad Sub-assy, Rear Seat Center Armrest |
| 72087A | Cover Sub-assy, Rear Seat Center Armrest |
| 72601A | Striker Sub-assy, Rear Seatback Look, RH |
| 72602A | Striker Sub-assy, Rear Seatback Lock, LH |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72667A | Bezel, Rear Seatback Lock, Upper RH |
| 72667B | Bezel, Rear Seatback Lock, Upper LH |
| 72668E | Bezel, Rear Seatback Lock, Lower RH |
| 72668F | Bezel, Rear Seatback Lock, Lower LH |
| 72668L | Bezel, Rear Seatback Lock, Lower RH NO.2 |
| 72668M | Bezel, Rear Seatback Lock, Lower LH NO.2 |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72806D | Holder Sub-assy, Rear Seat Center Armrest Cup |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72839 | Shim, Rear Seat Armrest Hinge |
| 72869 | Cover, Center Armrest Hinge, LH |
| 73705 | Bracket Sub-assy, Child Restraint Seat Anchor, RH |
| 73706 | Bracket Sub-assy, Child Restraint Seat Anchor, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
