Toyota Venza
2022-03 → present · chassis AXUH8#,MXUA8# · catalogue 52C310 · General
Supported model
Data version 2022-02

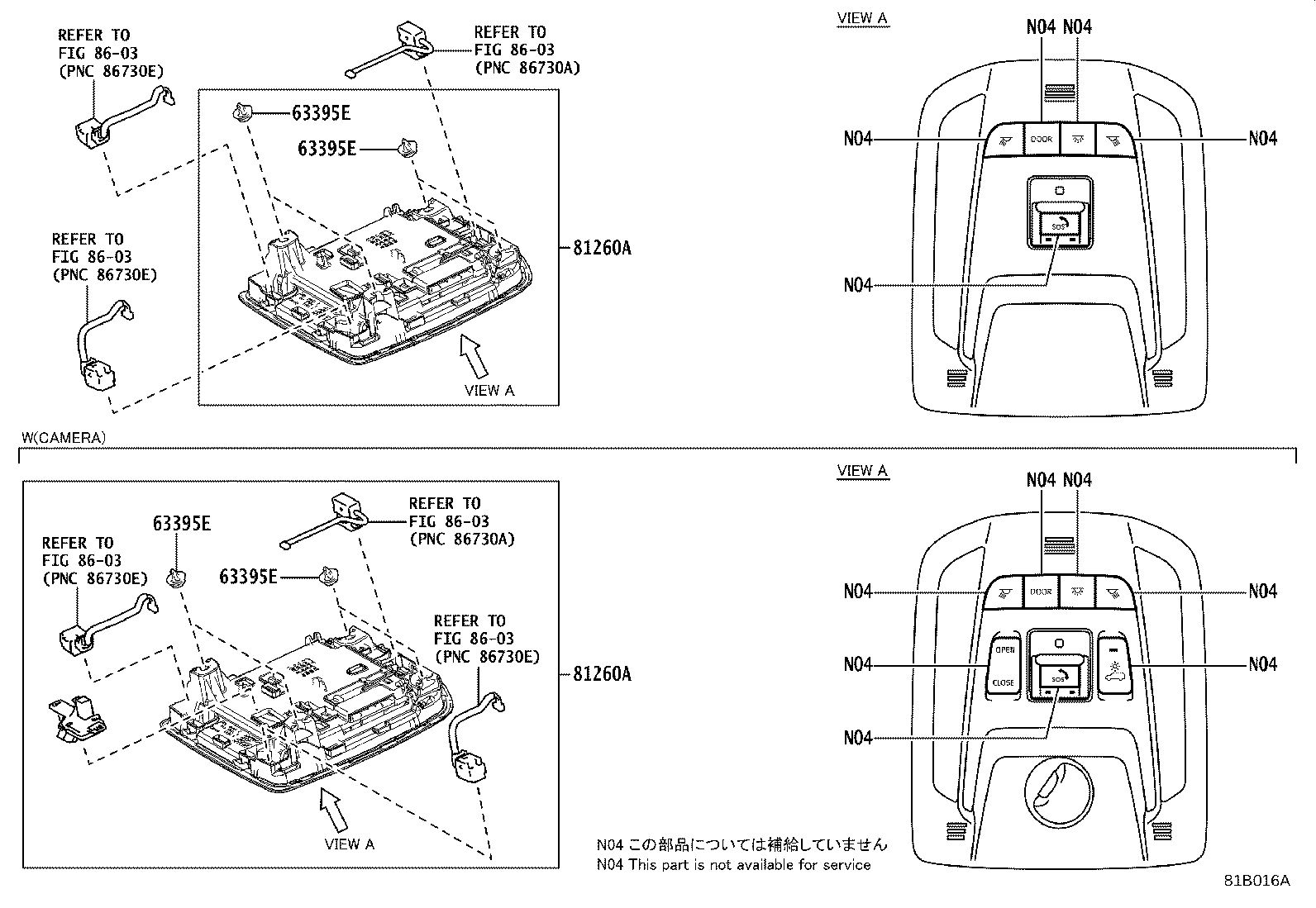

Interior Lamp
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63395E | Clip(FOR MAP LAMP) |
| 81080K | Lamp Assy, Console Box Illumination |
| 81080N | Lamp Assy, Interior Illumination, NO.1 |
| 81080V | Lamp Assy, Interior Illumination, NO.2 |
| 81080W | Lamp Assy, Interior Illumination, NO.3 |
| 81230 | Lamp Assy, Courtesy |
| 81240 | Lamp Assy, Room, NO.1 |
| 81260 | Lamp Assy, Glove Box |
| 81260A | Lamp Assy, Map |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81340 | Lamp Assy, Vanity |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
