Toyota Venza
2022-03 → present · chassis AXUH8#,MXUA8# · catalogue 52C310 · General
Supported model
Data version 2022-02
Battery & Battery Cable
30 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

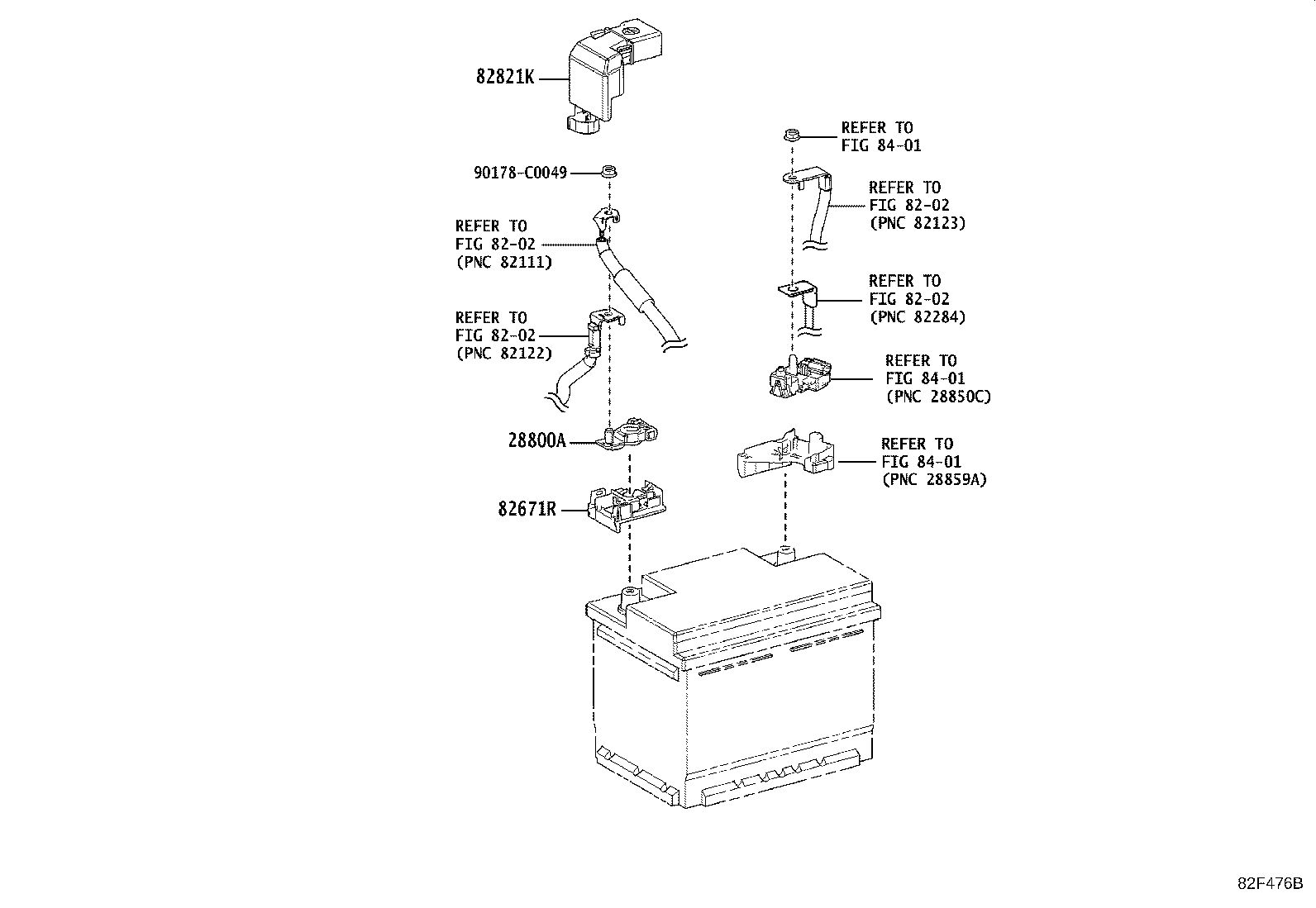

| 28800A | Terminal, Battery Positive |
| 28800M | Terminal, Battery Positive |
| 28885B | Hose, Battery |
| 82621B | Cover, Fusible Link |
| 82670J | Block Assy, Junction |
| 82671R | Stopper, Battery Terminal |
| 82818P | Protector, Wiring Harness |
| 82821K | Cover, Connector |
| 89890A | Computer Assy, Battery |
| G3830A | Plug Assy, Electric Vehicle Battery |
| G3834 | Grip, Service Plug |
| G920R | Shield Sub-assy, Hybrid Battery, NO.2 |

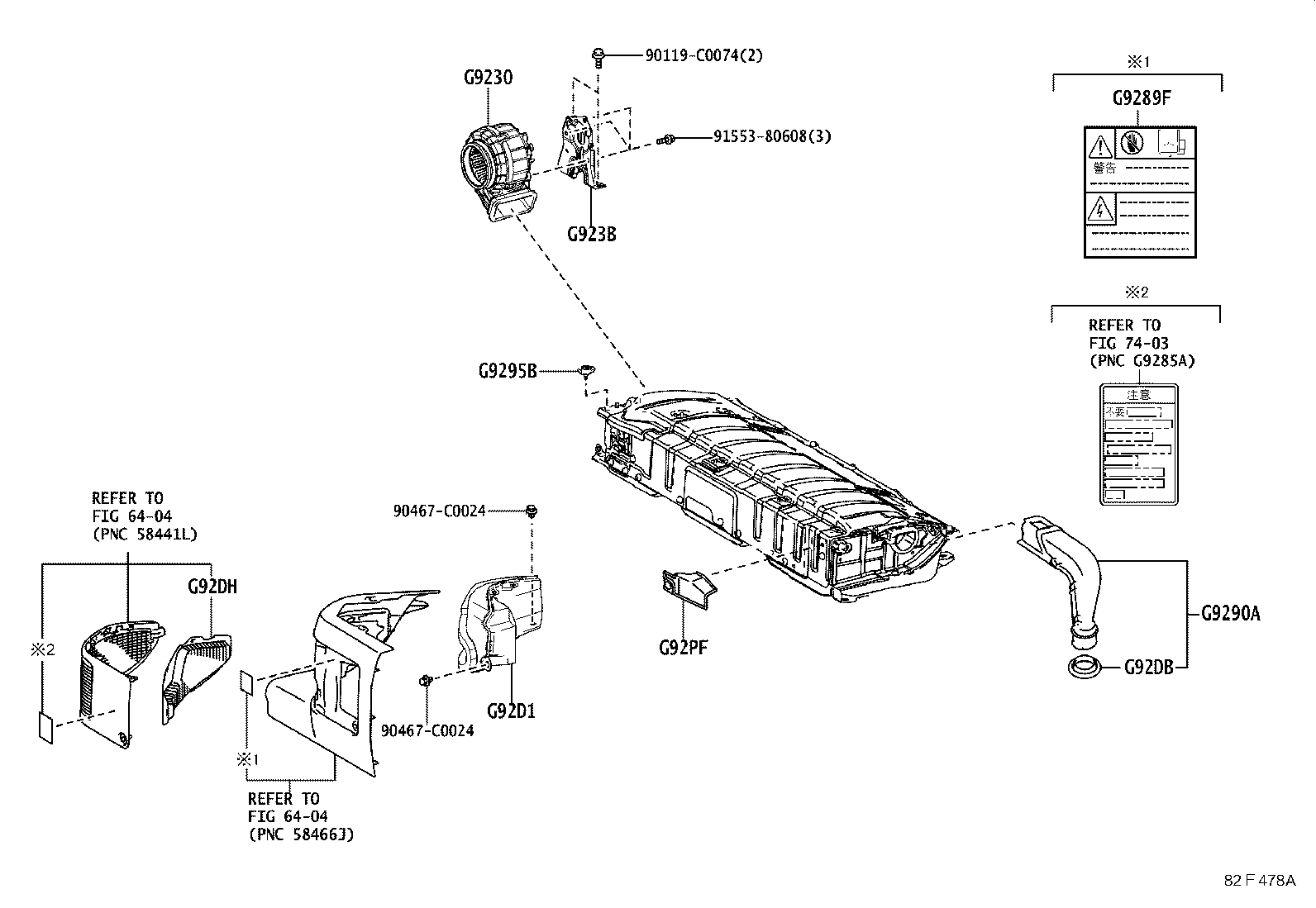

| G9230 | Blower Assy, Battery Cooling |
| G923B | Bracket, Battery Cooling Blower |
| G9289F | Label, Battery Caution, NO.3 |
| G9290A | Hose Assy, Hybrid Battery |
| G9295B | Striker, Battery Cover Lock |
| G929A | Hose, HV Battery, NO.1 |
| G92D1 | Duct, Hybrid Battery Intake, NO.1 |
| G92DB | Seal, Hybrid Battery, NO.1 |
| G92DH | Filter, HV Battery Intake, NO.1 |
| G92E1 | Duct, HV Battery Cover Intake, NO.1 |
| G92N4A | Panel, HV Battery RH Cover, NO.1 |
| G92PF | Protector, HV Battery, NO.4 |
| G92Z0 | Block Assy, HV Battery Junction |
| G92Z2 | Block, Hybrid Battery Terminal |
| G9508 | Stack Sub-assy, HV Supply, NO.1 |
| G9509 | Stack Sub-assy, HV Supply, NO.2 |

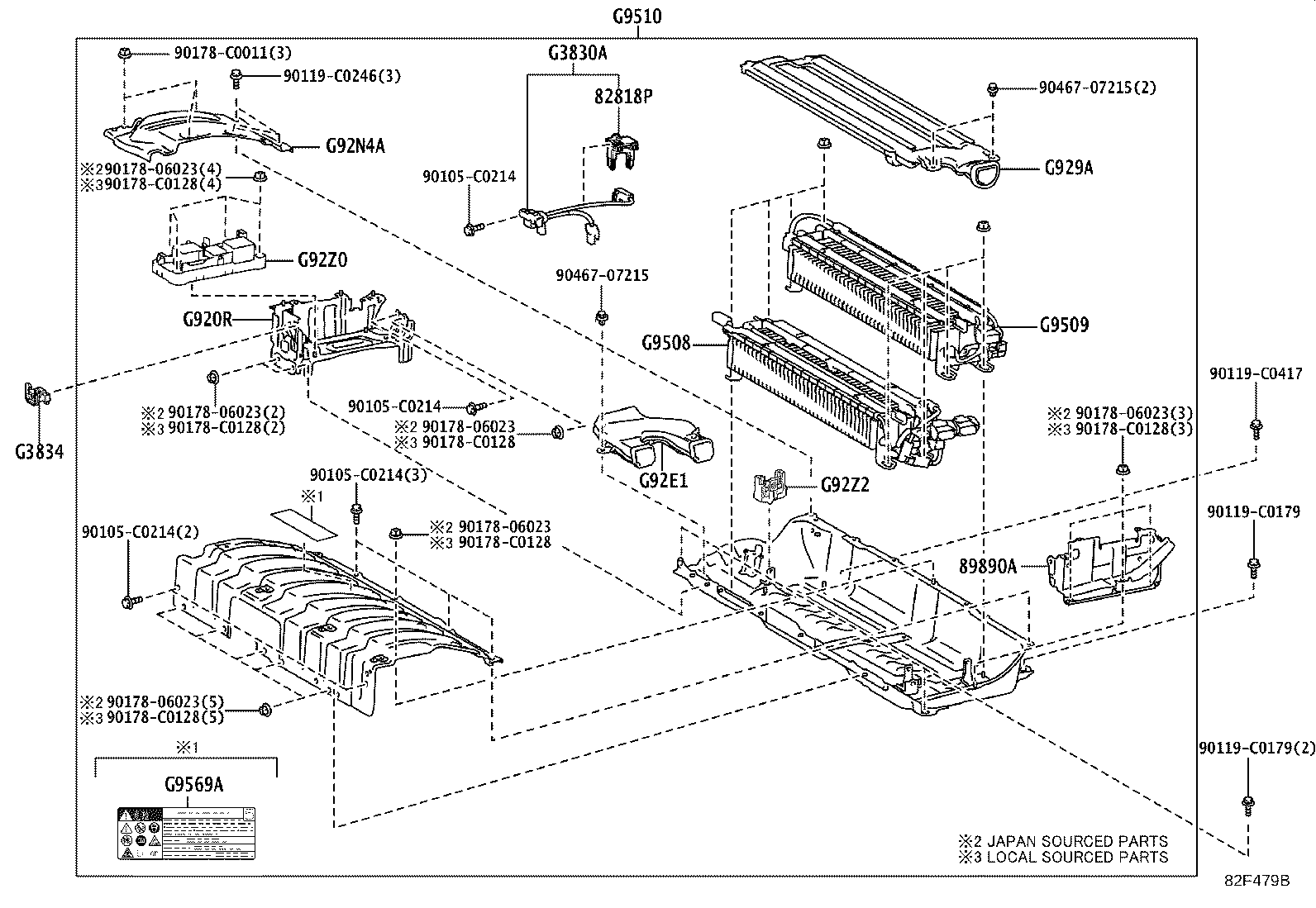

| G9510 | Battery Assy, HV Supply |
| G9569A | Label, Lithium Ion Battery Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
