Toyota Venza

2022-03 → present · chassis AXUH8#,MXUA8# · catalogue 52C310 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

15 part groups · 2 illustrations

Illustrations

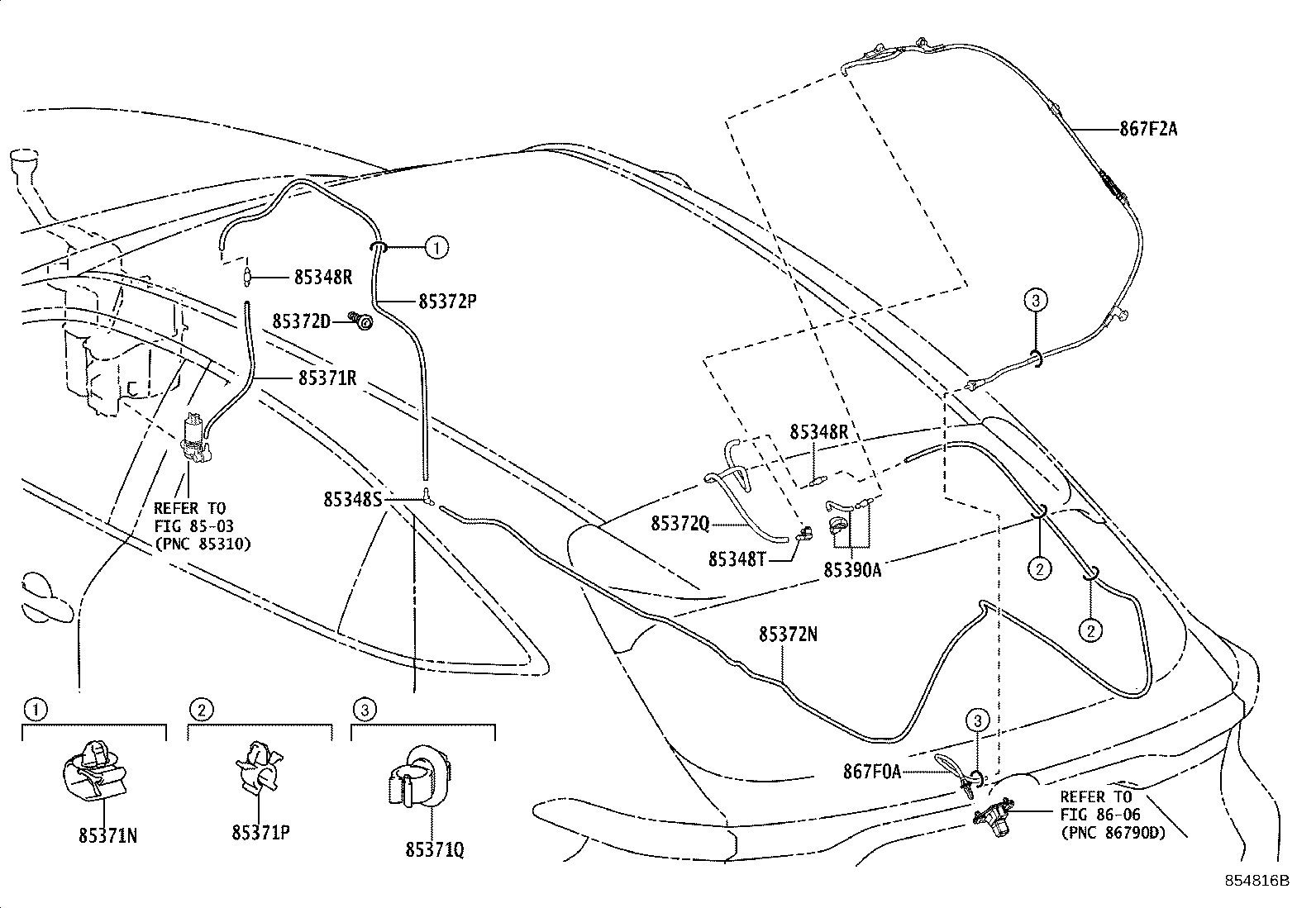

Figure 854815A 854815A 2022-03 → — Figure 854816B 854816B 2022-03 → —

Part groups

PNCDescription
85348R Joint, Rear Washer Hose, NO.1
85348S Joint, Rear Washer Elbow, NO.1
85348T Joint, Rear Washer Hose, NO.2
85371N Clamp, Rear Washer Hose
85371P Clamp, Rear Washer Hose, NO.2
85371Q Clamp, Rear Washer Hose, NO.3
85371R Hose, Rear Washer (FROM MOTOR TO JOINT)
85372D Grommet, Rear Washer Hose
85372N Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
85372P Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
85372Q Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
85379C Grommet, Rear Washer Hose NO.1
85390A Nozzle & Hose Assy, RR Washer
867F0A Nozzle Assy, Camera Cleaner, NO.1
867F2A Hose Assy, Camera Cleaner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
