Toyota C-hr(CHINA)
2020-05 → present · chassis KPX10 · catalogue 530310 · General
Supported model
Data version 2020-03

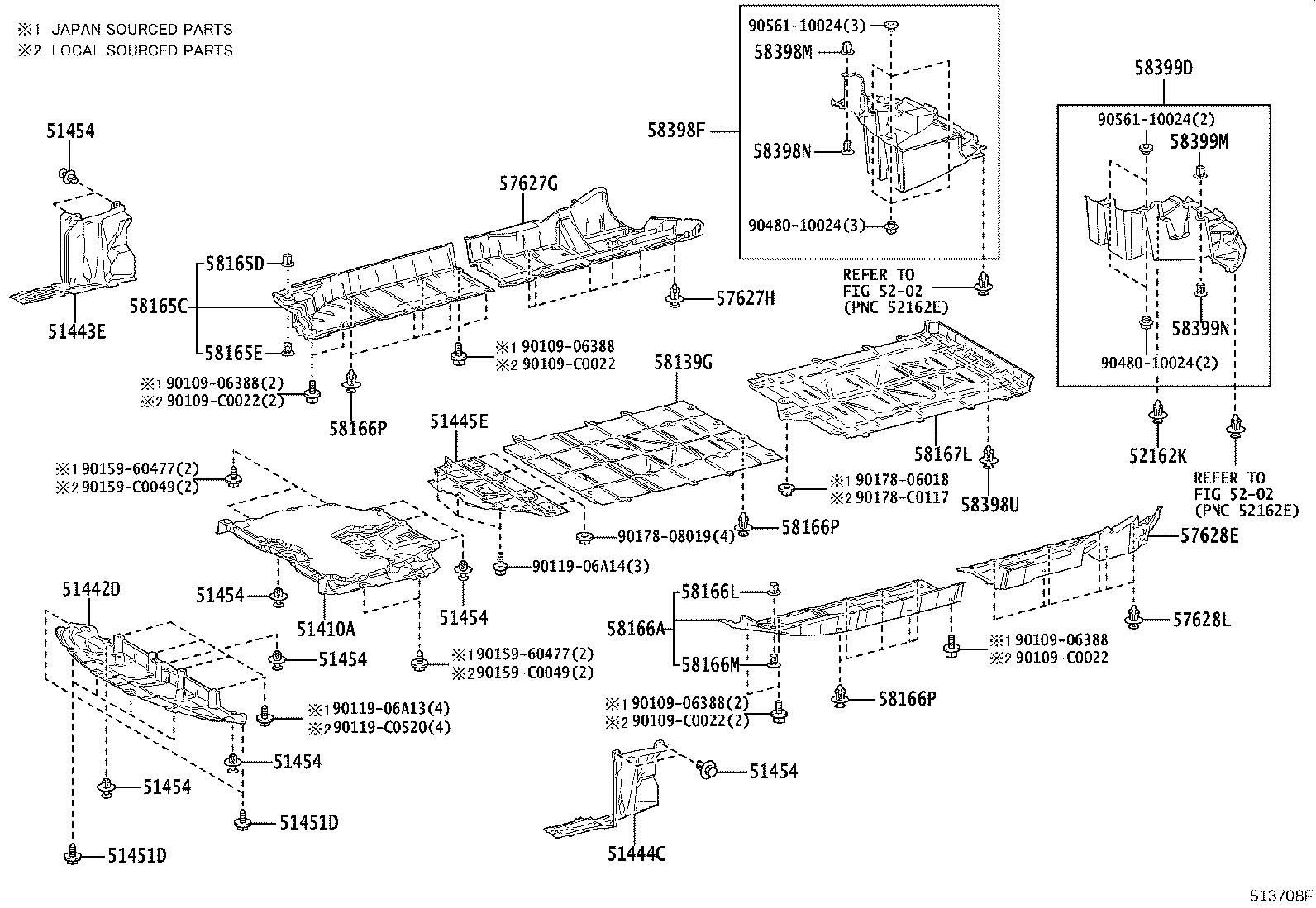

Suspension Crossmember & Under Cover
35 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51151B | Reinforcement, Side Rail, NO.1 RH |
| 51152A | Reinforcement, Side Rail, NO.1 LH |
| 51201 | Crossmember Sub-assy, Front Suspension |
| 51206A | Member Sub-assy, Rear Suspension |
| 51228G | Plate, Front Suspension Member |
| 51249 | Damper, Rear Suspension Member |
| 51410A | Cover Assy, Motor Under, NO.1 |
| 51442D | Cover, Motor Under, NO.2 |
| 51443E | Cover, Motor Under, Rear RH |
| 51444C | Cover, Motor Under, Rear LH |
| 51445E | Bracket, Motor Under Cover |
| 51451D | Screw, NO.1 |
| 51454 | Clip |
| 51618 | Guard, Front Differential Support, LH |
| 52162K | Piece, Rear Bumper |
| 57627G | Cover, Rear Floor Side Member, RH |
| 57627H | Clip, Rear Floor Side Member Cover, NO.1 |
| 57628E | Cover, Rear Floor Side Member, LH |
| 57628L | Clip, Rear Floor Side Member Cover, NO.1 |
| 58139G | Cover, Front Floor |
| 58165C | Cover, Front Floor, RH |
| 58165D | Clip, Floor Cover |
| 58165E | Clip, Floor Cover |
| 58166A | Cover, Front Floor, LH |
| 58166L | Clip, Front Floor Cover, NO.1 |
| 58166M | Clip, Front Floor Cover, NO.2 |
| 58166P | Clip, Front Floor Cover |
| 58167L | Cover, Floor Under, NO.3 |
| 58398F | Cover, Floor Under, NO.1 |
| 58398M | Clip, Floor Under Cover, NO.1 |
| 58398N | Clip, Floor Under Cover, NO.2 |
| 58398U | Clip, Floor Under Cover, NO.3 |
| 58399D | Cover, Floor Under, NO.2 |
| 58399M | Clip, Floor Under Cover, NO.1 |
| 58399N | Clip, Floor Under Cover, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
