Toyota C-hr(CHINA)
2020-05 → present · chassis KPX10 · catalogue 530310 · General
Supported model
Data version 2020-03

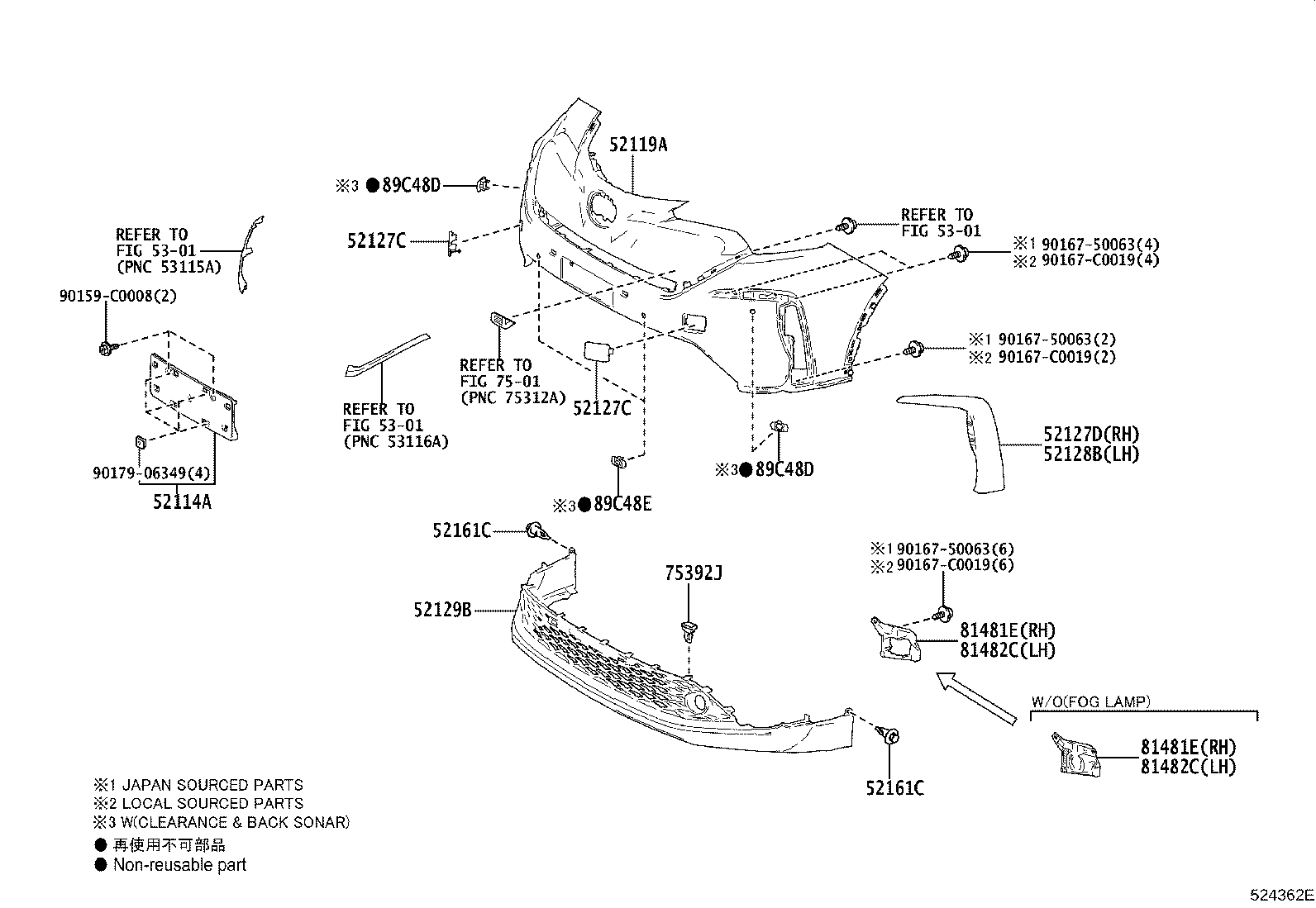

Front Bumper & Bumper Stay
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47749F | Clip, Pin Hold |
| 51451F | Grommet, NO.1 |
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52102B | Extension Sub-assy, Front Bumper, RH |
| 52103A | Extension Sub-assy, Front Bumper, LH |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52119A | Cover, Front Bumper |
| 52127C | Cover, Front Bumper Hole |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52129B | Cover, Front Bumper, Lower |
| 52132A | Reinforcement, Front Bumper, NO.2 |
| 52145H | Stay, Front Bumper Side, RH |
| 52146C | Stay, Front Bumper Side, LH |
| 52161C | Piece, Front Bumper |
| 52161T | Piece, Front Bumper |
| 52521 | Retainer, Front Bumper, Upper Center |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 52611 | Absorber, Front Bumper Energy |
| 52618 | Absorber, Front Bumper, Lower |
| 53879H | Retainer, Front Fender Liner |
| 57013C | Bracket Sub-assy, Front Side Member, RH |
| 57014A | Bracket Sub-assy, Front Side Member, LH |
| 75392J | Retainer, Outside Moulding |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
| 89C48D | Retainer, Ultrasonic Sensor, Front Corner |
| 89C48E | Retainer, Ultrasonic Sensor, Front Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
