Toyota C-hr(CHINA)
2020-05 → present · chassis KPX10 · catalogue 530310 · General
Supported model
Data version 2020-03
Front Fender Apron & Dash Panel

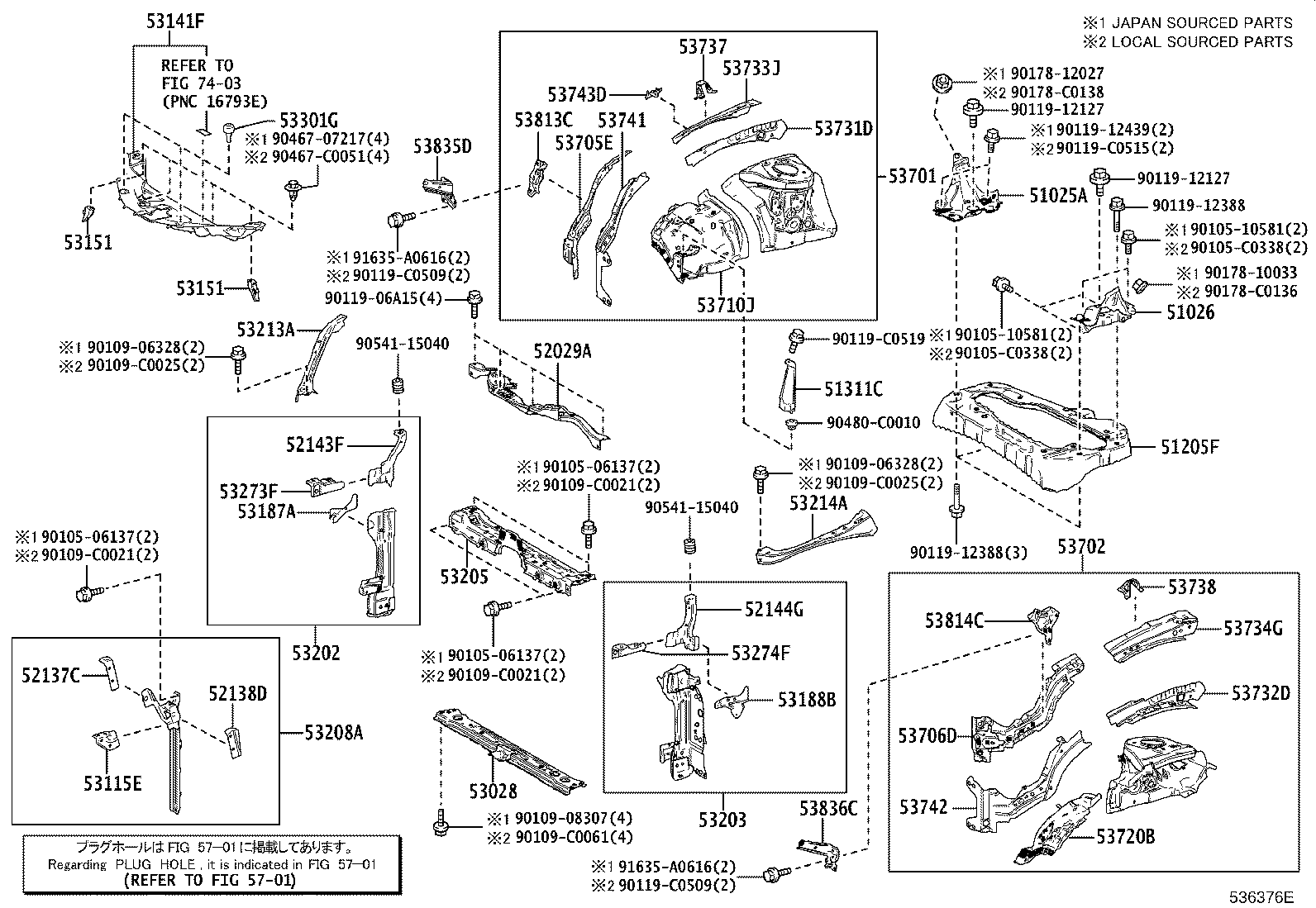

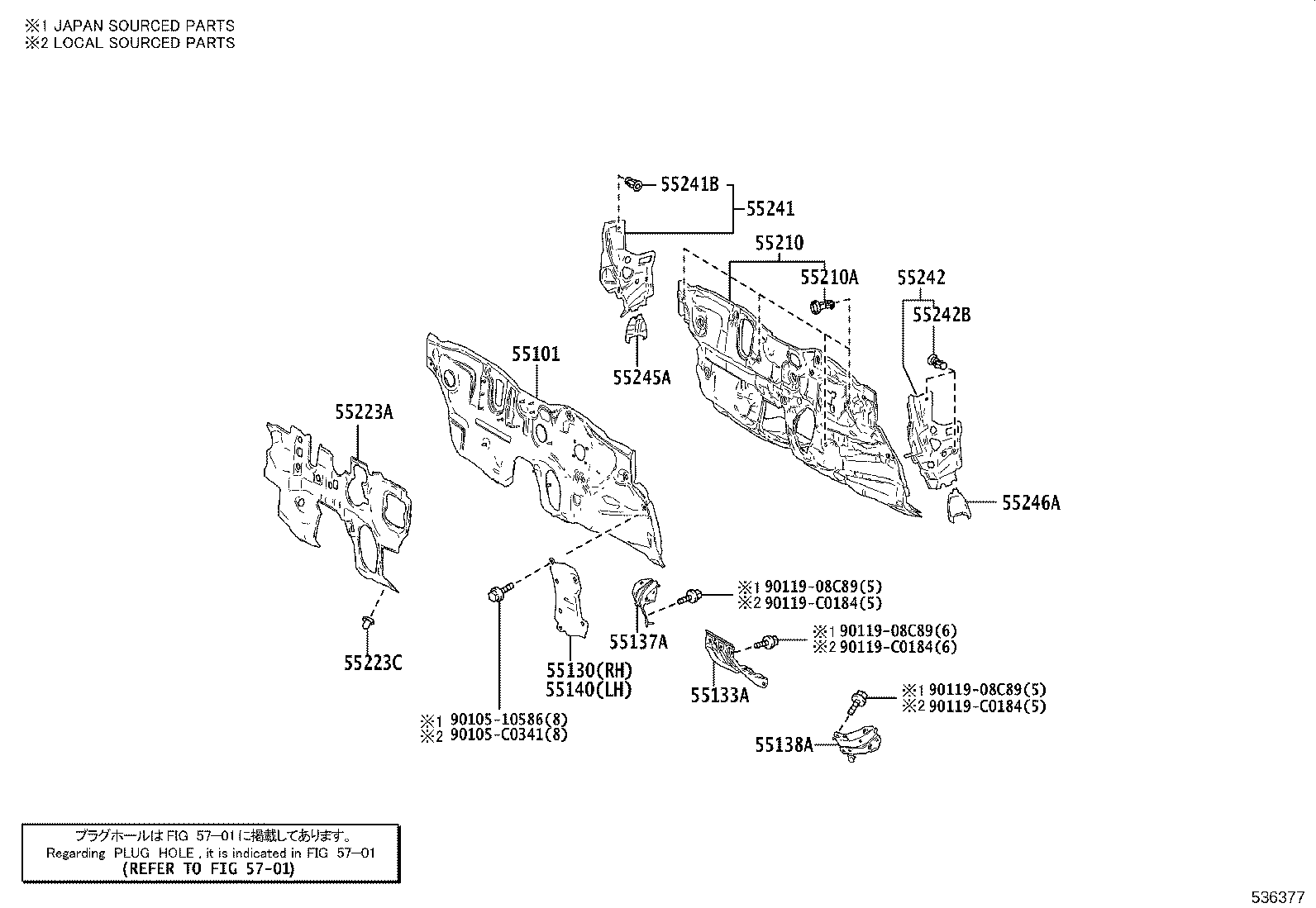

77 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16561C | Seal, Radiator TO Support, NO.1 |
| 16562M | Seal, Radiator TO Support, NO.2 |
| 16563D | Seal, Radiator TO Support, NO.3 |
| 16564B | Seal, Radiator TO Support, NO.4 |
| 16592A | Guide, Radiator Air, NO.3 |
| 16593B | Guide, Radiator Air, NO.1 RH |
| 16594A | Guide, Radiator Air, NO.2 |
| 16595B | Guide, Radiator Air, NO.1 LH |
| 51025A | Bracket Sub-assy, Frame NO.3 Crossmember, RH |
| 51026 | Bracket Sub-assy, Frame NO.3 Crossmember, LH |
| 51205F | Crossmember Sub-assy, Frame, Center |
| 51311C | Gusset, Front Frame, Upper RH |
| 52029A | Reinforcement Sub-assy, Front Bumper, Upper |
| 52137C | Bracket, Front Bumper Arm Mounting, NO.3 |
| 52138D | Bracket, Front Bumper Arm Mounting, NO.4 |
| 52143F | Bracket, Front Bumper Side, RH |
| 52144G | Bracket, Front Bumper Side, LH |
| 53019F | Shutter Sub-assy, Radiator |
| 53028 | Support Sub-assy, Radiator, Lower |
| 53115E | Bracket, Radiator Grille |
| 53141F | Cover, Radiator |
| 53151 | Bracket, Radiator Cover Support |
| 53155J | Seal, Radiator Grille, NO.1 |
| 53156G | Seal, Radiator Grille, NO.2 |
| 53157C | Seal, Radiator Grille, NO.3 |
| 53158E | Seal, Radiator Grille, NO.4 |
| 53158F | Seal, Radiator Grille, NO.4 |
| 53159K | Seal, Radiator Grille, NO.5 |
| 53187A | Stay, Radiator Support, RH |
| 53188B | Stay, Radiator Support, LH |
| 53202 | Support Sub-assy, Radiator, RH |
| 53203 | Support Sub-assy, Radiator, LH |
| 53205 | Support Sub-assy, Radiator, Upper |
| 53208A | Support Sub-assy, Hood Lock |
| 53213A | Support, Radiator, Upper RH |
| 53214A | Support, Radiator, Upper LH |
| 53273F | Bracket, Front Bumper Retainer Mounting, RH |
| 53274F | Bracket, Front Bumper Retainer Mounting, LH |
| 53301G | Cushion, Hood Bumper |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53705E | Member Sub-assy, Front Apron TO Cowl Side, RH |
| 53706D | Member Sub-assy, Front Apron TO Cowl Side, LH |
| 53710J | Apron Assy, Front Fender, RH |
| 53720B | Apron Assy, Front Fender, LH |
| 53731D | Member, Front Apron TO Cowl Side, Upper RH |
| 53732D | Member, Front Apron TO Cowl Side, Upper LH |
| 53733J | Member, Front Apron TO Cowl Side, Outer Front RH |
| 53734G | Member, Front Apron TO Cowl Side, Outer Front LH |
| 53737 | Plate, Front Apron TO Cowl Side Member, RH |
| 53738 | Plate, Front Apron TO Cowl Side Member, LH |
| 53741 | Plate, Front Fender Apron Wind Guide, RH |
| 53742 | Plate, Front Fender Apron Wind Guide, LH |
| 53743D | Reinforcement, Front Fender Apron Front Extension, RH |
| 53813C | Extension, Front Fender, RH |
| 53814C | Extension, Front Fender, LH |
| 53835D | Bracket, Front Side Panel, RH |
| 53836C | Bracket, Front Side Panel, LH |
| 55101 | Panel Sub-assy, Dash |
| 55130 | Plate Assy, Fender Apron Set, RH |
| 55133A | Reinforcement, Dash TO Floor, RH |
| 55137A | Brace, Dash TO Frame, RH |
| 55138A | Brace, Dash TO Frame, LH |
| 55140 | Plate Assy,Fender Apron Set, LH |
| 55210 | Insulator Assy, Dash Panel |
| 55210A | Clip |
| 55223A | Insulator, Dash Panel, Outer |
| 55223C | Clip |
| 55241 | Silencer, Front Panel Side, NO.1 RH |
| 55241B | Clip, Front Panel Side Silencer |
| 55242 | Silencer, Front Panel Side, NO.1 LH |
| 55242B | Clip, Front Panel Side Silencer |
| 55245A | Seal, Front Panel, Lower RH |
| 55246A | Seal, Front Panel, Lower LH |
| 85667F | Cover, Motor |
| 85667G | Cover, Motor |
| 88940D | Actuator Assy, Swing Grille |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
