Toyota C-hr(CHINA)

2020-05 → present · chassis KPX10 · catalogue 530310 · General

Supported model Data version 2020-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

80 part groups · 3 illustrations

Illustrations

616551 2020-05 → —

616552B 2020-05 → —

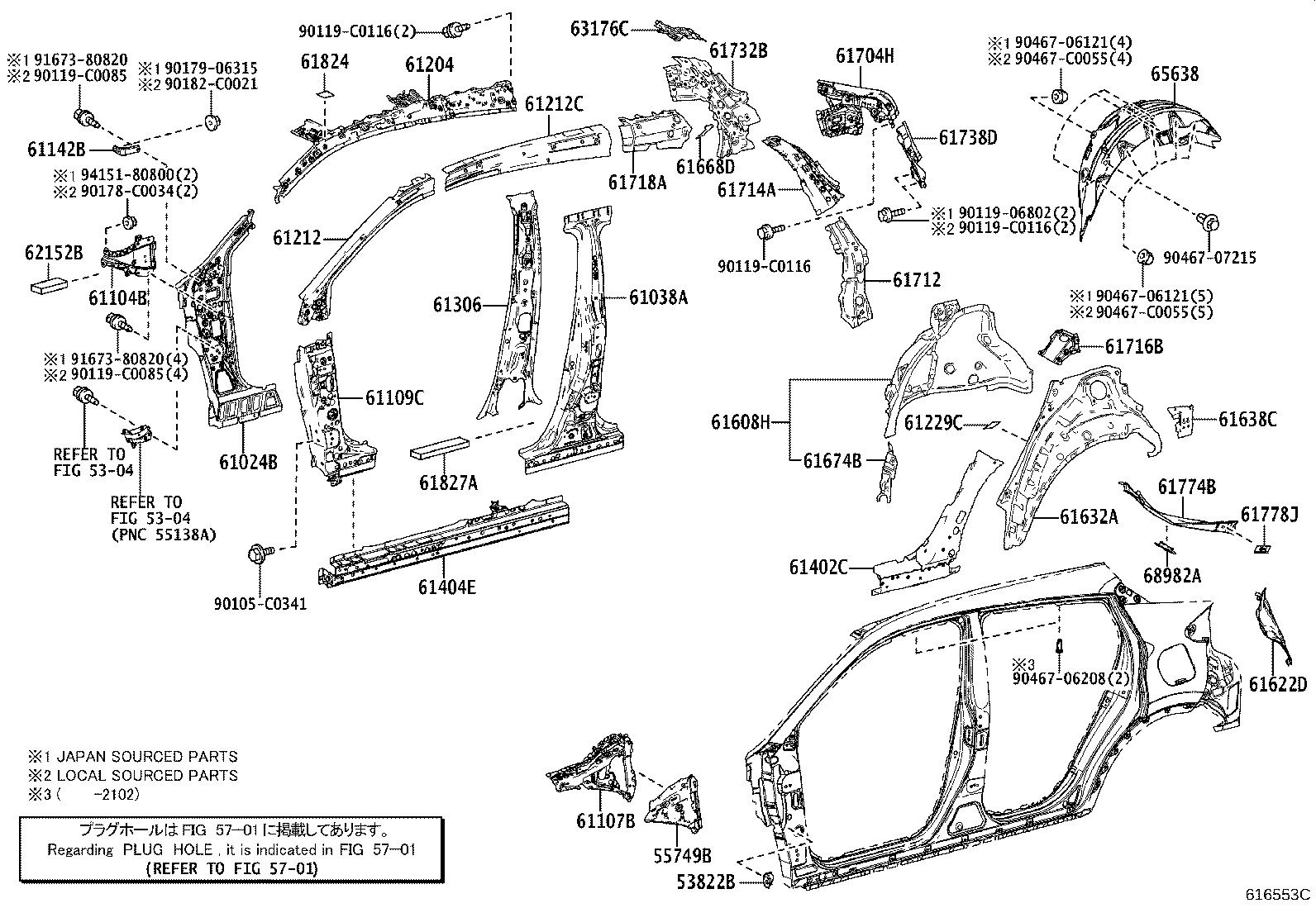

616553C 2020-05 → —

Part groups

PNC	Description
53821B	Bracket, Front Fender, Rear RH
53822B	Bracket, Front Fender, Rear LH
55748B	Brace, Cowl Top Inner TO Pillar, RH
55749B	Brace, Cowl Top Inner TO Pillar, LH
61013C	Panel Sub-assy, Side, Inner RH
61014C	Panel Sub-assy, Side, Inner LH
61023B	Pillar Sub-assy, Front Body, Inner RH
61024B	Pillar Sub-assy, Front Body, Inner LH
61037A	Reinforcement Sub-assy, Center Body Pillar, RH
61038A	Reinforcement Sub-assy, Center Body Pillar, LH
61103A	Reinforcement Sub-assy, Cowl Side, RH
61104B	Reinforcement Sub-assy, Cowl Side, LH
61106A	Reinforce Sub-assy, Front Body Pillar, Upper RH
61107B	Reinforce Sub-assy, Front Body Pillar, Upper LH
61108D	Reinforcement Sub-assy, Front Pillar, Lower RH
61109C	Reinforcement Sub-assy, Front Pillar, Lower LH
61141B	Gusset, Front Body Pillar, Upper RH
61142B	Gusset, Front Body Pillar, Upper LH
61203	Rail Sub-assy, Roof Side, Inner RH
61204	Rail Sub-assy, Roof Side, Inner LH
61211	Rail, Roof Side, Outer RH
61211C	Rail, Roof Side, RH
61212	Rail, Roof Side, Outer LH
61212C	Rail, Roof Side, LH
61217D	Rail, Roof Side, Outer NO.4 RH
61218C	Rail, Roof Side, Outer NO.4 LH
61228C	Rail, Roof Side Outer Upper NO.3, RH
61229C	Rail, Roof Side Outer Upper NO.3. LH
61305	Reinforce Sub-assy, Center Body Pillar, Lower RH
61306	Reinforce Sub-assy, Center Body Pillar, Lower LH
61311B	Pillar, Center Body, Outer RH
61312B	Pillar, Center Body, Outer LH
61401C	Panel Sub-assy, Rocker, Outer RH
61402C	Panel Sub-assy, Rocker, Outer LH
61403C	Reinforce Sub-assy, Rocker, Outer RH
61404E	Reinforce Sub-assy, Rocker, Outer LH
61503B	Reinforcement Sub-assy, Quarter Lock Pillar, RH
61504B	Reinforcement Sub-assy, Quarter Lock Pillar, LH
61601B	Panel Sub-assy, Quarter, RH
61602C	Panel Sub-assy, Quarter, LH
61607H	Panel Sub-assy, Quarter Wheel House, Inner RH
61608H	Panel Sub-assy, Quarter Wheel House, Inner LH
61621D	Trough, Back Door Opening, RH
61622D	Trough, Back Door Opening, LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61637C	Brace, Quarter Wheel House, NO.2 RH
61638C	Brace, Quarter Wheel House, NO.2 LH
61667D	Seal, Quarter Panel
61668D	Seal, Quarter Panel, LH
61673B	Reinforcement, Quarter Wheel House, Inner RH
61674B	Reinforcement, Quarter Wheel House, Inner LH
61703G	Panel Sub-assy, Quarter, Inner RH
61704H	Panel Sub-assy, Quarter, Inner LH
61711	Panel, Roof Side, Outer RH
61712	Panel, Roof Side, Outer LH
61713B	Reinforce, Roof Side, Outer RH
61714A	Extension, Roof Side, Outer LH
61715B	Extension, Roof Side, Inner Front RH
61716B	Extension, Roof Side, Inner Front LH
61717A	Reinforcement, Quarter Panel Extension, RH
61718A	Reinforcement, Quarter Panel Extension, LH
61731B	Panel, Roof Side, Inner RH
61732B	Panel, Roof Side, Inner LH
61737D	Reinforcement, Roof Side, Inner RH
61738D	Reinforcement, Roof Side, Inner LH
61773B	Frame, Back Door Opening Side, Upper RH
61774B	Frame, Back Door Opening Side, Upper LH
61777D	Retainer, Back Door Side Stopper, RH
61778J	Retainer, Back Door Side Stopper, LH
61824	Plate, Noise Control, NO.1
61827A	Plate, Noise Control, NO.4
62152B	Pad, Cowl Side Silencer, NO.2
63175C	Reinforcement, Back Door Hinge Female, RH
63176C	Reinforcement, Back Door Hinge Female, LH
63236F	Clamp, Sliding Roof Drain Hose
65637	Liner, Rear Wheel House, RH
65638	Liner, Rear Wheel House, LH
68981A	Retainer, Back Door Stay, RH
68982A	Retainer, Back Door Stay, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
