Toyota C-hr(CHINA)
2020-05 → present · chassis KPX10 · catalogue 530310 · General
Supported model
Data version 2020-03

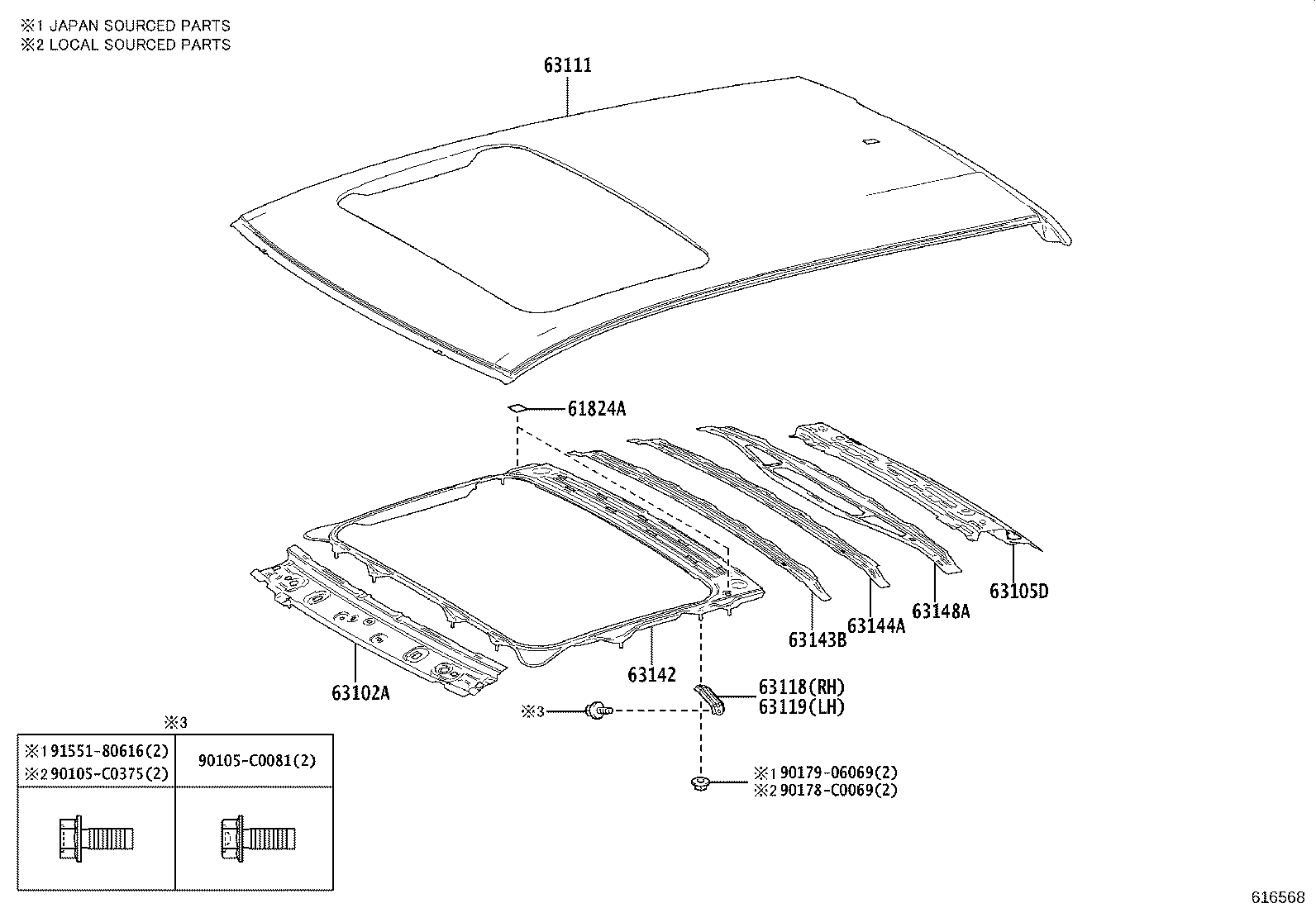

Roof Panel & Back Window Glass
32 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 61824A | Plate, Noise Control, NO.1 |
| 63102A | Panel Sub-assy, Windshield Header |
| 63105D | Frame Sub-assy, Back Window, Upper |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63126B | Reinforcement, Roof Panel, Rear NO.2 |
| 63141J | Reinforcement, Roof Panel |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63148A | Reinforcement, Roof Panel, NO.7 |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63217K | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63218M | Garnish, Sliding Roof Side, LH |
| 63220A | Hose Assy, Sliding Roof Drain, RH |
| 63236 | Clamp, Sliding Roof OR Removable Roof Drain Hose |
| 63236C | Frame, Sliding Roof Housing, NO.2 |
| 63236D | Clamp, Sliding Roof Drain Hose |
| 63236E | Clamp, Sliding Roof Drain Hose |
| 63236G | Clamp, Sliding Roof Drain Hose |
| 63236H | Clamp, Sliding Roof Drain Hose |
| 63236J | Clamp, Sliding Roof Drain Hose |
| 63240A | Hose Assy, Sliding Roof Drain, LH |
| 63247E | Hose, Sliding Roof Drain, Rear RH |
| 63248E | Hose, Sliding Roof Drain, Rear LH |
| 63251H | Weatherstrip, Sliding Roof |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63669B | Grommet, Sliding Roof Drain |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
