Toyota C-hr(CHINA)

2020-05 → present · chassis KPX10 · catalogue 530310 · General

Supported model Data version 2020-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

11 part groups · 2 illustrations

Illustrations

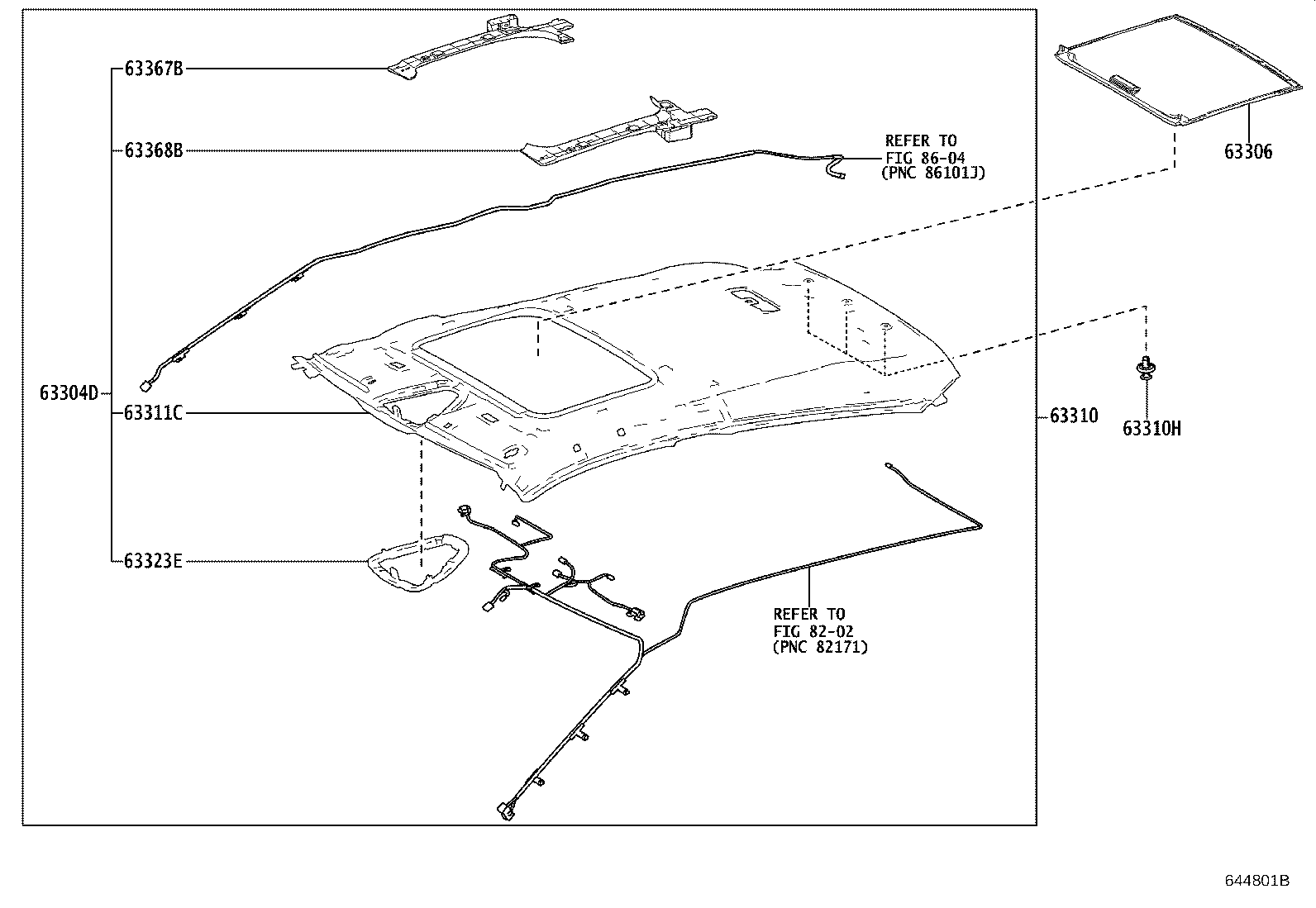

Figure 644800B 644800B 2020-05 → — Figure 644801B 644801B 2020-05 → —

Part groups

PNCDescription
63304D Trim Sub-assy, Roof Headlining
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63311C Headlining, Roof
63323E Case, Headlining Lamp
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63367B Plate, Roof Headlining Set, NO.2 RH
63368B Plate, Roof Headlining Set, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
