Toyota C-hr(CHINA)
2020-05 → present · chassis KPX10 · catalogue 530310 · General
Supported model
Data version 2020-03

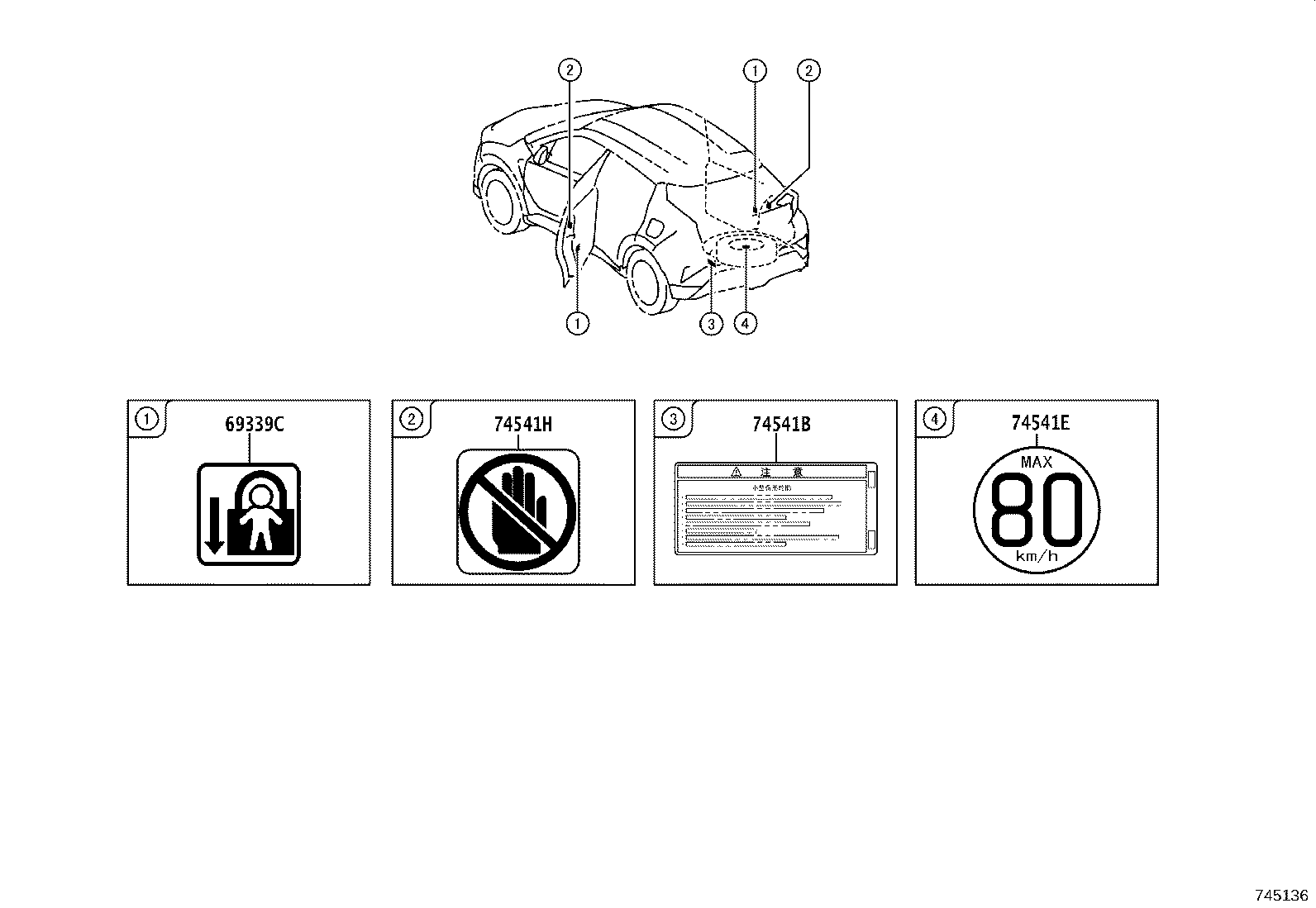

Caution Plate (EXTERIOR & INTERIOR)
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 16793E | Label, Cooling Fan Caution |
| 47997C | Label, Accumulator Caution, NO.1 |
| 69339C | Label, Child Protector Information |
| 74515A | Plate, Theft Warning |
| 74541B | Plate, Compact Spare Tire Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74541H | Plate, Body Caution |
| 74573D | Label, Electric Vehicle Battery Caution |
| 74573E | Label, Electric Vehicle Battery Caution, NO.2 |
| 74751 | Label, Tire Pressure Information |
| 88723H | Label, Cooler Service Caution |
| G9275 | Label, Battery Caution, NO.1 |
| G92A1 | Label, Hybrid Coolant System Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
