Toyota C-hr(CHINA)
2020-05 → present · chassis KPX10 · catalogue 530310 · General
Supported model
Data version 2020-03

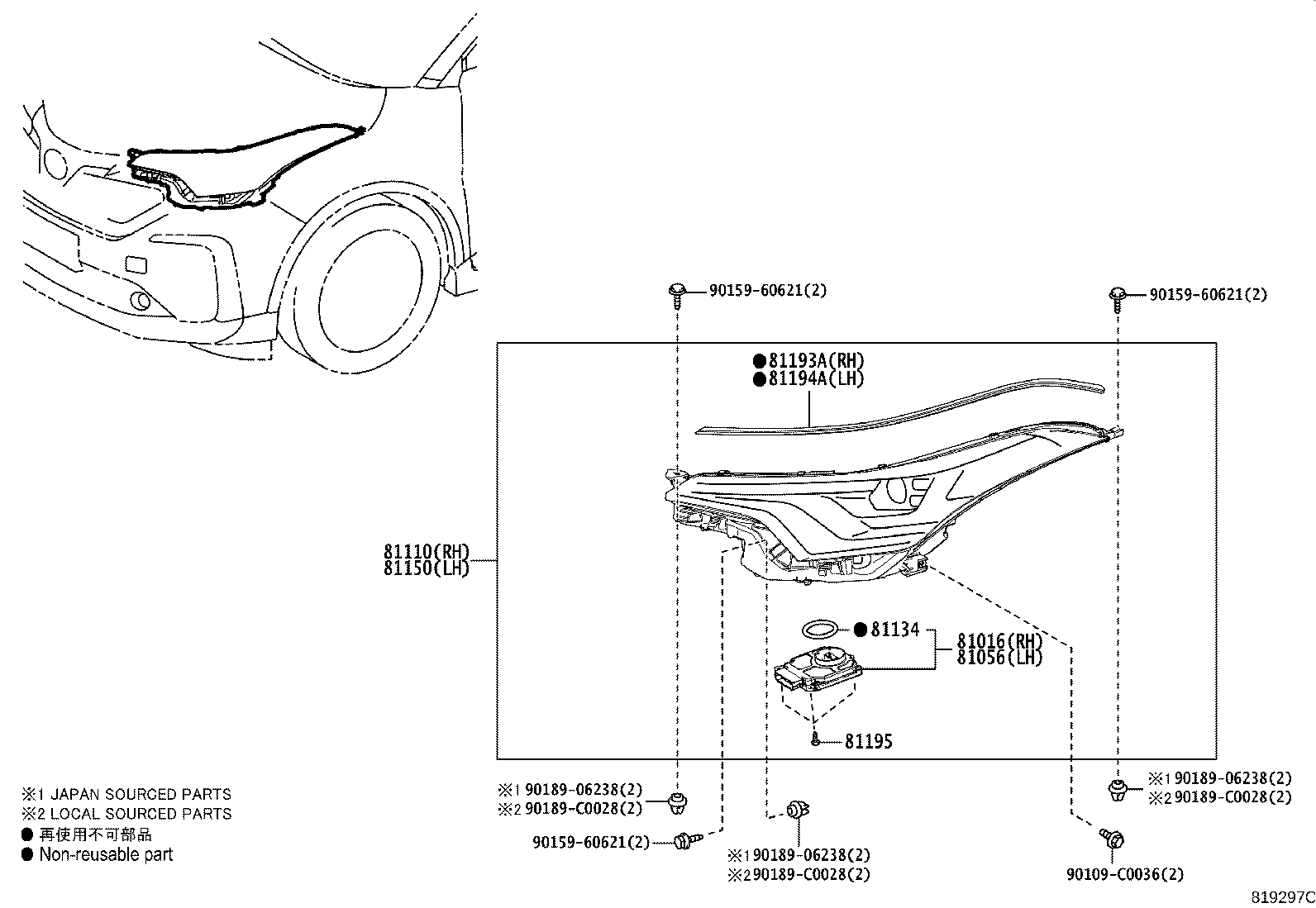

Headlamp
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81016 | Computer Sub-assy, Headlamp, RH NO.1 |
| 81056 | Computer Sub-assy, Headlamp, LH NO.1 |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81134 | Gasket, Headlamp |
| 81139 | Cover, Headlamp Socket |
| 81150 | Headlamp Assy, LH |
| 81193A | Protector, Headlamp, RH |
| 81194A | Protector, Headlamp, LH |
| 81195 | Screw, Headlamp |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
