Toyota C-hr(CHINA)
2020-05 → present · chassis KPX10 · catalogue 530310 · General
Supported model
Data version 2020-03
Wiring & Clamp
62 part groups · 9 illustrations
Part groups

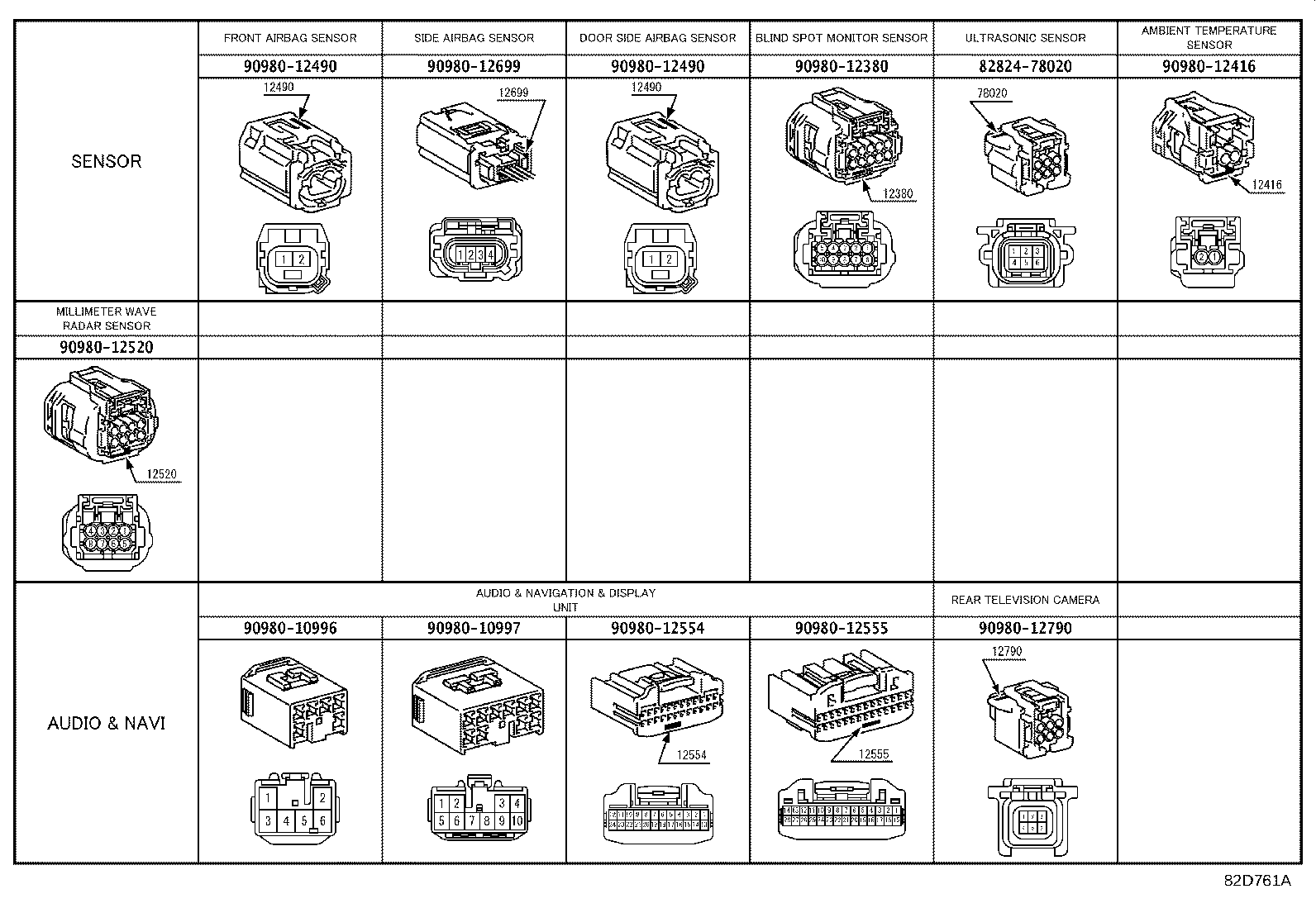

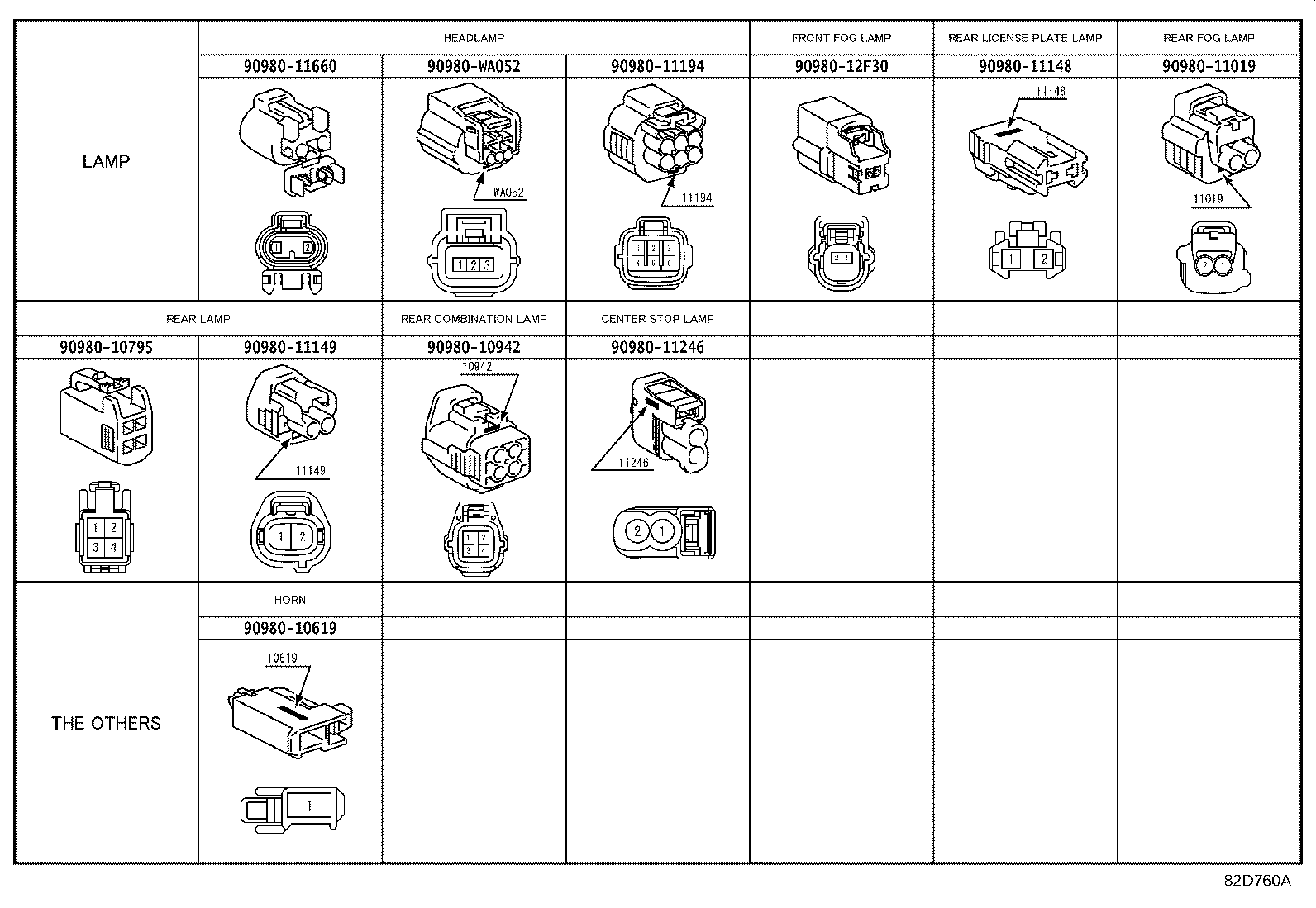

| PNC | Description |
|---|---|
| 82111C | Wire, Front Compartment, Main |
| 82112C | Wire, Fromt Compartment, NO.2 |
| 82113A | Wire, Front Compartment, NO.3 |
| 82119B | Wire, Front Compartment, NO.5 |

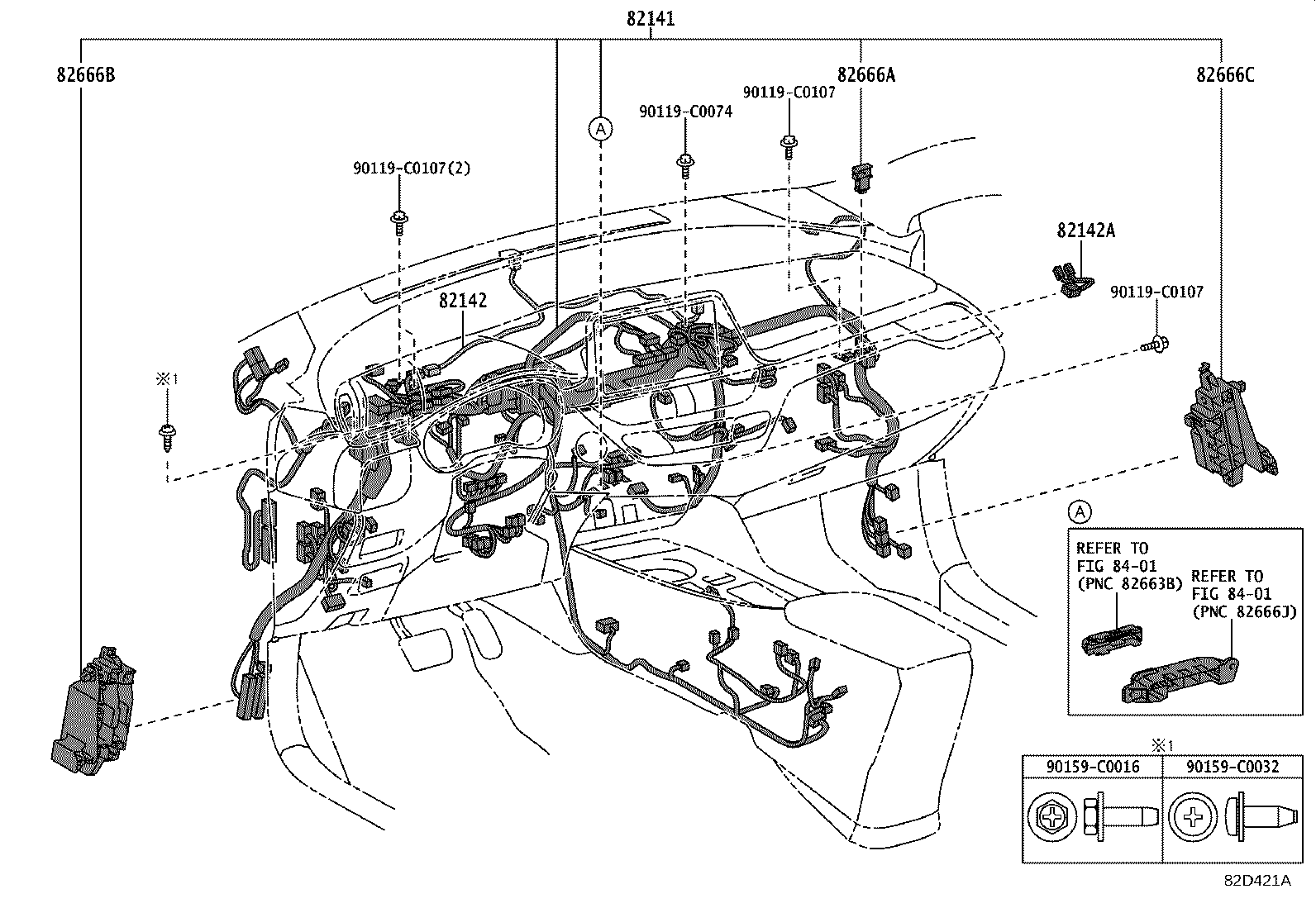

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |
| 82142A | Wire, Instrument Panel, NO.2 |

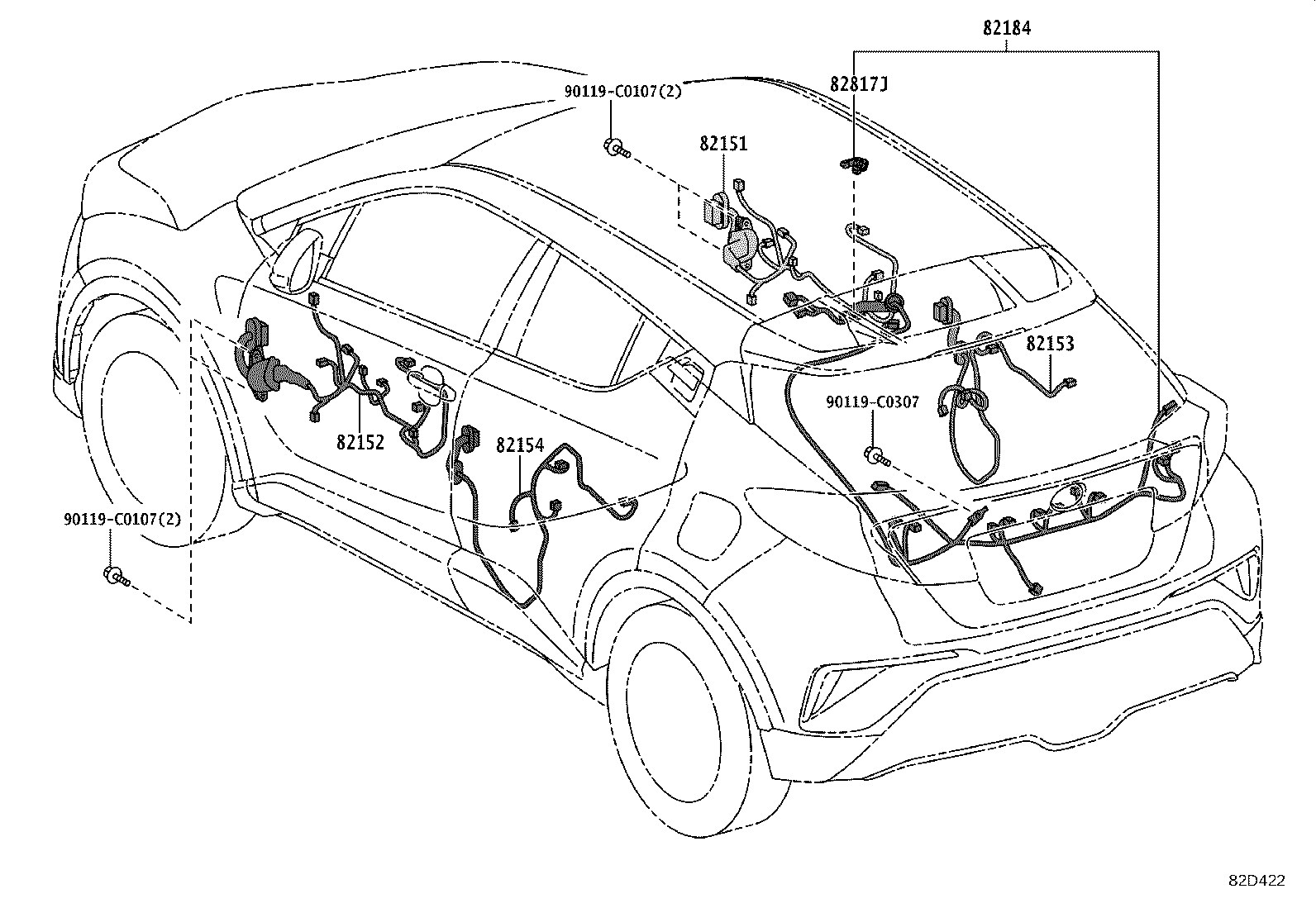

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |

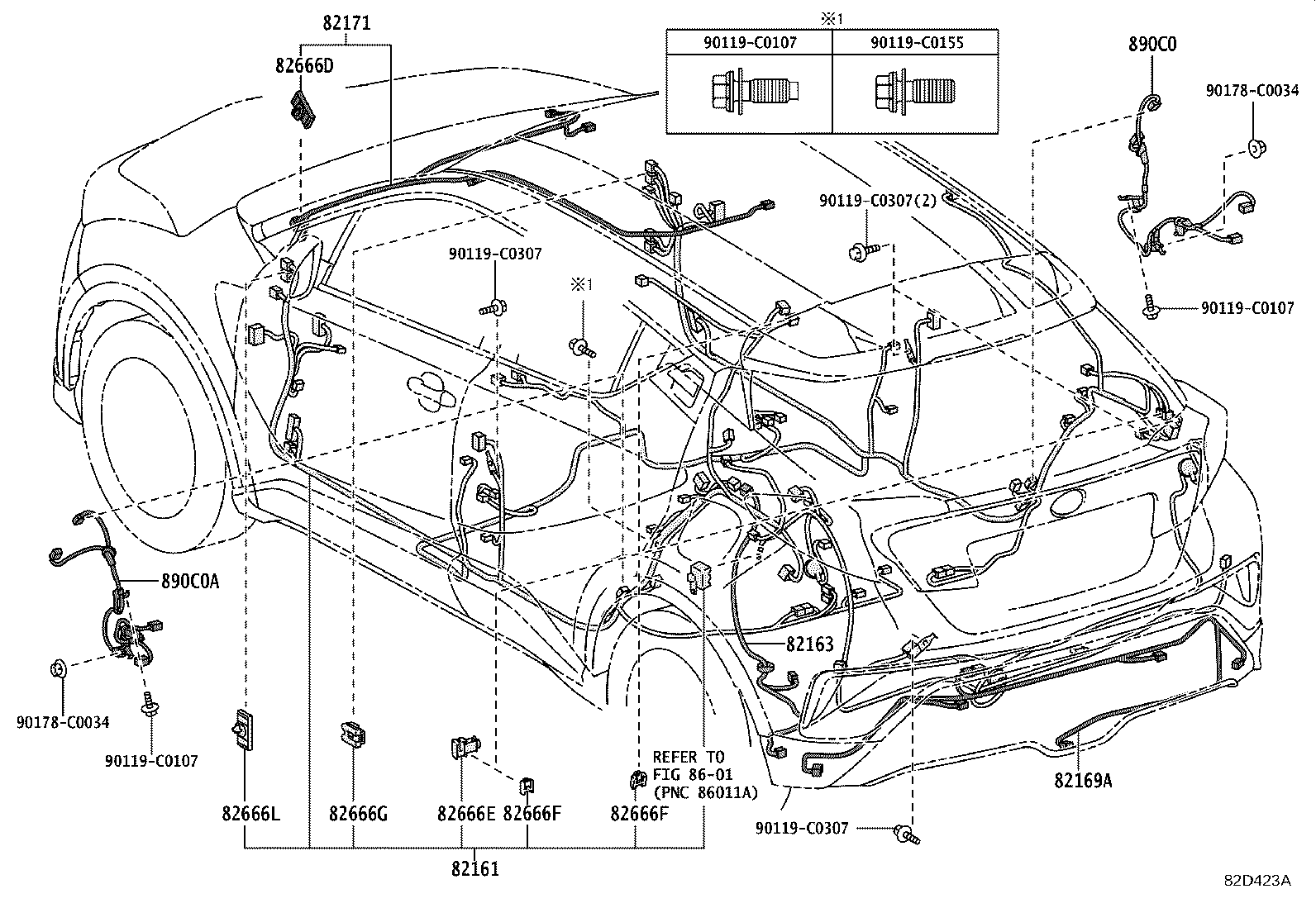

| 82161 | Wire, Floor |
| 82163 | Wire, Floor, NO.3 |
| 82169A | Wire, Floor, NO.6 |
| 82171 | Wire, Roof, NO.1 |
| 82184 | Wire, Back Door, NO.1 |

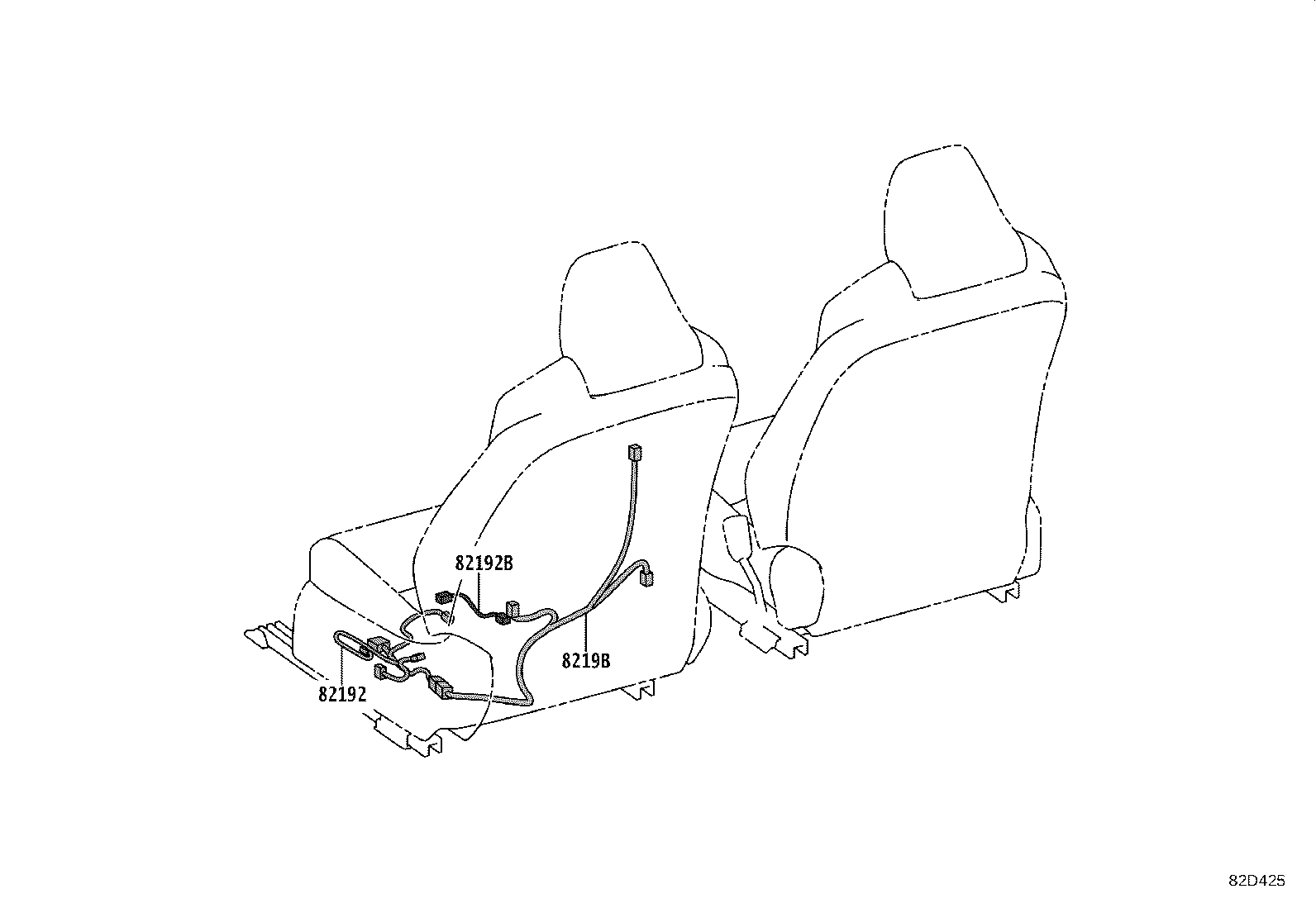

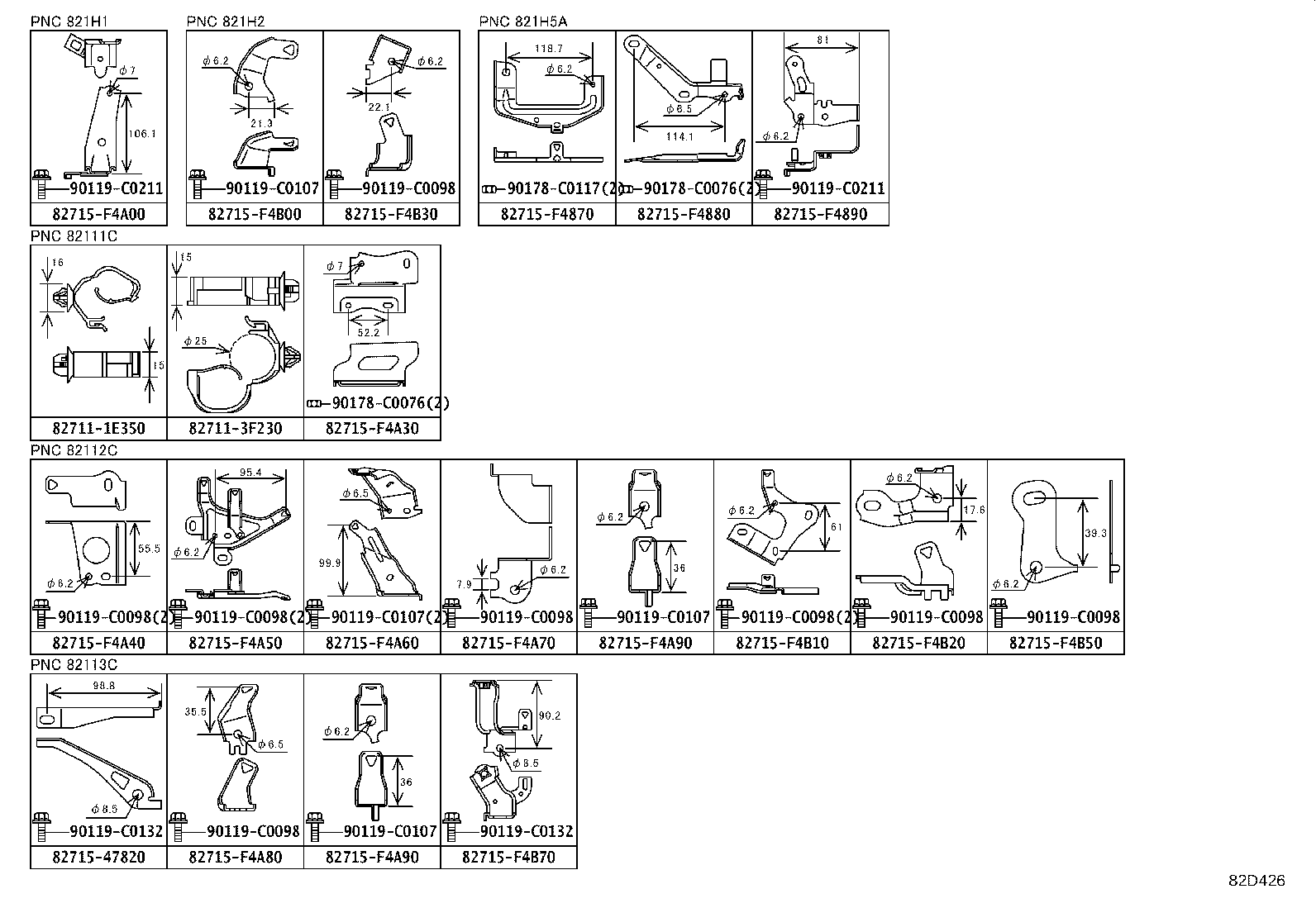

| 82192 | Wire, Front Seat, LH |
| 82192B | Wire, Front Seat, LH NO.2 |
| 8219B | Wire, Front Seat, LH NO.2 |
| 821H1 | Wire, Floor Under |

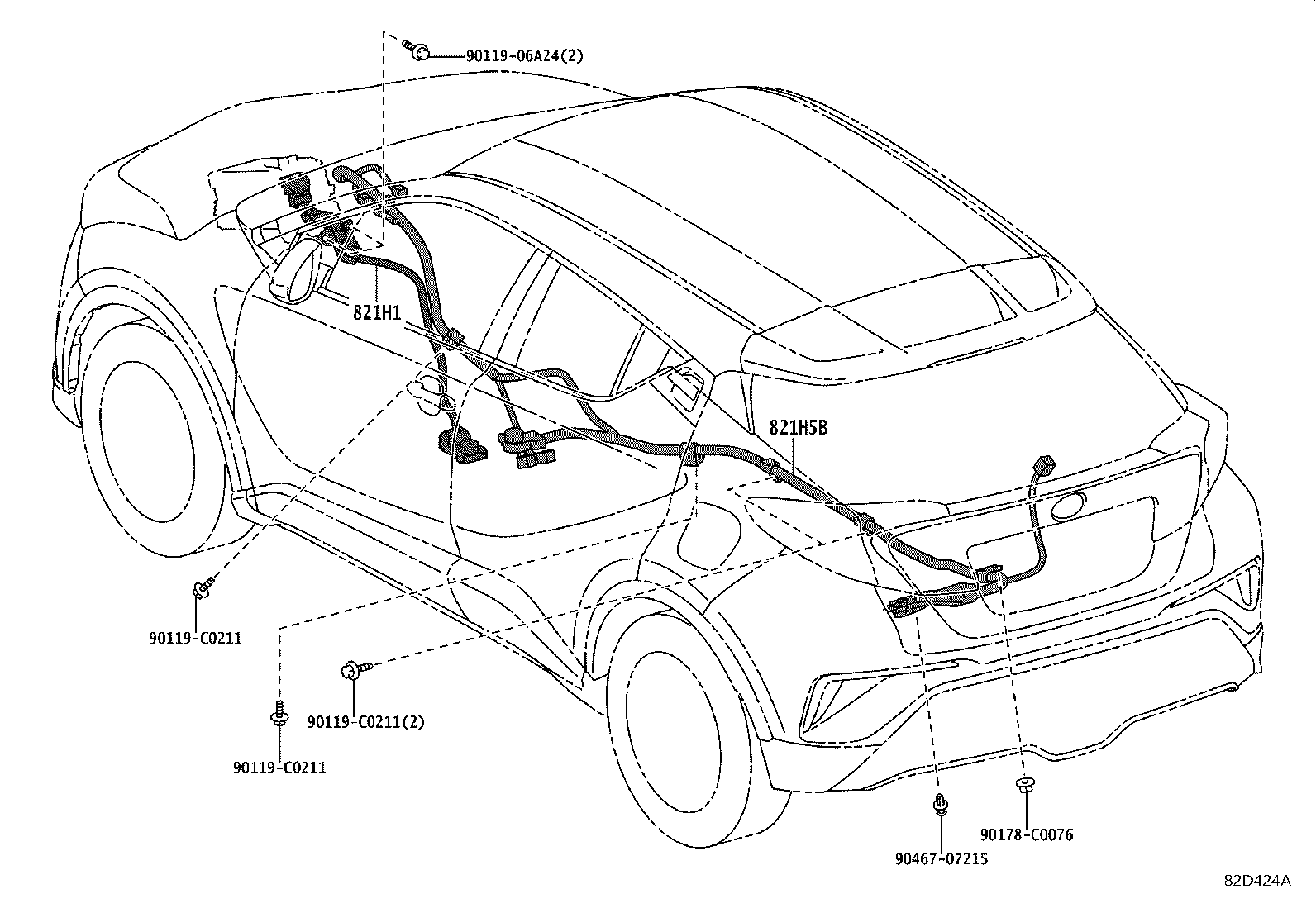

| 821H2 | Wire, HV Air Conditioner |
| 821H5B | Wire, EV Battery Charger |
| 82661D | Cover, Relay Block, Side NO.1 |
| 82661E | Cover, Relay Block, Side NO.2 |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666G | Holder, Connector NO.8 |
| 82666L | Holder, Connector NO.9 |
| 82815A | Cover, Wiring Harness Protector |
| 82815B | Cover, Wiring Harness Protector |
| 82815G | Cover, Wiring Harness Protector NO.5 |
| 82815H | Cover, Wiring Harness Protector NO.6 |
| 82815J | Cover, Wiring Harness Protector, NO.7 |
| 82815K | Cover, Wiring Harness Protector, NO.8 |
| 82815L | Cover, Wiring Harness Protector, NO.9 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82821A | Cover, Connector |
| 82821E | Cover, Connector |
| 82821H | Cover, Connector |
| 82821M | Cover, Connector |
| 82821N | Cover, Connector |
| 82821P | Cover, Connector |
| 82821R | Cover, Connector |
| 82821U | Cover, Connector |
| 82821V | Cover, Connector |
| 82821W | Cover, Connector |
| 82821X | Cover, Connector |
| 82823 | Cap, Terminal, NO.1 |
| 890C0 | Wire Assy, Parking Brake, NO.1 |
| 890C0A | Wire Assy, Parking Brake, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
