Toyota C-hr (THP)

2018-02 → present · chassis ZGX11,ZYX10 · catalogue 531310 · General

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

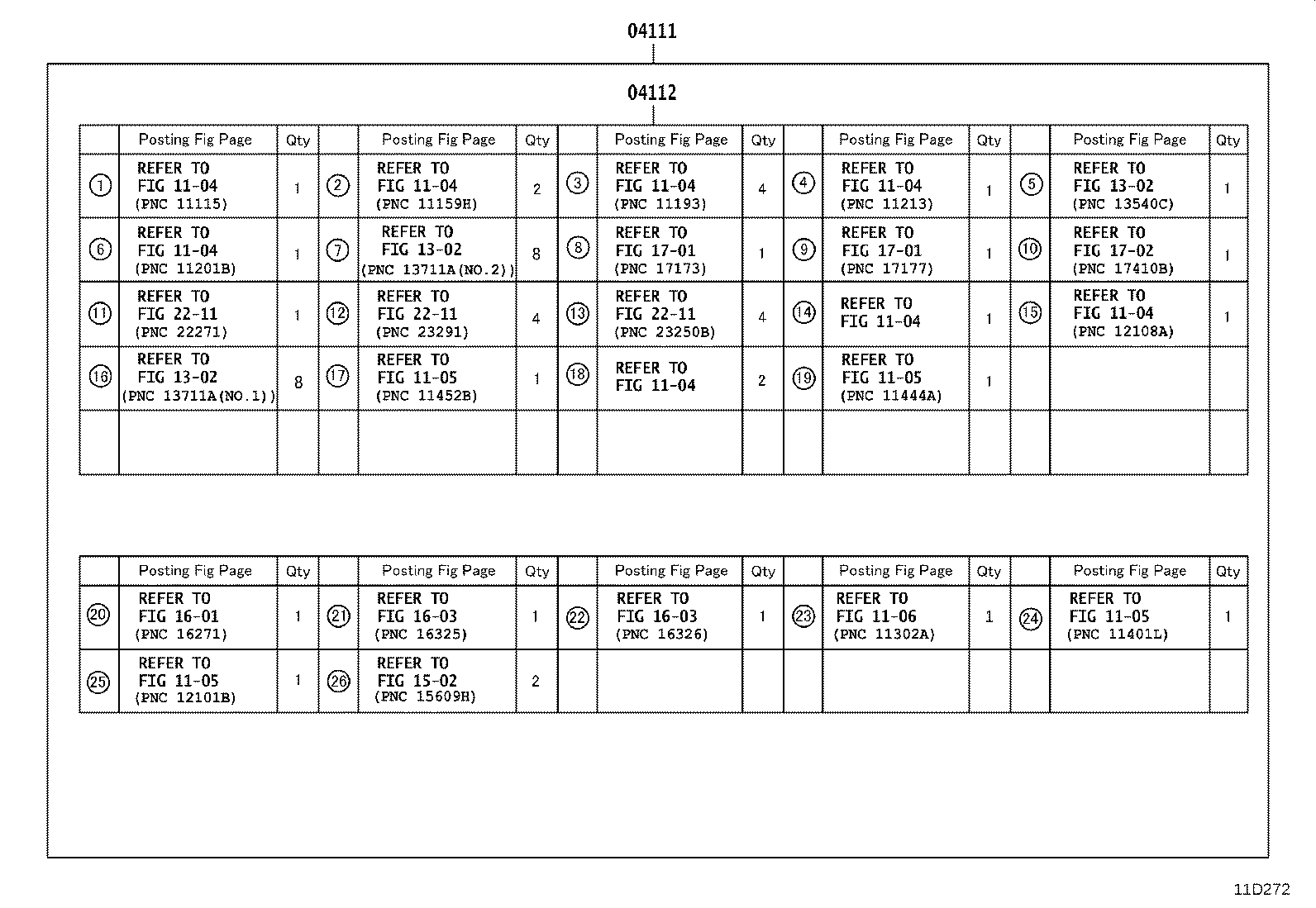

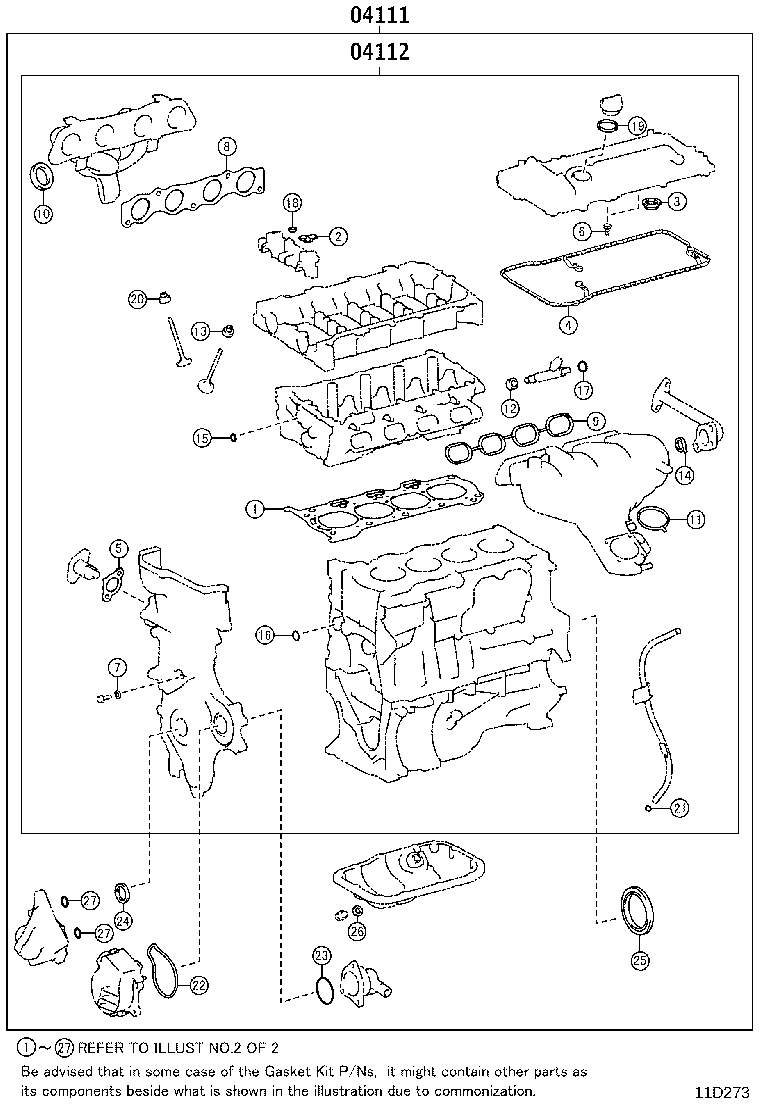

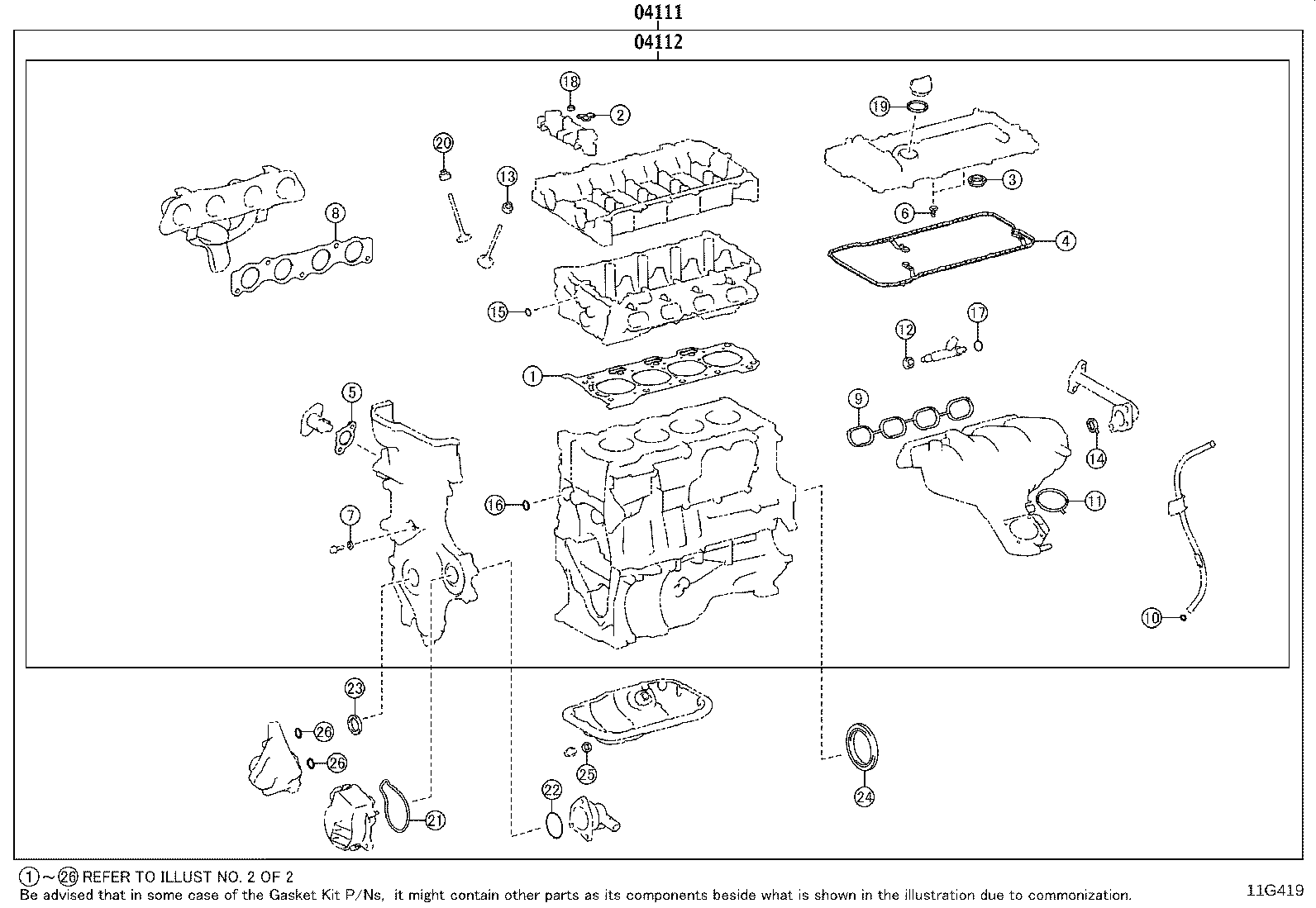

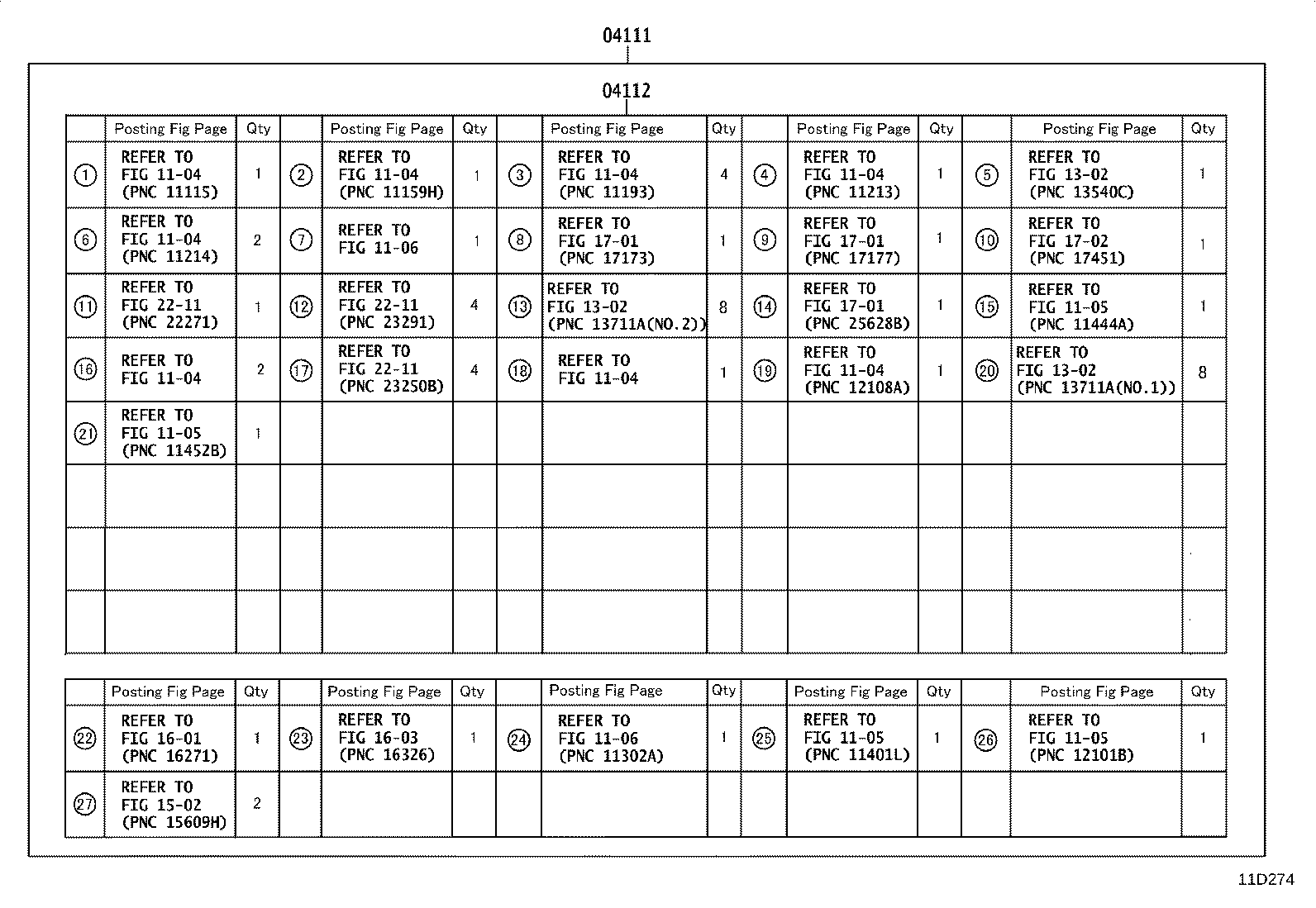

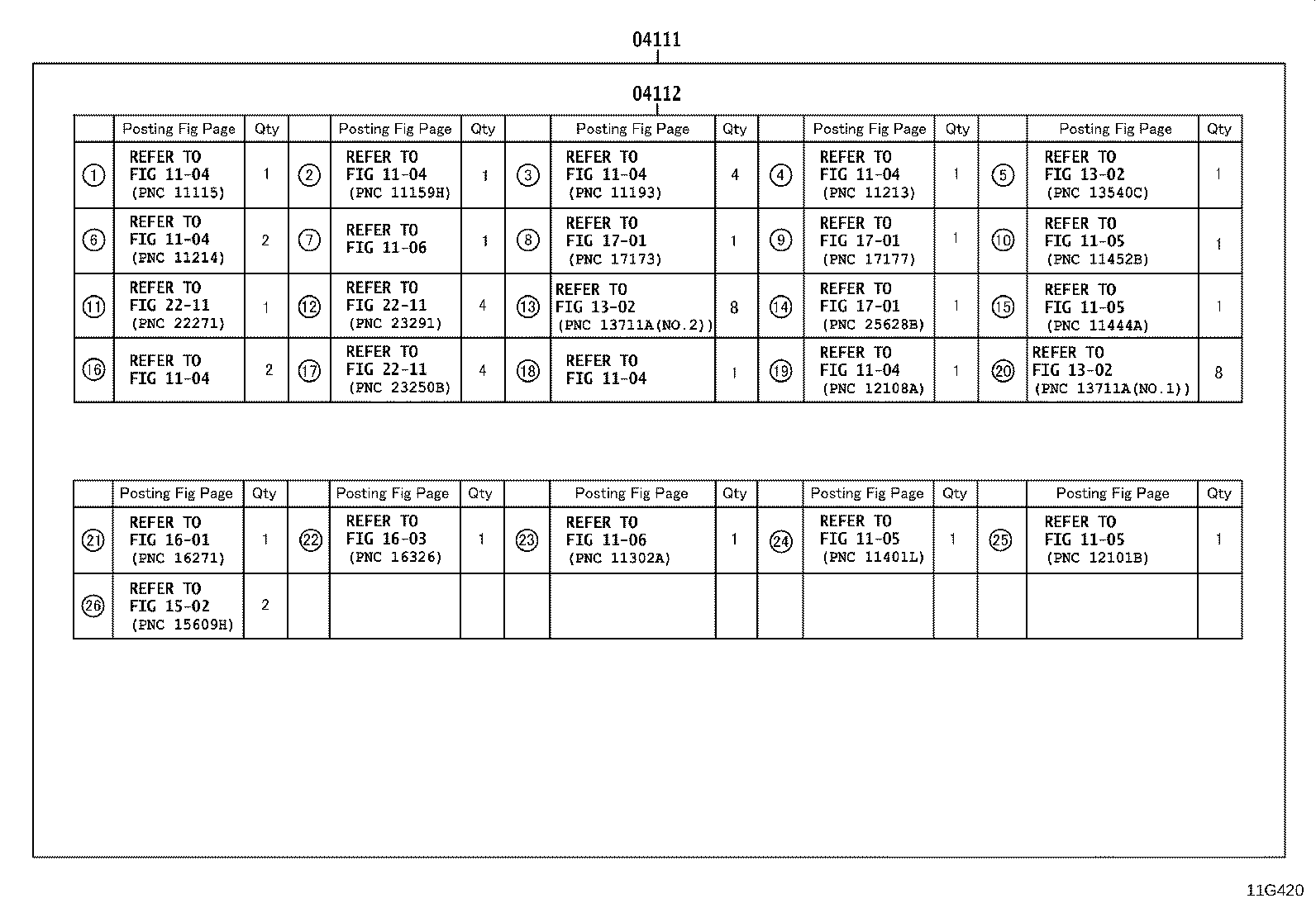

Figure 11D271 11D271 2018-02 → — Figure 11D273 11D273 2018-02 → 2021-12 Figure 11G419 11G419 2021-12 → — Figure 11D272 11D272 2018-02 → — Figure 11D274 11D274 2018-02 → 2021-12 Figure 11G420 11G420 2021-12 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
