Toyota C-hr (THP)

2018-02 → present · chassis ZGX11,ZYX10 · catalogue 531310 · General

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

7 part groups · 2 illustrations

Illustrations

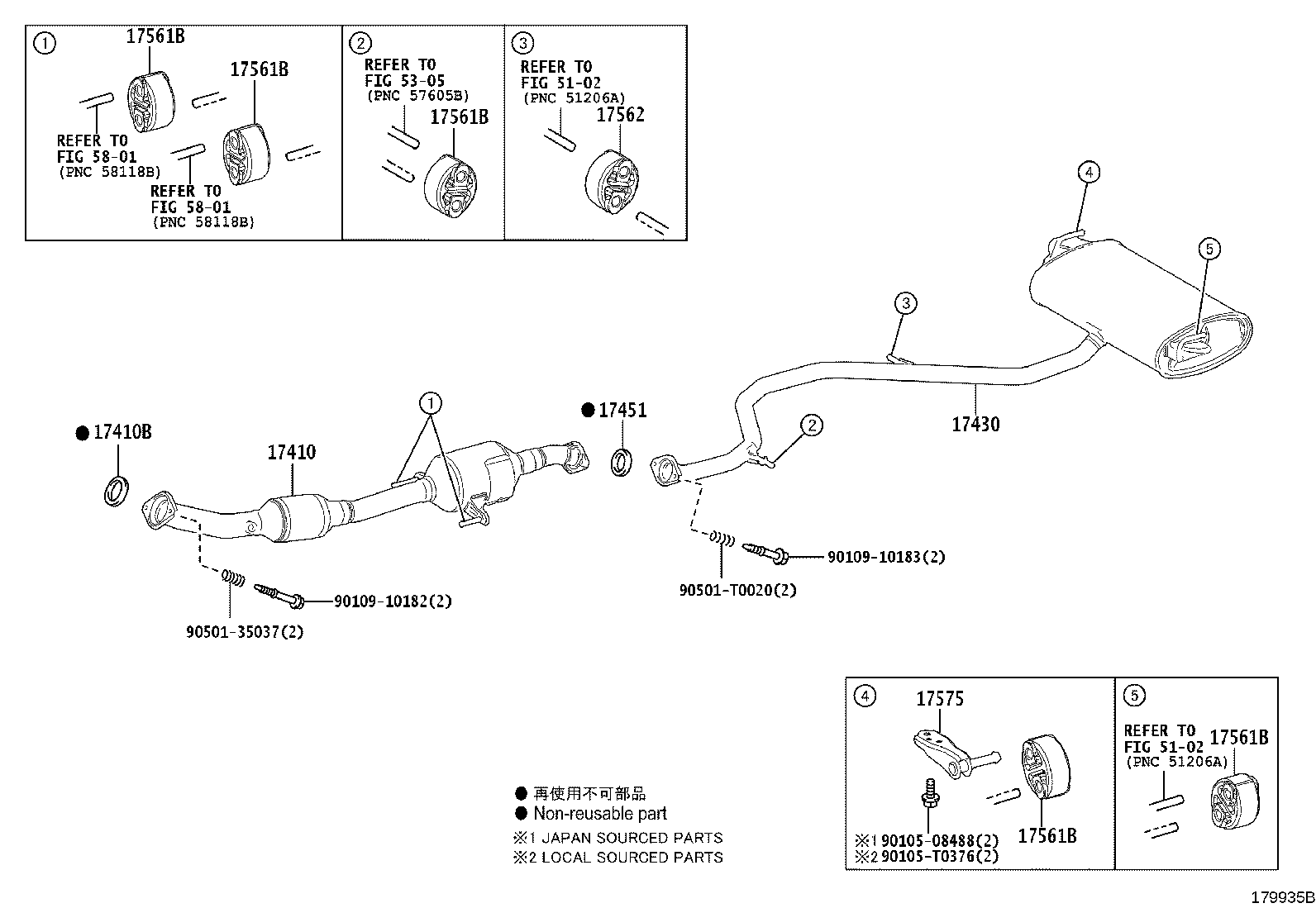

Figure 179934B 179934B 2018-02 → — Figure 179935B 179935B 2018-02 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17575 Bracket, Exhaust Pipe Support, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
