Toyota C-hr (THP)

2018-02 → present · chassis ZGX11,ZYX10 · catalogue 531310 · General

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

15 part groups · 2 illustrations

Illustrations

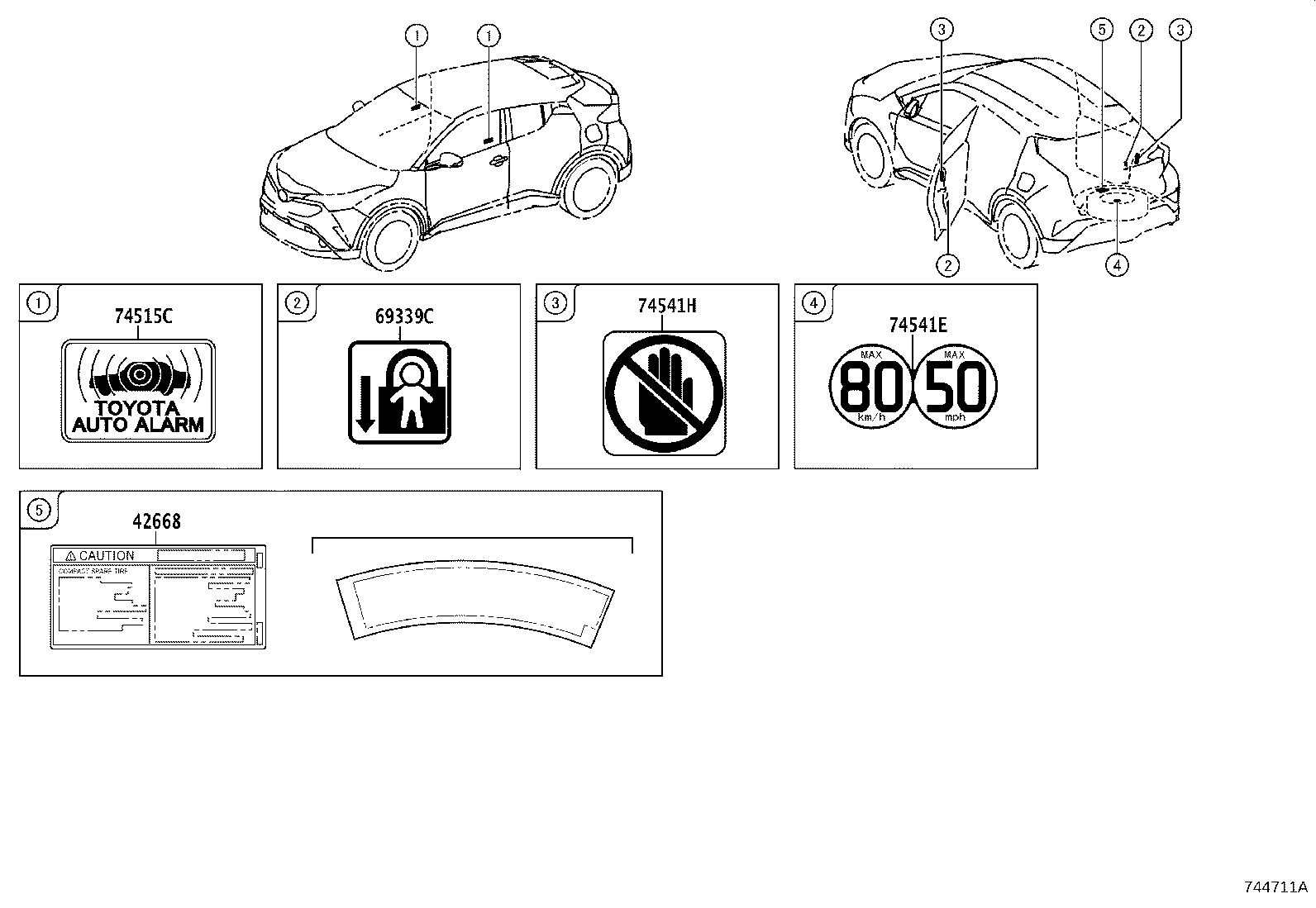

Figure 744709A 744709A 2018-02 → — Figure 744711A 744711A 2018-02 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11291B Plate, Engine Name
11293D Label, Engine Caution
16793B Label, Cooling Fan Information
42668 Label, Compact Spare Tire Caution
47997C Label, Accumulator Caution, NO.1
69339C Label, Child Protector Information
74515C Label, Theft Warning Information
74541E Plate, Compact Spare Tire Caution
74541H Plate, Body Caution
74559B Label, Fuel Information
74596A Label, Side Airbag Caution
74751 Label, Tire Pressure Information
88723H Label, Cooler Service Caution
G9275 Label, Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
