Toyota C-hr (THP)
2018-02 → present · chassis ZGX11,ZYX10 · catalogue 531310 · General
Supported model
Data version 2019-01

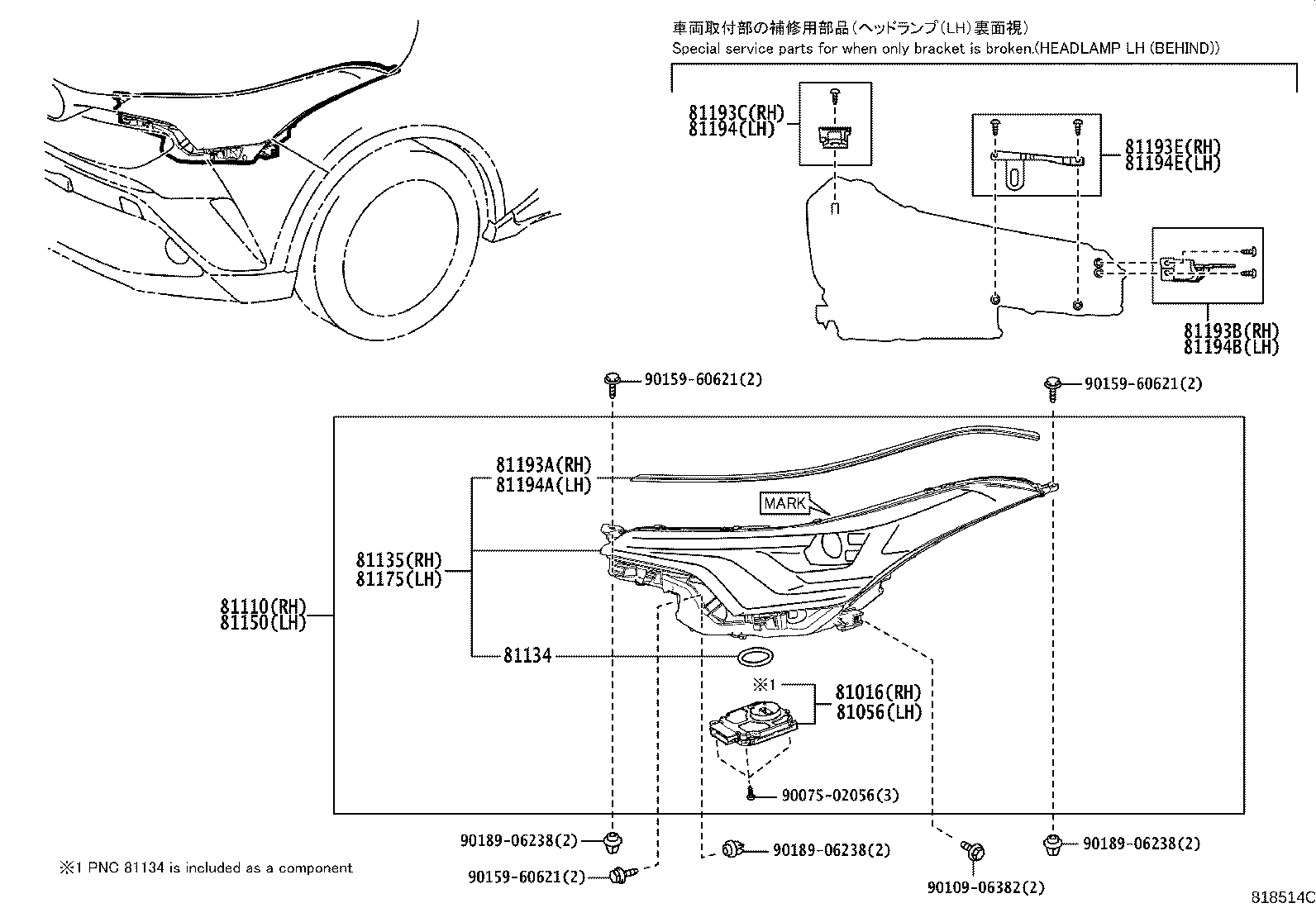

Headlamp
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81016 | Computer Sub-assy, Headlamp, RH NO.1 |
| 81056 | Computer Sub-assy, Headlamp, LH NO.1 |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81144 | Cover, Headlamp, NO.1 |
| 81150 | Headlamp Assy, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81193A | Protector, Headlamp, RH |
| 81193B | Retainer, Headlamp Protector, Upper RH NO.2 |
| 81193C | Retainer, RH Headlamp Protector, Upper RH |
| 81193E | Retainer, Headlamp Protector, Upper RH NO.3 |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81194A | Protector, Headlamp, LH |
| 81194B | Retainer, Headlamp Protector, Upper LH NO.2 |
| 81194E | Retainer, Headlamp Protector, Upper LH NO.3 |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
