Toyota C-hr (THP)

2018-02 → present · chassis ZGX11,ZYX10 · catalogue 531310 · General

Supported model Data version 2019-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

6 part groups · 2 illustrations

Illustrations

Figure 87G999A

87G999A 2018-02 → —

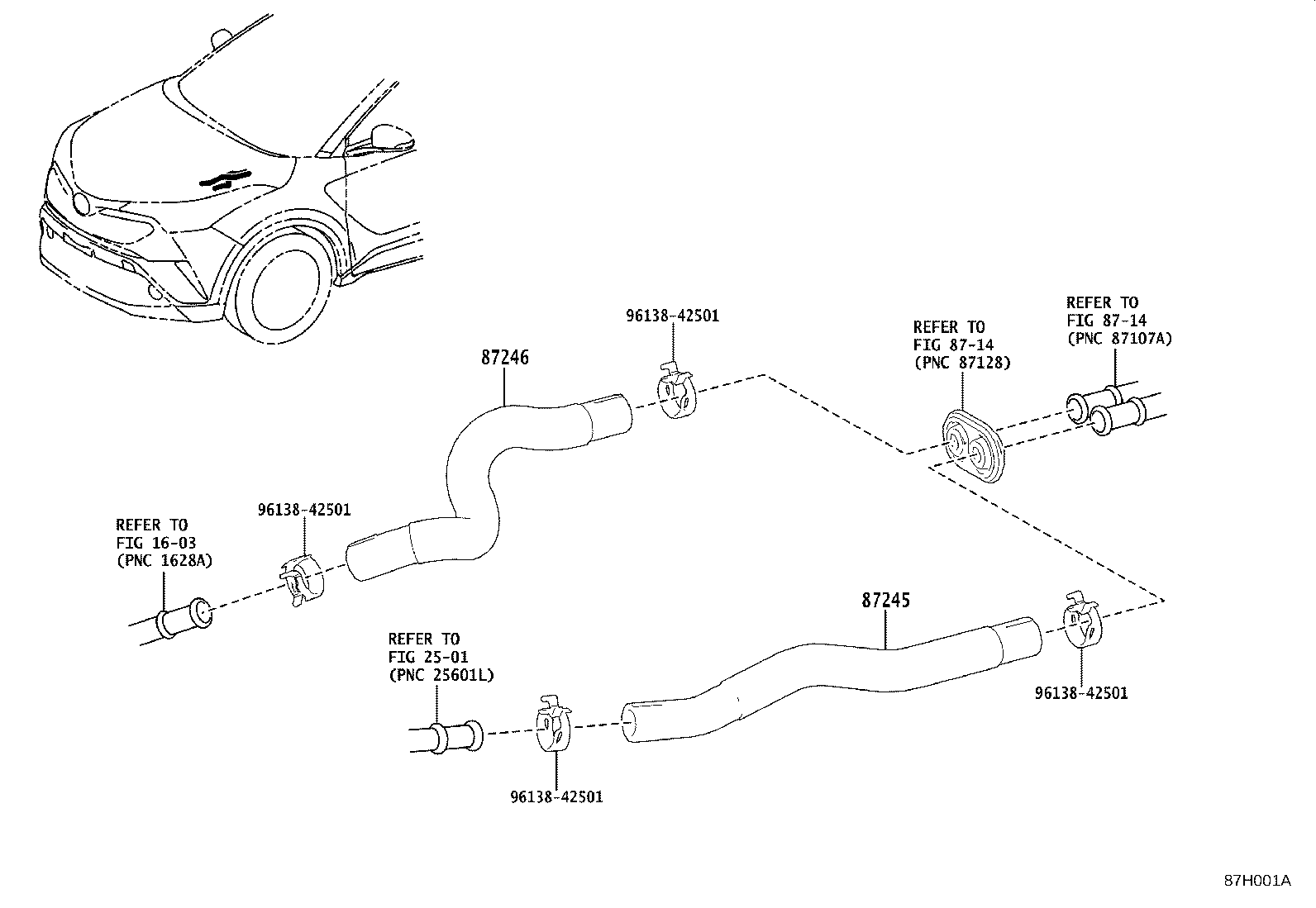

Figure 87H001A

87H001A 2018-02 → —

Part groups

PNC	Description
87209	Hose Sub-assy, Water
87245	Hose, Heater Water, Inlet
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246C	Hose, Heater Water, Outlet C

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
