Toyota Izoa

2018-07 → present · chassis MAXA10,MAXH10 · catalogue 532310 · General

Supported model Data version 2021-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

14 part groups · 3 illustrations

Illustrations

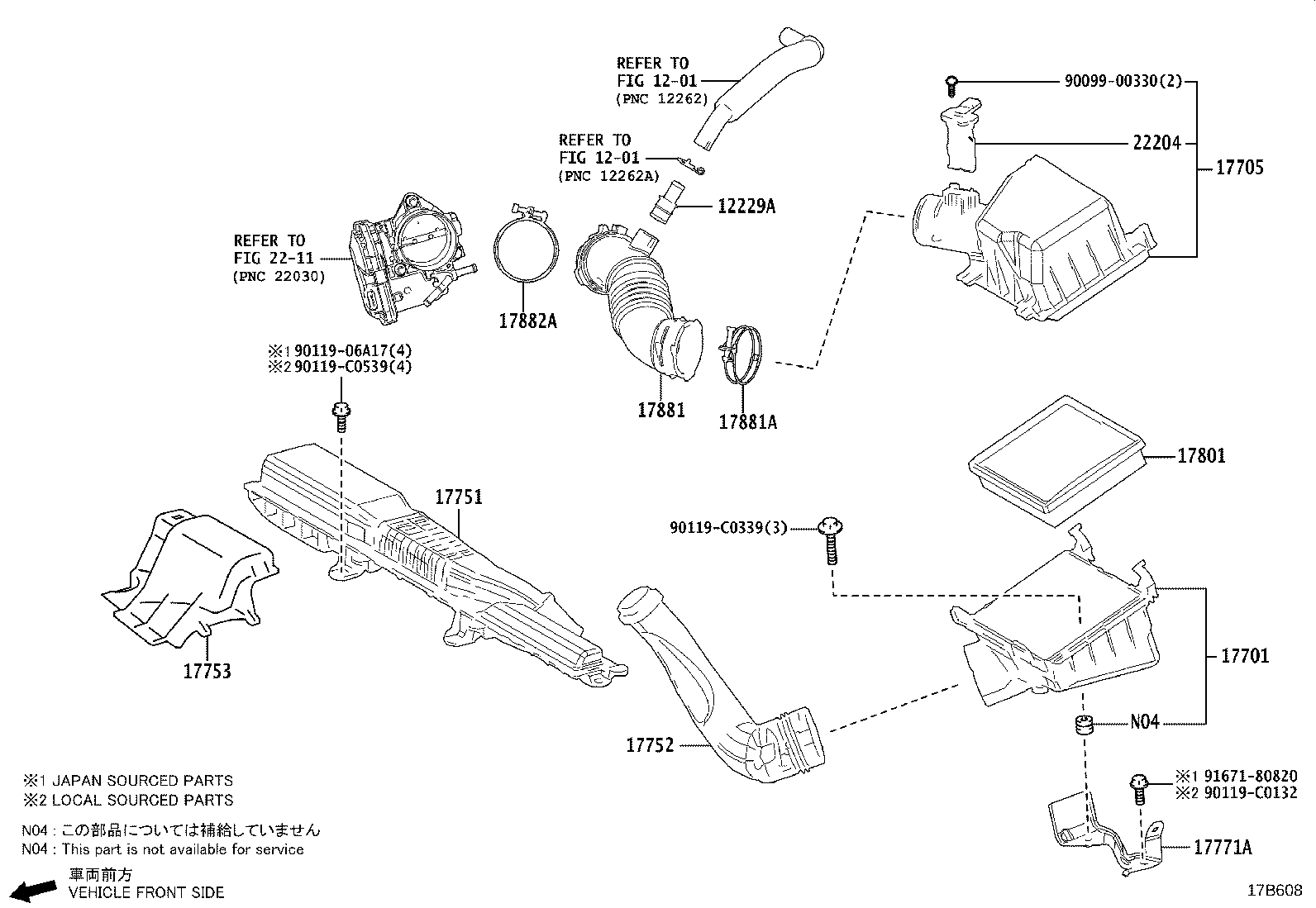

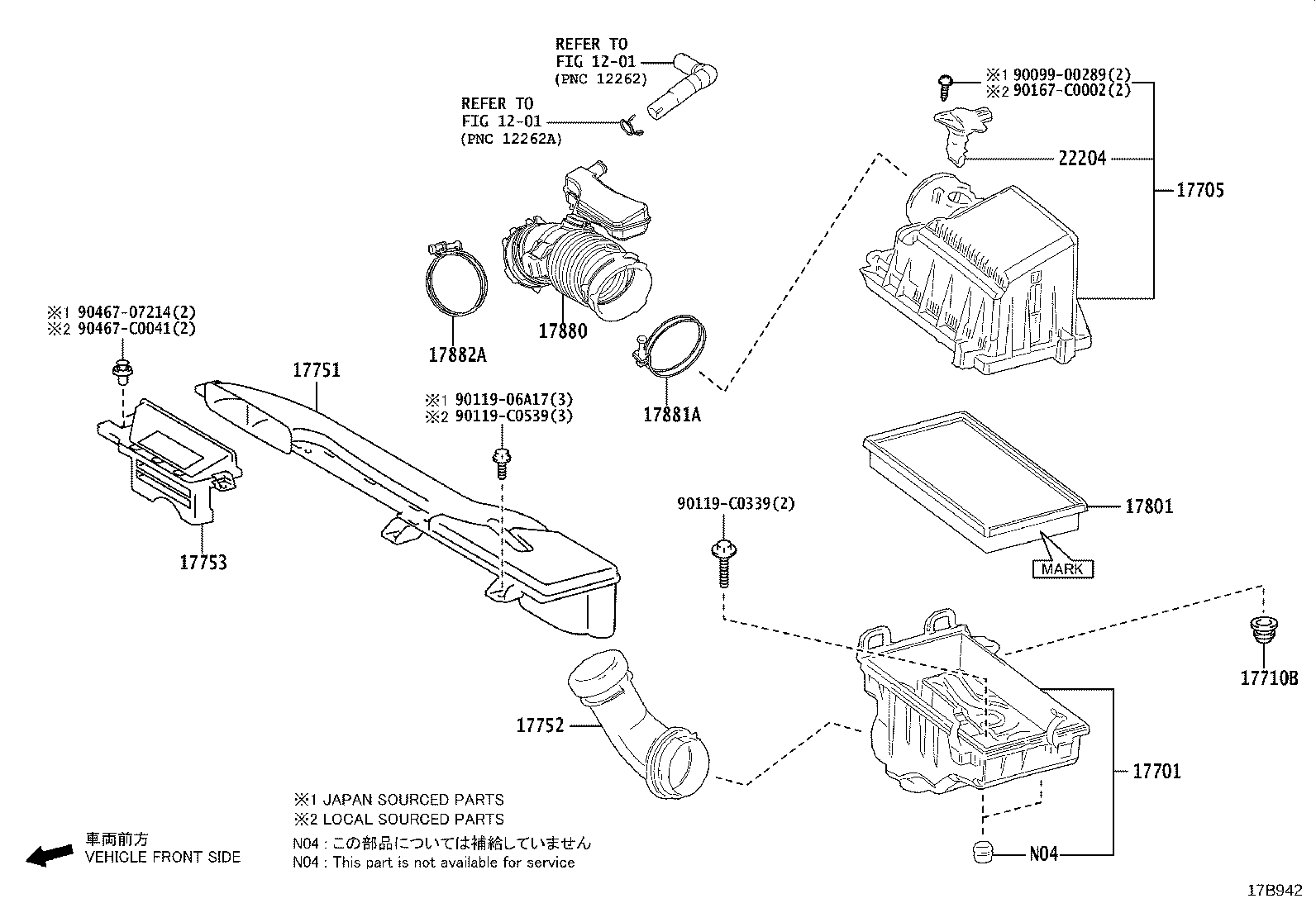

Figure 17A302A 17A302A 2018-07 → 2023-04 Figure 17B942 17B942 2023-04 → — Figure 17B608 17B608 2021-05 → —

Part groups

PNCDescription
12229A Pipe, Ventilation
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17753 Inlet, Air Cleaner, NO.3
17771A Bracket, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
