Toyota Izoa

2018-07 → present · chassis MAXA10,MAXH10 · catalogue 532310 · General

Supported model Data version 2021-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Drive Shaft

32 part groups · 5 illustrations

Illustrations

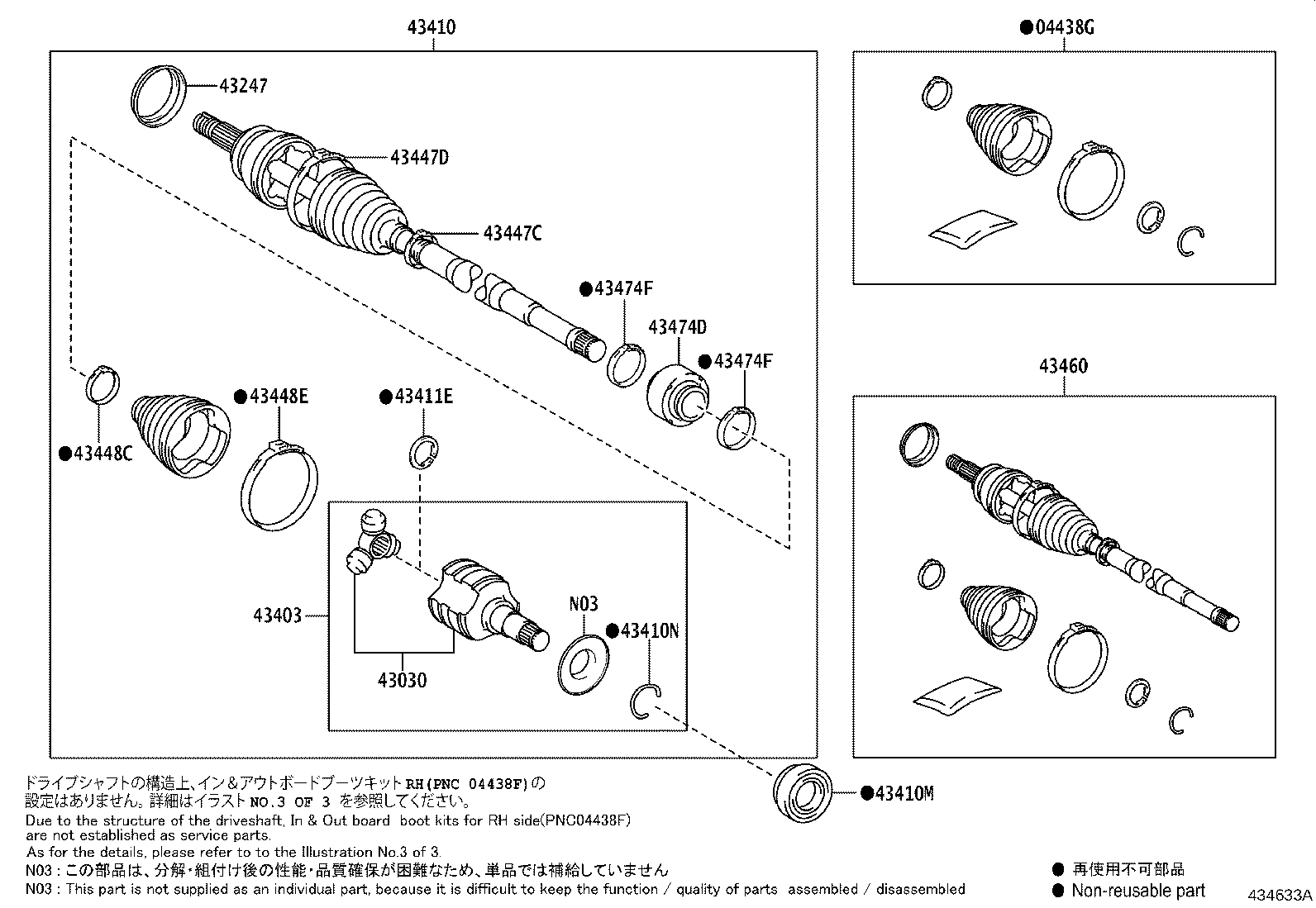

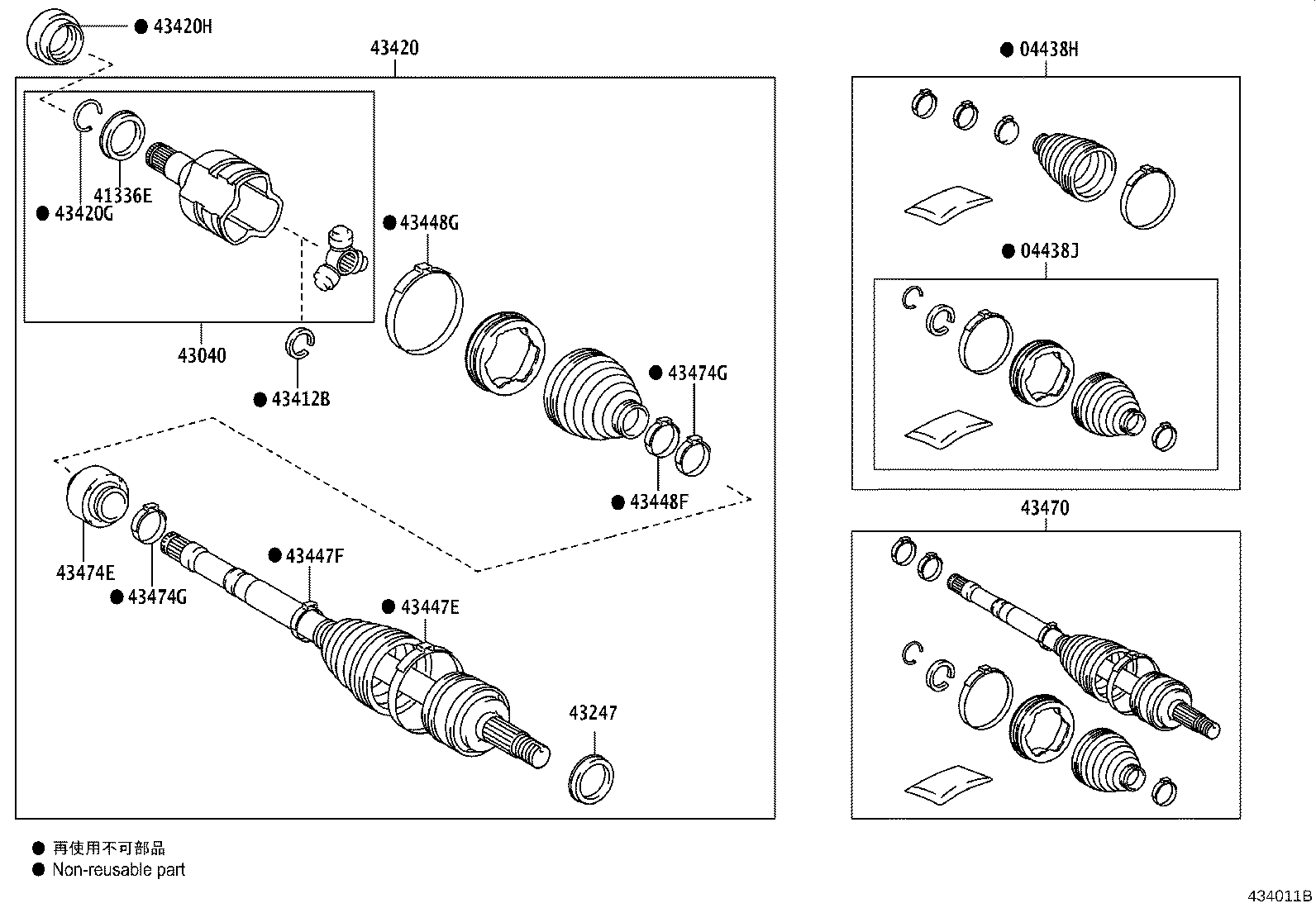

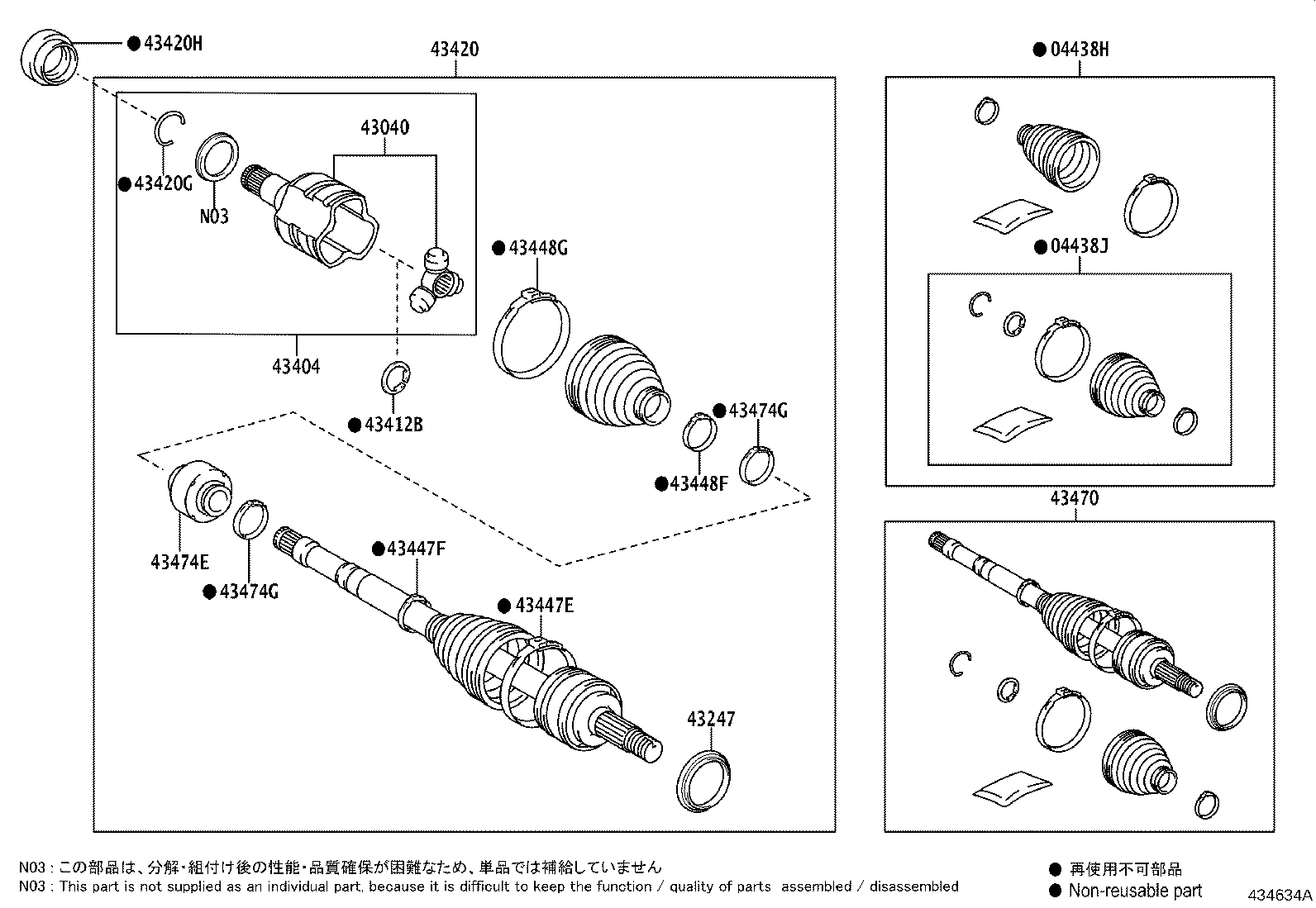

Figure 434010B 434010B 2018-07 → — Figure 434633A 434633A 2021-05 → — Figure 434011B 434011B 2018-07 → — Figure 434634A 434634A 2021-05 → — Figure 434012 434012 2018-07 → —

Part groups

PNCDescription
04438G Boot Kit, Front Drive Shaft Inboard Joint, RH
04438H Boot Kit, Front Drive Shaft, IN & Outboard, LH
04438J Boot Kit, Front Drive Shaft Inboard Joint, LH
41336D Cover, Front Drive Shaft Dust, RH
41336E Cover, Front Drive Shaft Dust, LH
43030 Joint Assy, Front Drive Inboard, RH
43040 Joint Assy, Front Drive Inboard, LH
43247 Deflector, Front Wheel Bearing Dust, NO.2
43403 Joint Set, Front Axle Inboard, RH
43404 Joint Set, Front Axle Inboard, LH
43410 Shaft Assy, Front Drive, RH
43410M Oil Seal, Front Drive Shaft, RH
43410N Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
43411E Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43412B Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43420 Shaft Assy, Front Drive, LH
43420G Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
43420H Oil Seal, Front Drive Shaft, LH
43447C Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447D Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447E Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43447F Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43448C Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448E Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448F Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43448G Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43460 Shaft Assy, Front Drive Outboard Joint, RH
43470 Shaft Assy, Front Drive Outboard Joint, LH
43474D Damper, Front Drive Shaft, RH
43474E Damper, Front Drive Shaft, LH
43474F Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
43474G Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
