Toyota Izoa

2018-07 → present · chassis MAXA10,MAXH10 · catalogue 532310 · General

Supported model Data version 2021-04

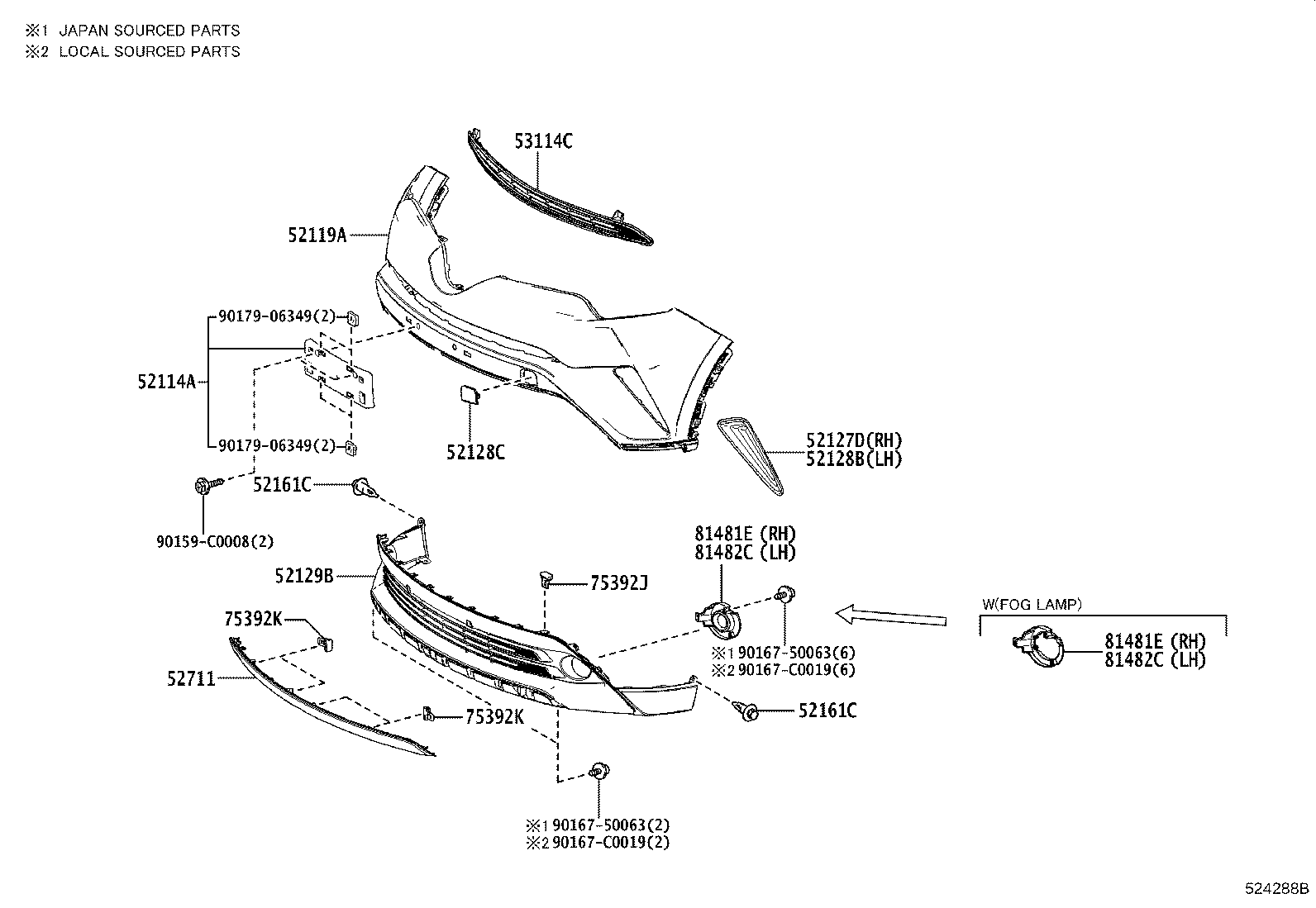

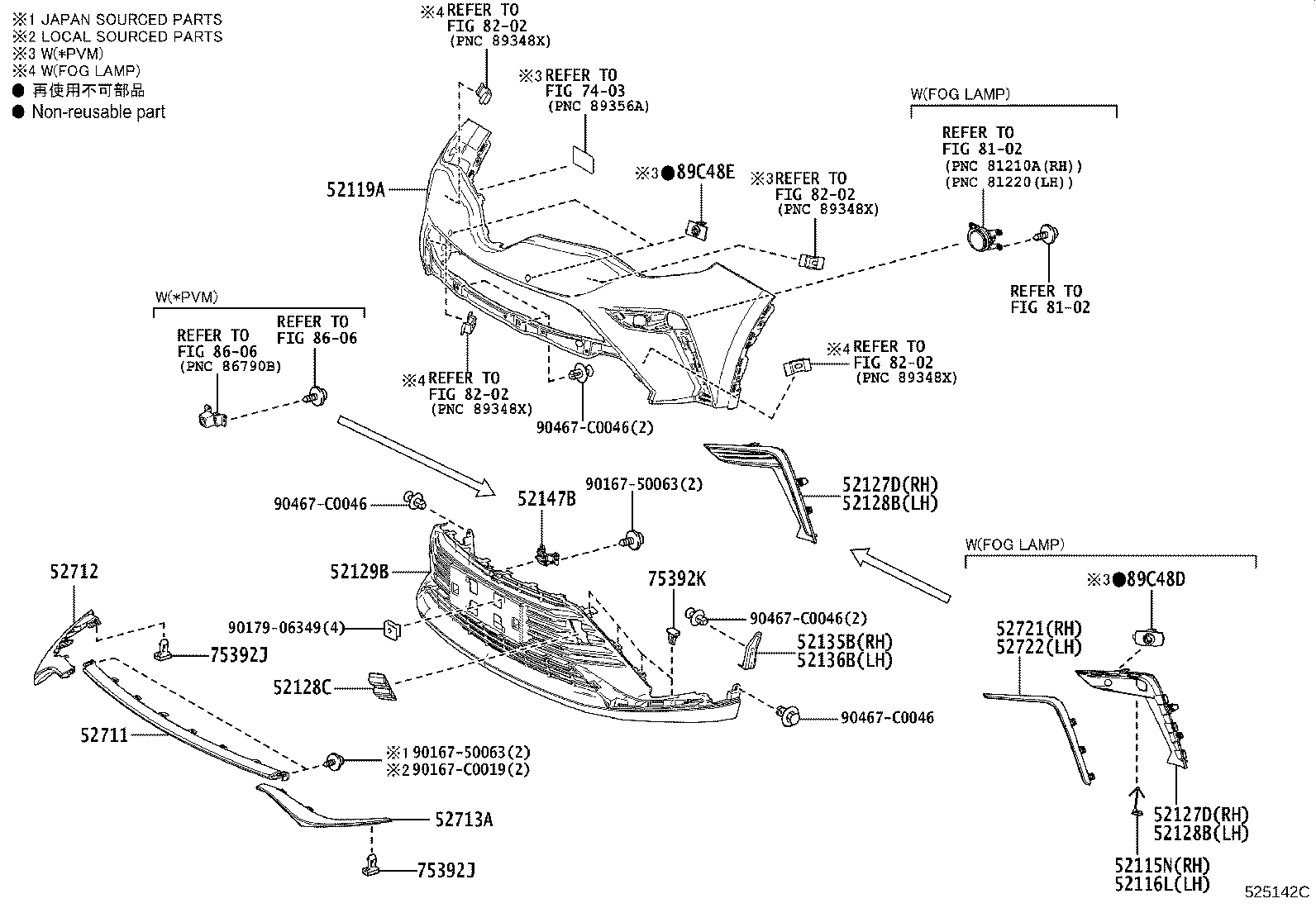

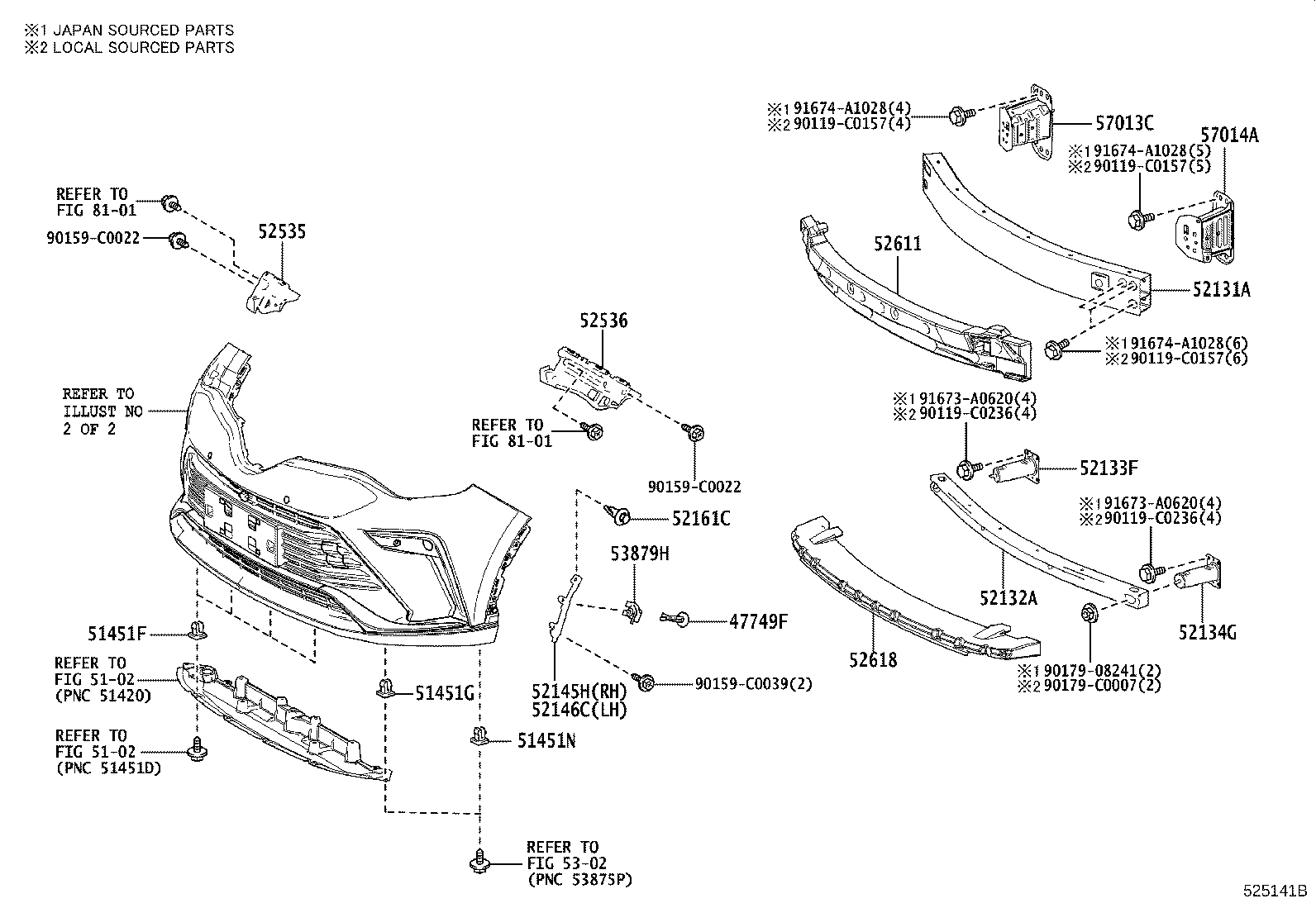

Front Bumper & Bumper Stay

41 part groups · 4 illustrations

PNC	Description
47749F	Clip, Pin Hold
51451F	Grommet, NO.1
51451G	Grommet, NO.2
51451N	Grommet, NO.3
52114A	Bracket, Front Bumper Extension Mounting
52115N	Insert, Front Bumper Extension, RH
52116L	Insert, Front Bumper Extension, LH
52119A	Cover, Front Bumper
52127D	Cover, Front Bumper Hole, RH
52128B	Cover, Front Bumper Hole, LH
52128C	Cover, Front Bumper Hole, LH
52129B	Cover, Front Bumper, Lower
52131A	Reinforcement, Front Bumper
52132A	Reinforcement, Front Bumper, NO.2
52133F	Bracket, Front Bumper, RH
52134G	Bracket, Front Bumper, LH
52135B	Bracket, Front Bumper, NO.1 RH
52136B	Bracket, Front Bumper, NO.1 LH
52145H	Stay, Front Bumper Side, RH
52146C	Stay, Front Bumper Side, LH
52147B	Bracket, Front Bumper Mounting
52161C	Piece, Front Bumper
52535	Retainer, Front Bumper Side, RH
52536	Retainer, Front Bumper Side, LH
52611	Absorber, Front Bumper Energy
52618	Absorber, Front Bumper, Lower
52711	Moulding, Front Bumper
52712	Moulding, Front Bumper Side, RH
52713A	Moulding, Front Bumper Side, LH
52721	Moulding, Front Bumper Extension, RH
52722	Moulding, Front Bumper Extension, LH
53114C	Grille, Radiator, Inner
53879H	Retainer, Front Fender Liner
57013C	Bracket Sub-assy, Front Side Member, RH
57014A	Bracket Sub-assy, Front Side Member, LH
75392J	Retainer, Outside Moulding
75392K	Retainer, Outside Moulding, NO.2
81481E	Cover, Fog Lamp, RH
81482C	Cover, Fog Lamp, LH
89C48D	Retainer, Ultrasonic Sensor, Front Corner
89C48E	Retainer, Ultrasonic Sensor, Front Center

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
