Toyota Izoa

2018-07 → present · chassis MAXA10,MAXH10 · catalogue 532310 · General

Supported model Data version 2021-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 3 illustrations

Illustrations

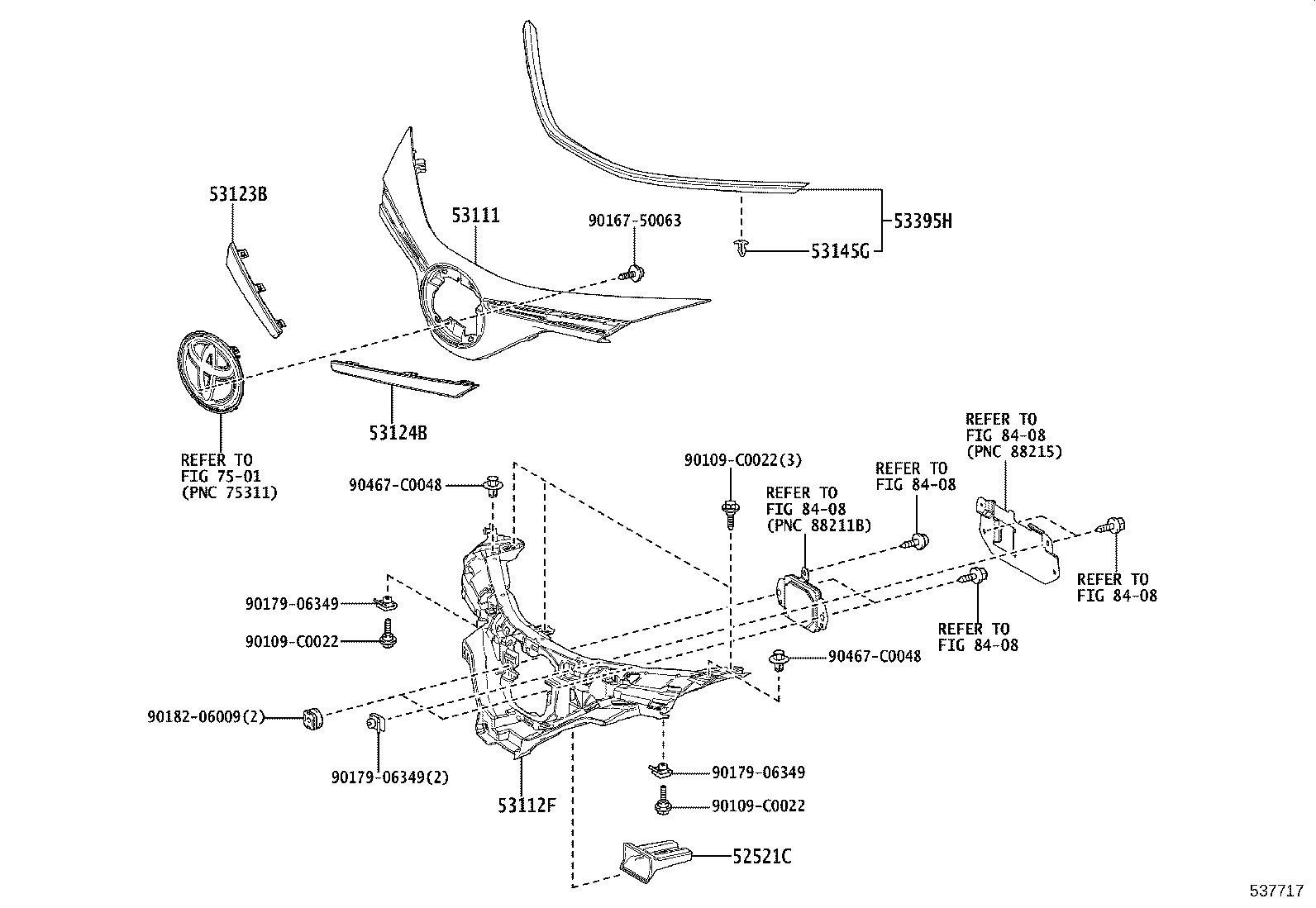

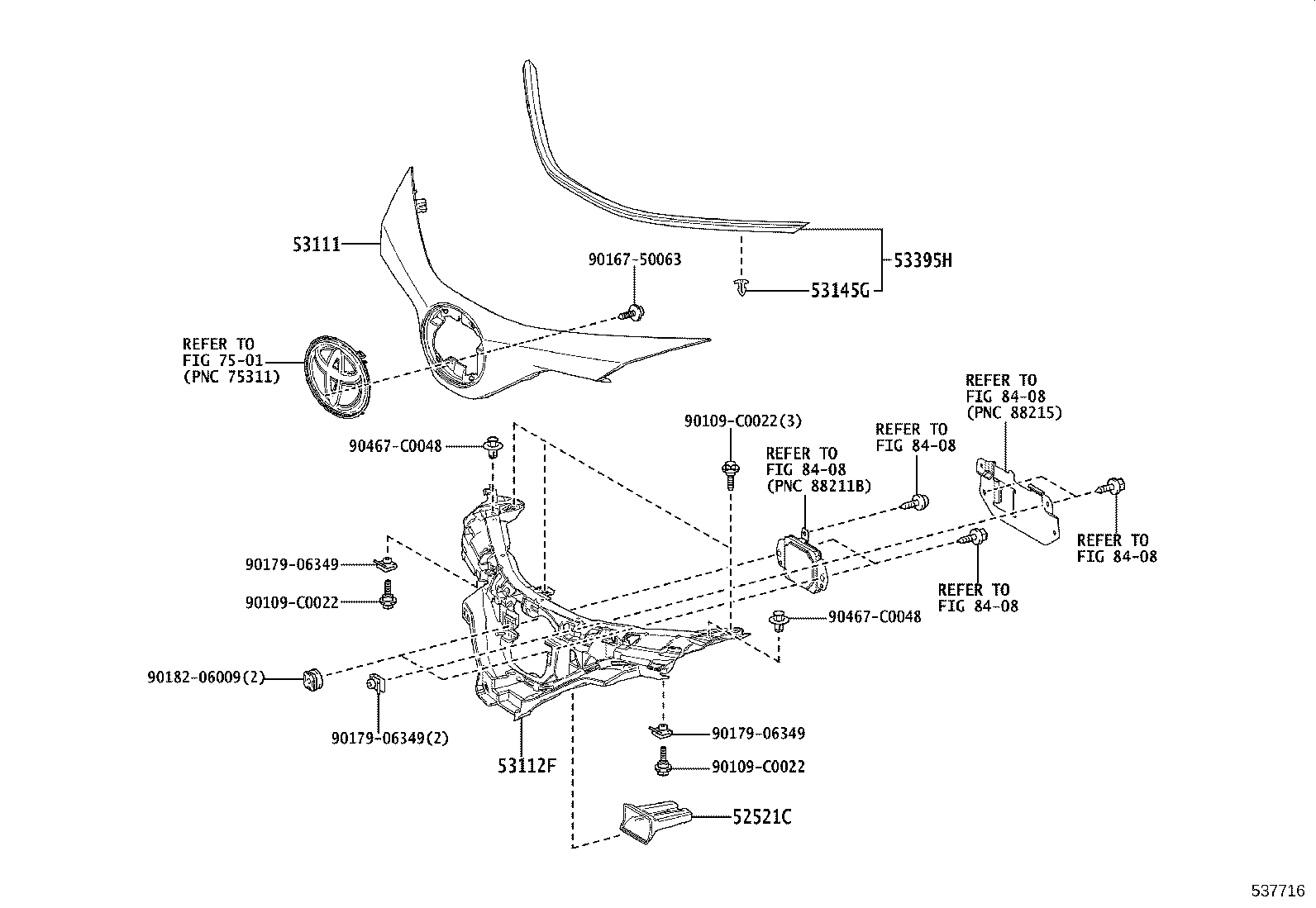

Figure 535639 535639 2018-07 → 2021-05 Figure 537716 537716 2021-05 → — Figure 537717 537717 2021-05 → —

Part groups

PNCDescription
52521C Retainer, Front Bumper, Upper
53111 Grille, Radiator
53112F Grille, Radiator, Inside
53123B Moulding, Radiator Grille Side, RH
53124B Moulding, Radiator Grille Side, LH
53145G Clip, Radiator Grille
53395H Seal, Hood TO Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
