Toyota Izoa

2018-07 → present · chassis MAXA10,MAXH10 · catalogue 532310 · General

Supported model Data version 2021-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

9 part groups · 4 illustrations

Illustrations

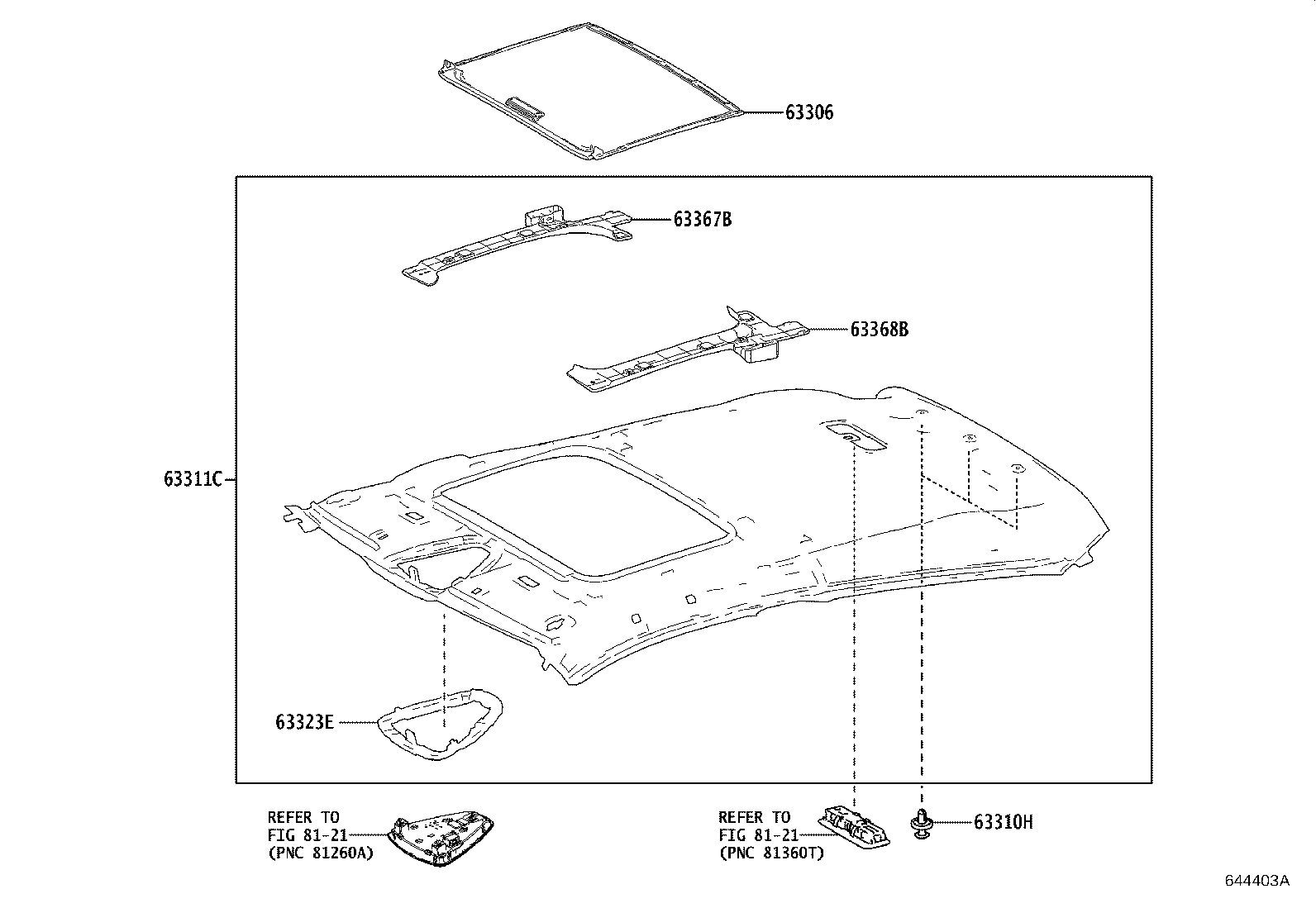

Figure 644402A 644402A 2018-07 → 2021-05 Figure 644402A 644402A 2021-05 → — Figure 644403A 644403A 2018-07 → 2021-05 Figure 644403A 644403A 2021-05 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310H Clip(FOR ROOF HEADLINING)
63311C Headlining, Roof
63323E Case, Headlining Lamp
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63367B Plate, Roof Headlining Set, NO.2 RH
63368B Plate, Roof Headlining Set, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
