Toyota Izoa

2018-07 → present · chassis MAXA10,MAXH10 · catalogue 532310 · General

Supported model Data version 2021-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

14 part groups · 2 illustrations

Illustrations

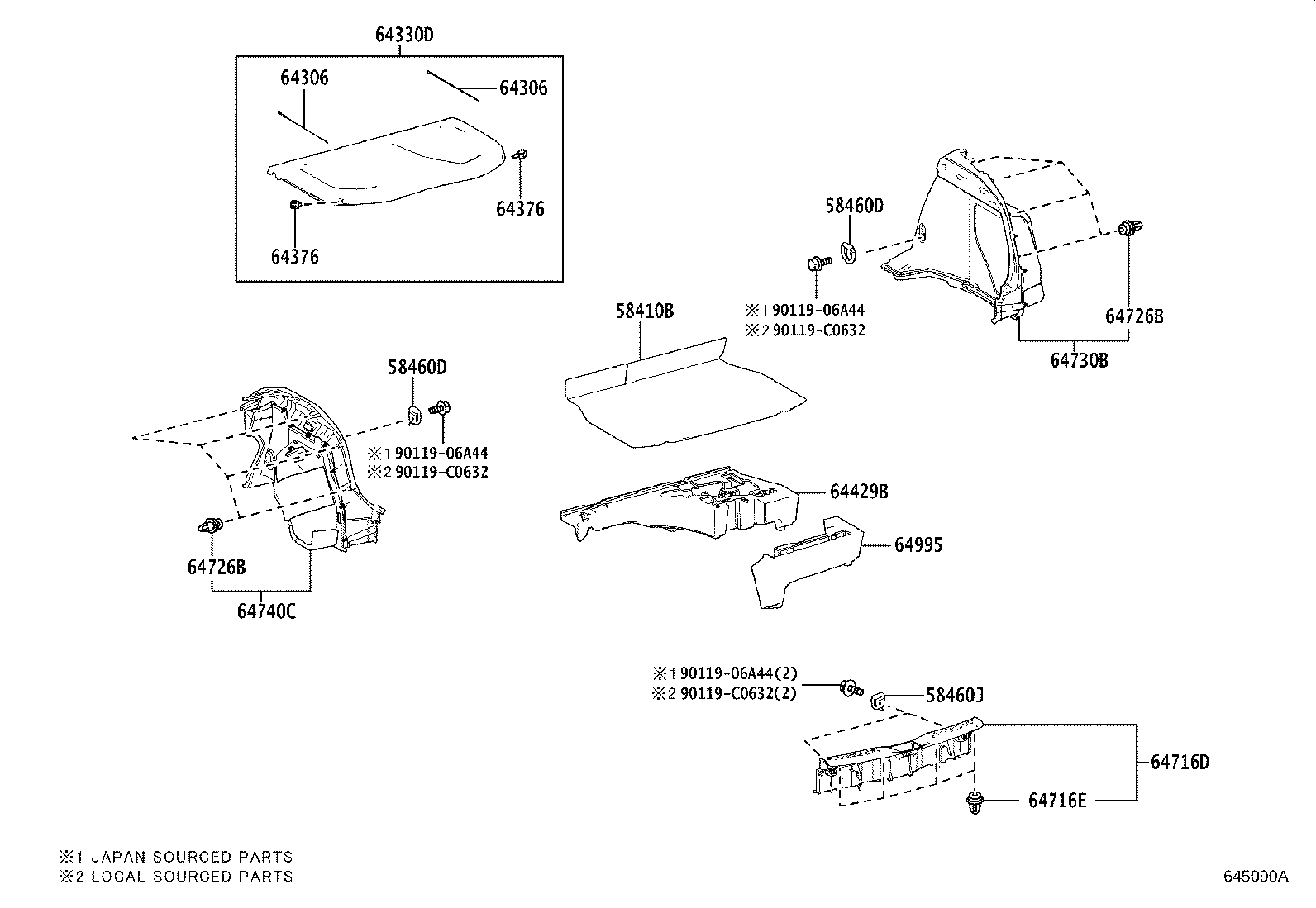

Figure 644404B 644404B 2018-07 → — Figure 645090A 645090A 2021-05 → —

Part groups

PNCDescription
58410B Board Assy, Deck
58460D Striker Assy, Luggage Hold Belt
58460J Striker Assy, Luggage Hold Belt
64306 Suspender Sub-assy, Package Tray Trim
64330D Panel Assy, Package Tray Trim
64376 Spacer, Package Tray Trim, NO.2
64429B Box, Luggage Room
64716D Cover, Deck Trim, Rear
64716E Clip(FOR DECK TRIM REAR COVER)
64726B Clip, Deck Rear Trim
64730B Panel Assy, Deck Trim Side, RH
64740C Panel Assy, Deck Trim Side, LH
64995 Box, Deck Floor, RH
64997 Box, Deck Floor, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
