Toyota Izoa

2018-07 → present · chassis MAXA10,MAXH10 · catalogue 532310 · General

Supported model Data version 2021-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

29 part groups · 7 illustrations

Illustrations

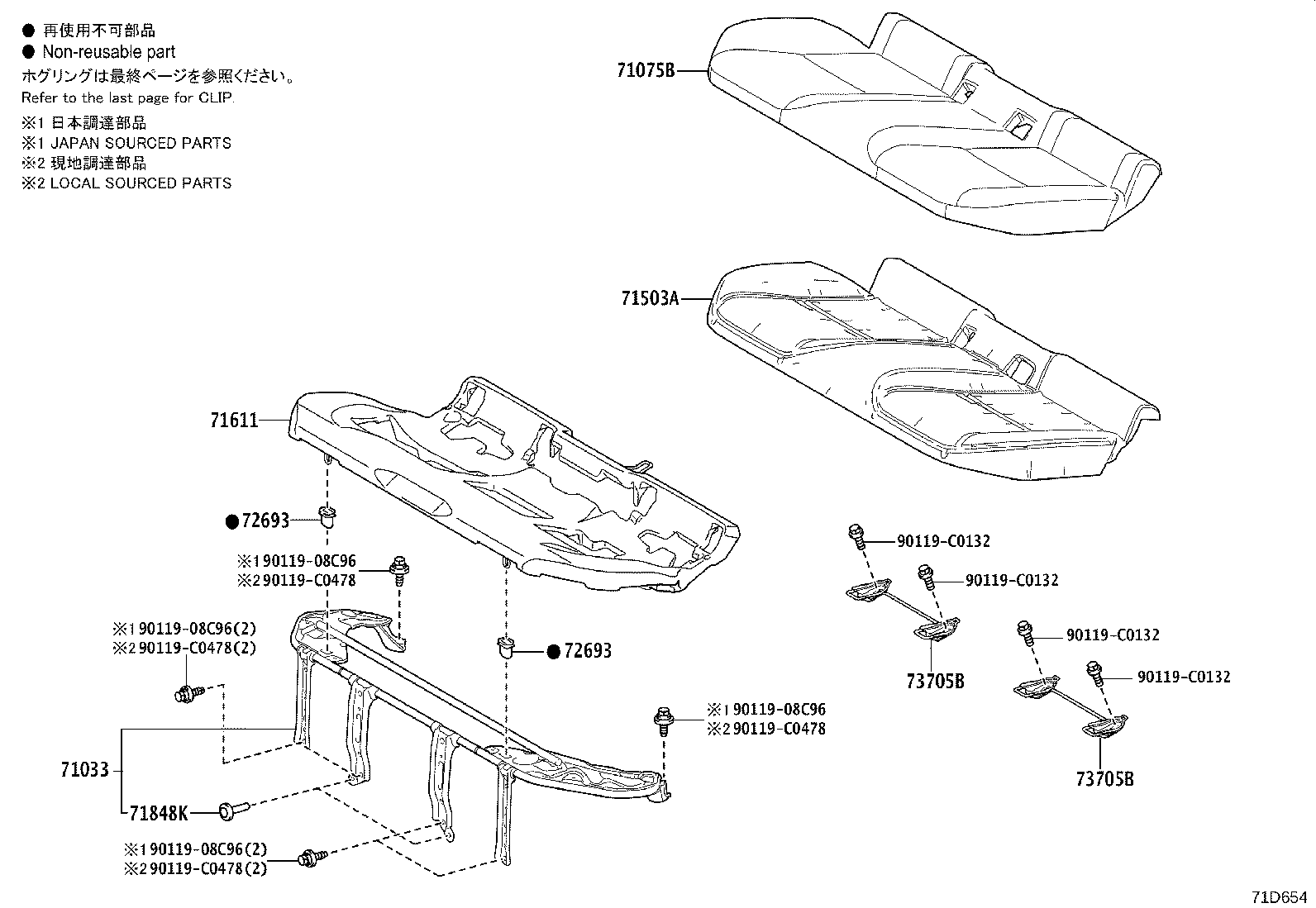

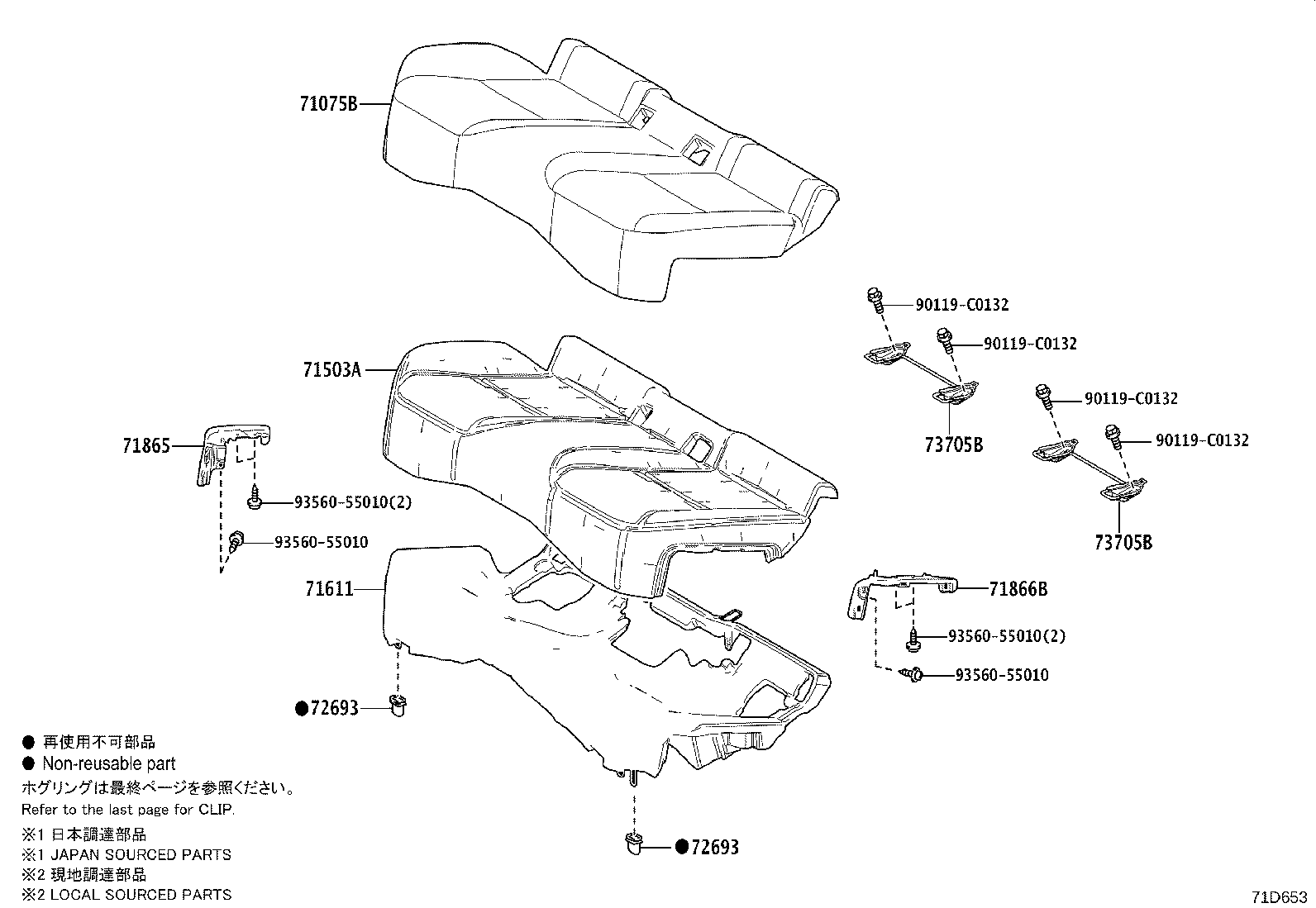

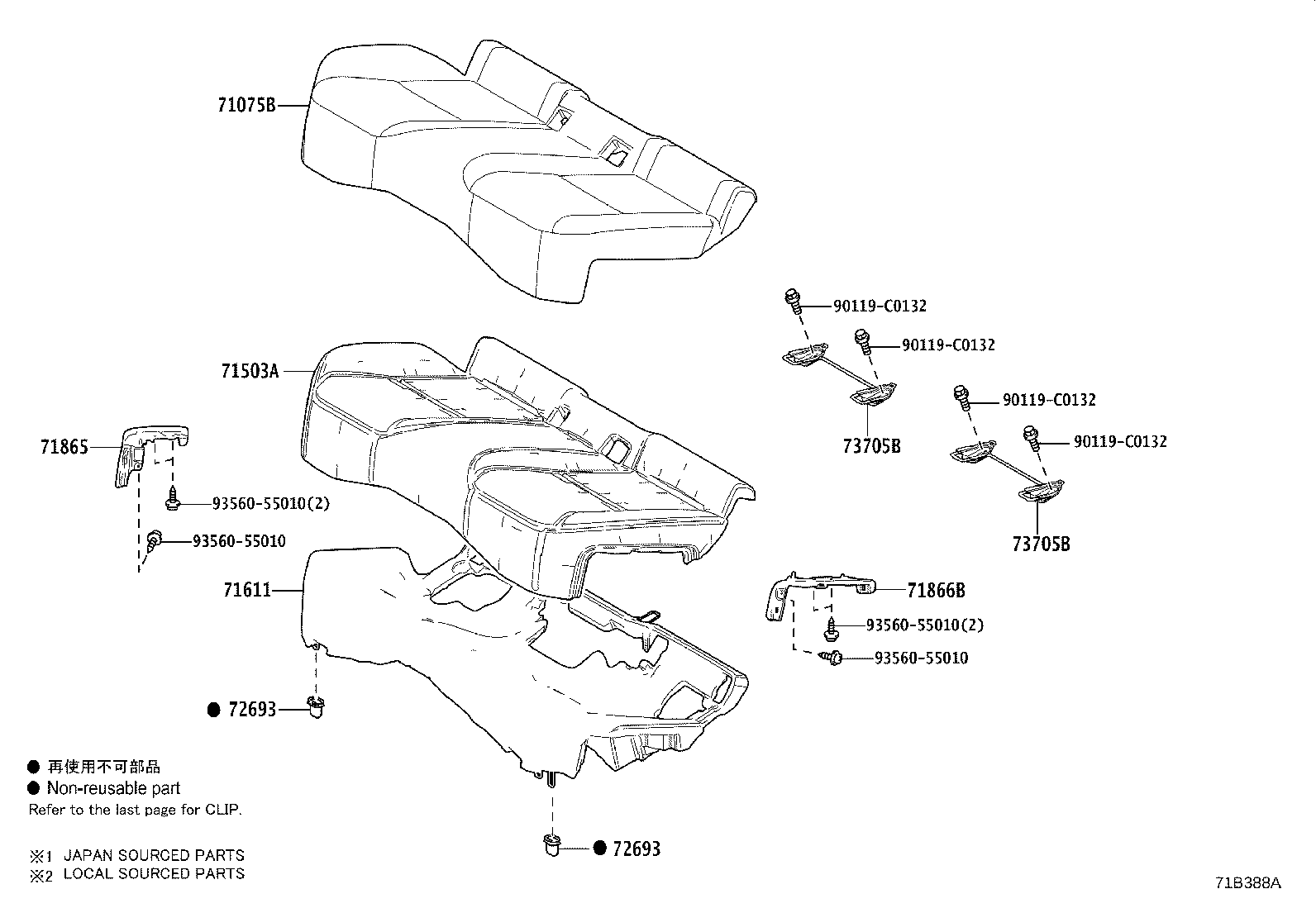

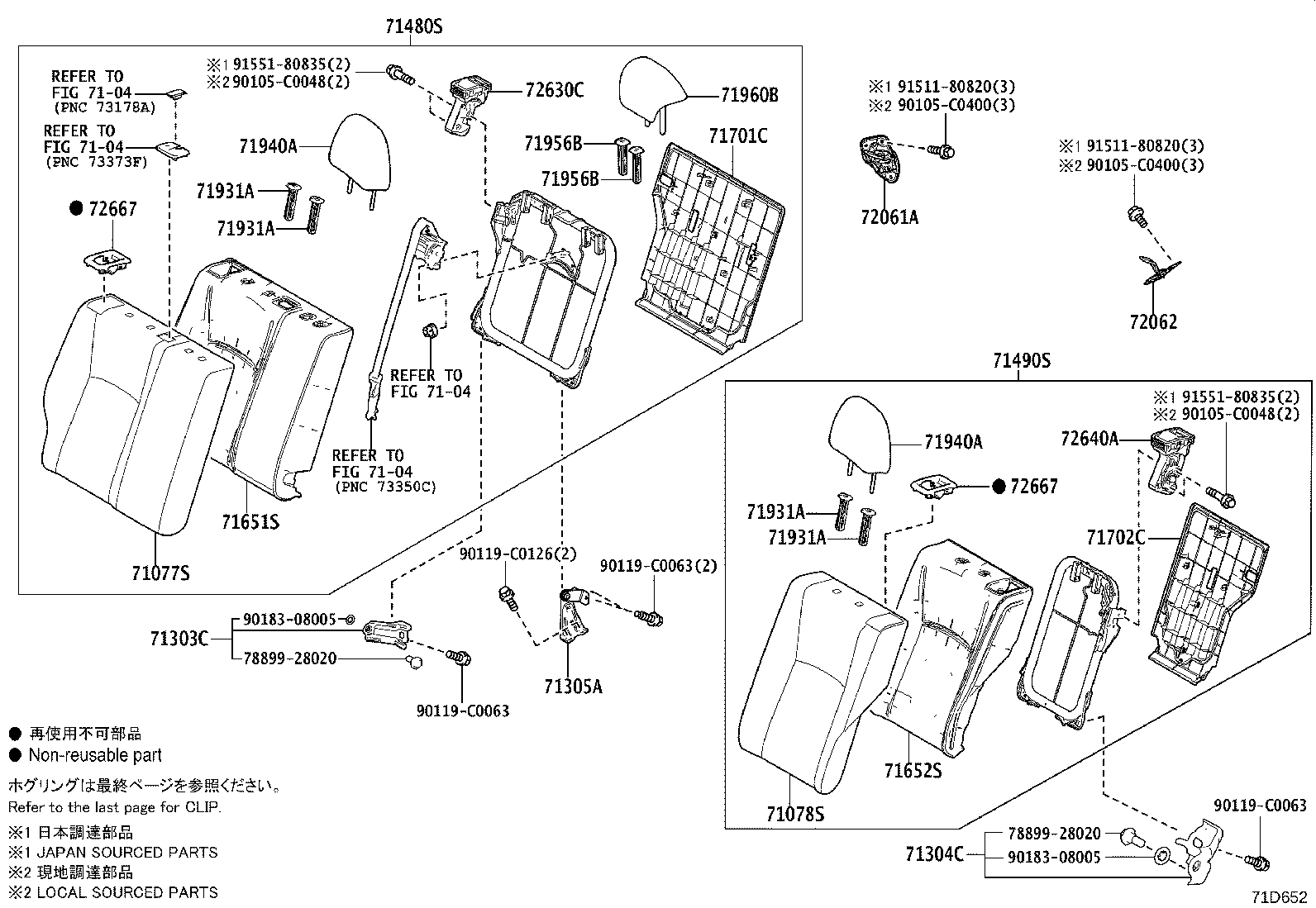

Figure 71B387D 71B387D 2018-07 → 2021-05 Figure 71D652 71D652 2021-05 → — Figure 71B388A 71B388A 2018-07 → 2021-05 Figure 71D653 71D653 2021-05 → — Figure 71D654 71D654 2021-05 → — Figure 71A615 71A615 2018-07 → 2021-05 Figure 71A615 71A615 2021-05 → —

Part groups

PNCDescription
71033 Leg Sub-assy, Rear Seat Cushion
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305A Hinge Sub-assy, Rear Seatback, Center
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71503A Pad Sub-assy, Rear Seat Cushion
71611 Pad, Rear Seat Cushion
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71701C Board Sub-assy, Rear Seatback, RH
71702C Board Sub-assy, Rear Seatback, LH
71848K Cap, Seat Adjuster Cover
71865 Bezel, Rear Seat Cover, NO.1
71866B Bezel, Rear Seat Cover, NO.2
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71956B Support, Rear Seat Headrest
71960B Headrest Assy, Rear Seat, Center
72061A Base Sub-assy, Rear Seatback Lock, RH
72062 Base Sub-assy, Rear Seatback Lock, LH
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72667 Bezel, Rear Seatback Lock, Upper
72693 Hook, Rear Seat Cushion Lock
73705B Bracket Sub-assy, Cross Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
