Toyota Izoa

2018-07 → present · chassis MAXA10,MAXH10 · catalogue 532310 · General

Supported model Data version 2021-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

13 part groups · 4 illustrations

Illustrations

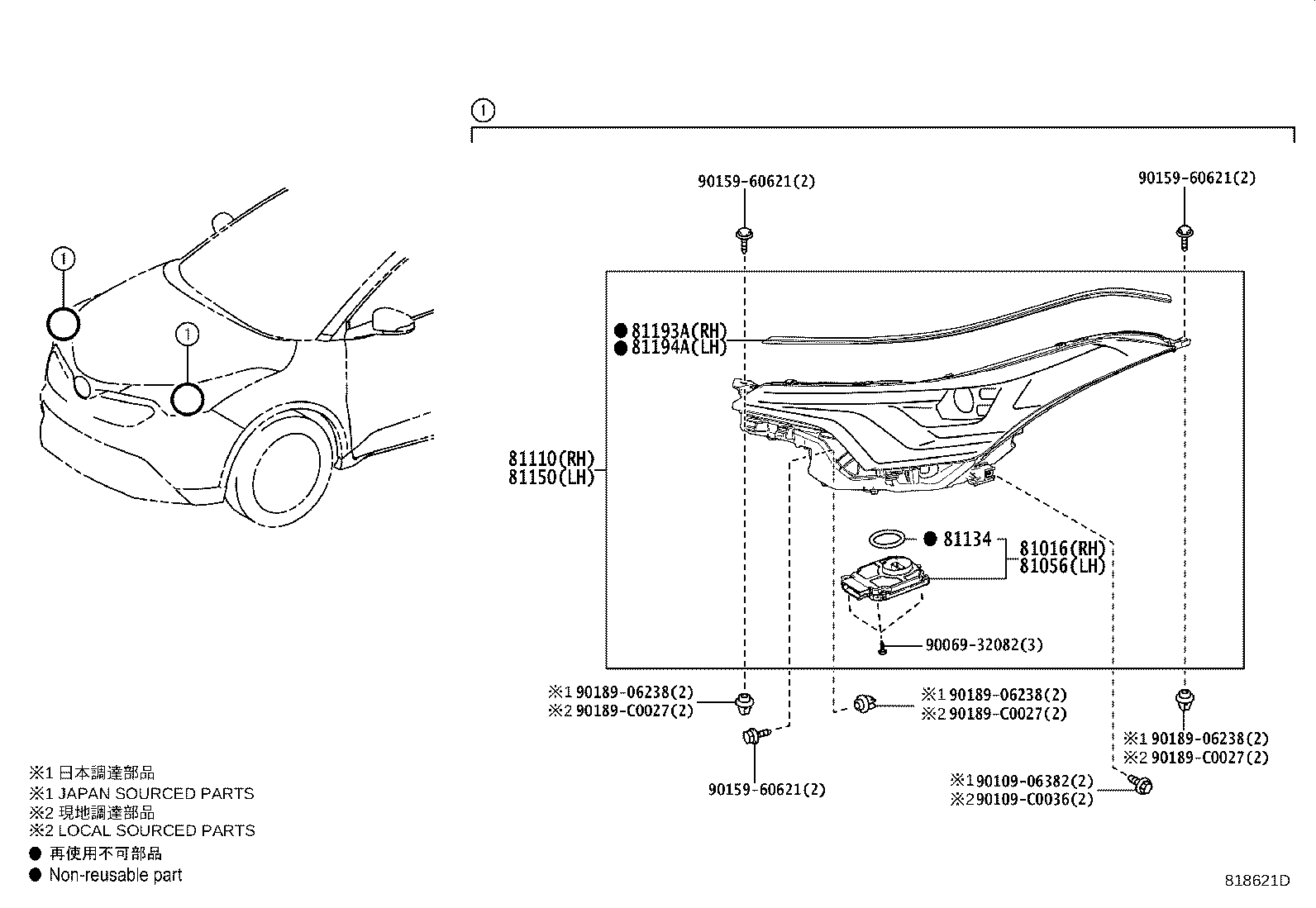

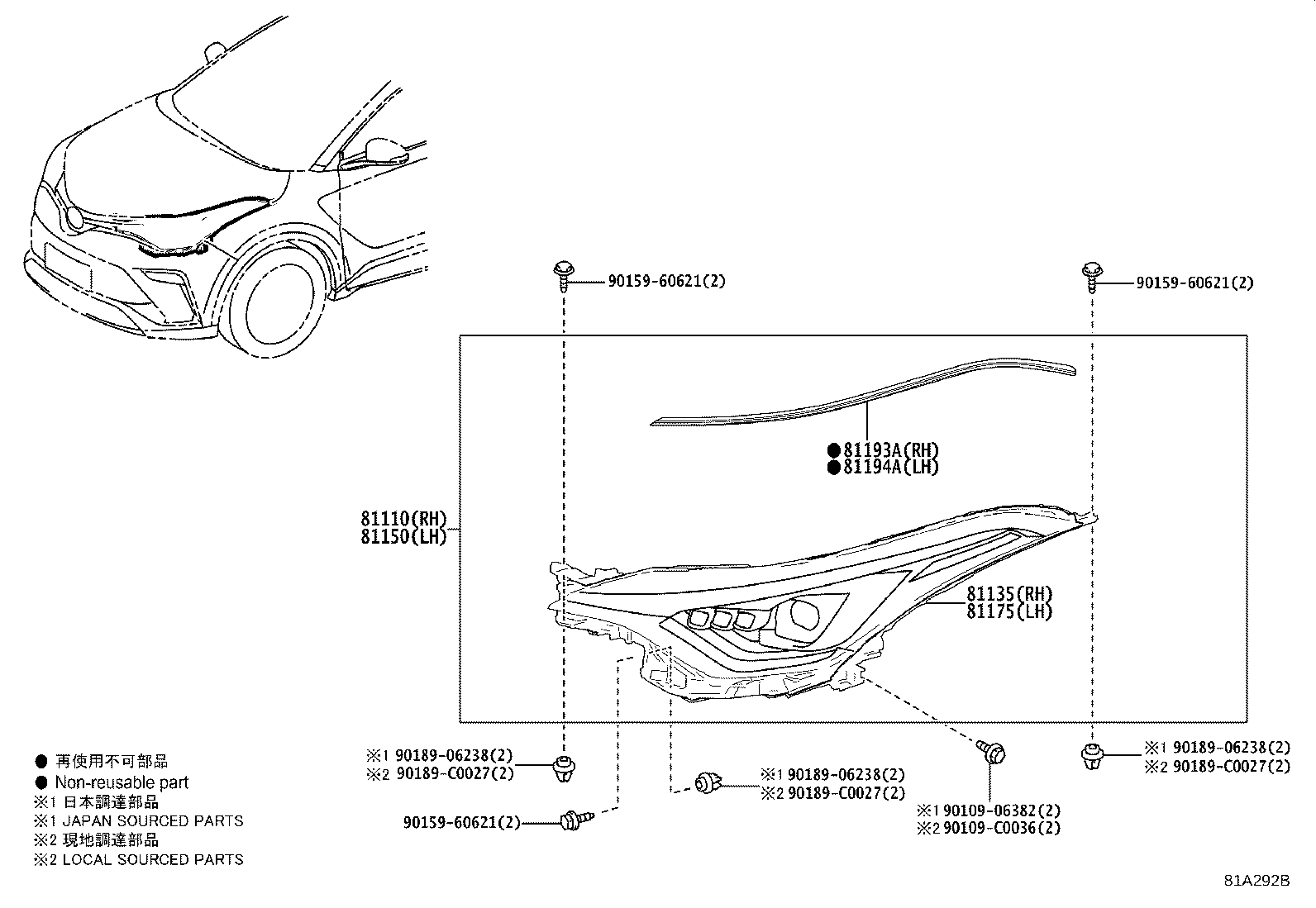

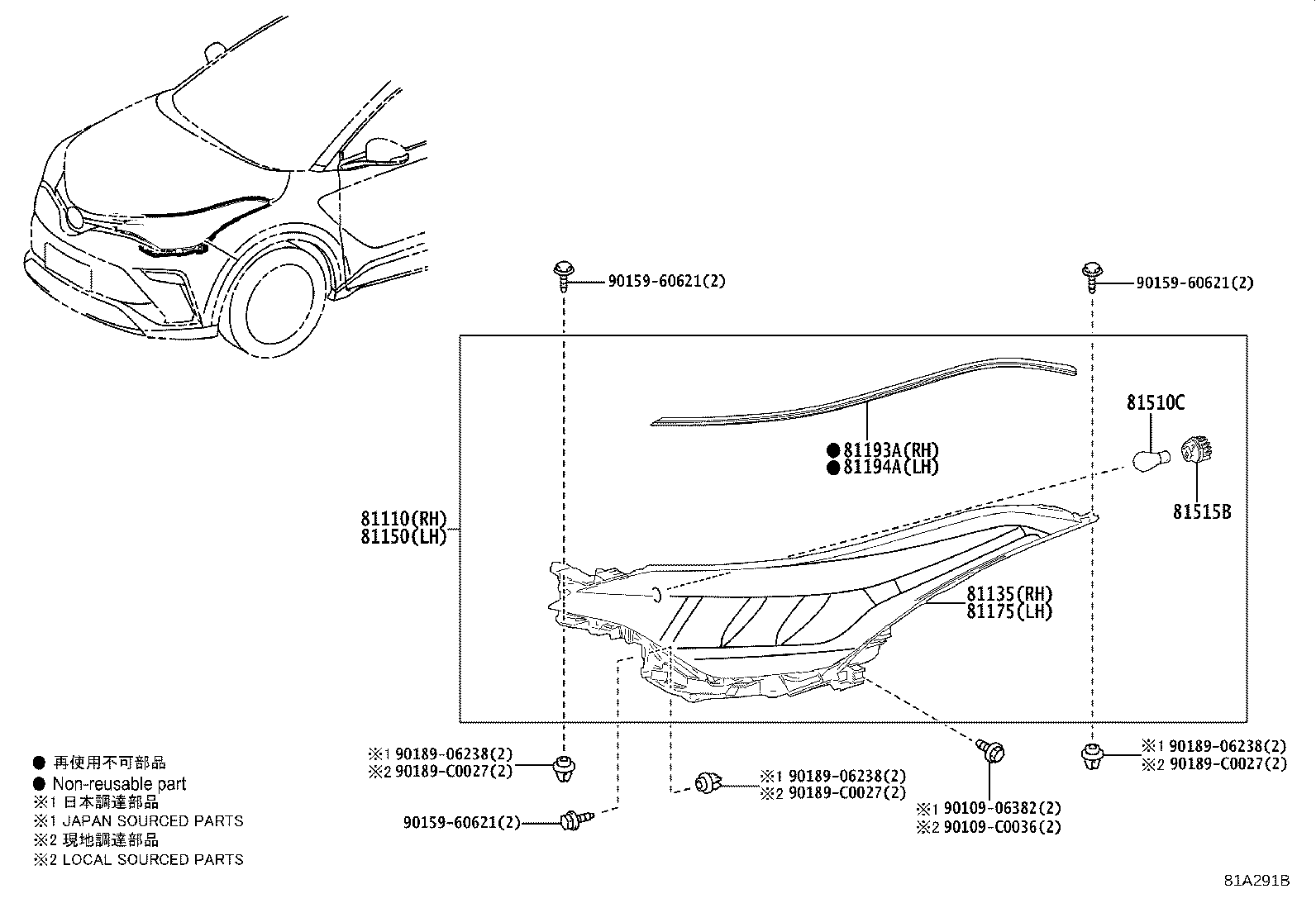

Figure 818620D 818620D 2018-07 → 2021-05 Figure 818621D 818621D 2018-07 → 2021-05 Figure 81A291B 81A291B 2021-05 → — Figure 81A292B 81A292B 2021-05 → —

Part groups

PNCDescription
81016 Computer Sub-assy, Headlamp, RH NO.1
81056 Computer Sub-assy, Headlamp, LH NO.1
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81139 Cover, Headlamp Socket
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81193A Protector, Headlamp, RH
81194A Protector, Headlamp, LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
