Toyota Izoa
2018-07 → present · chassis MAXA10,MAXH10 · catalogue 532310 · General
Supported model
Data version 2021-04

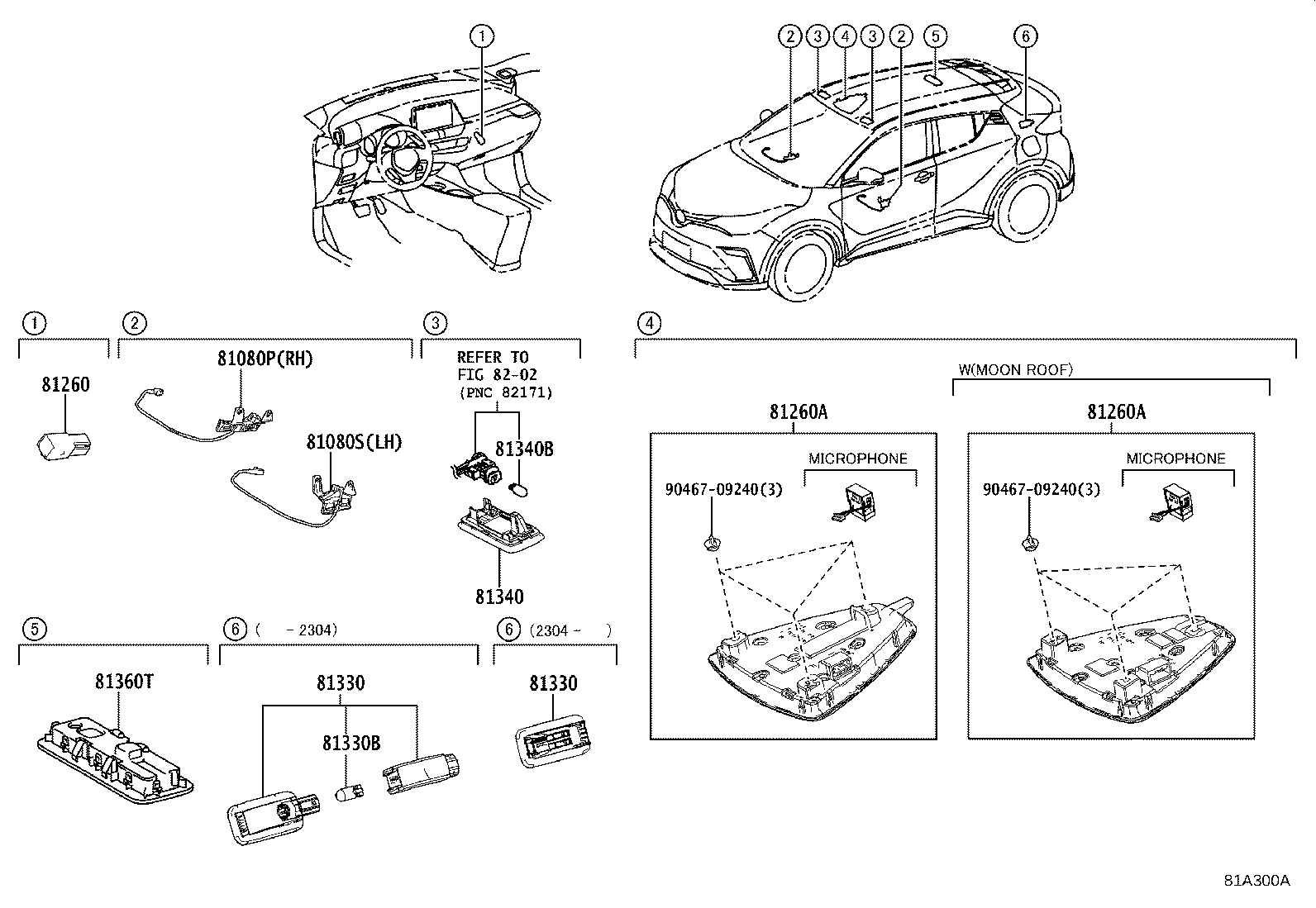

Interior Lamp
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81080P | Lamp Assy, Interior Illumination, NO.1 RH |
| 81080S | Lamp Assy, Interior Illumination, NO.1 LH |
| 81260 | Lamp Assy, Glove Box |
| 81260A | Lamp Assy, Map |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81360T | Lamp Assy, Spot |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
