Toyota Izoa

2018-07 → present · chassis MAXA10,MAXH10 · catalogue 532310 · General

Supported model Data version 2021-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

7 part groups · 3 illustrations

Illustrations

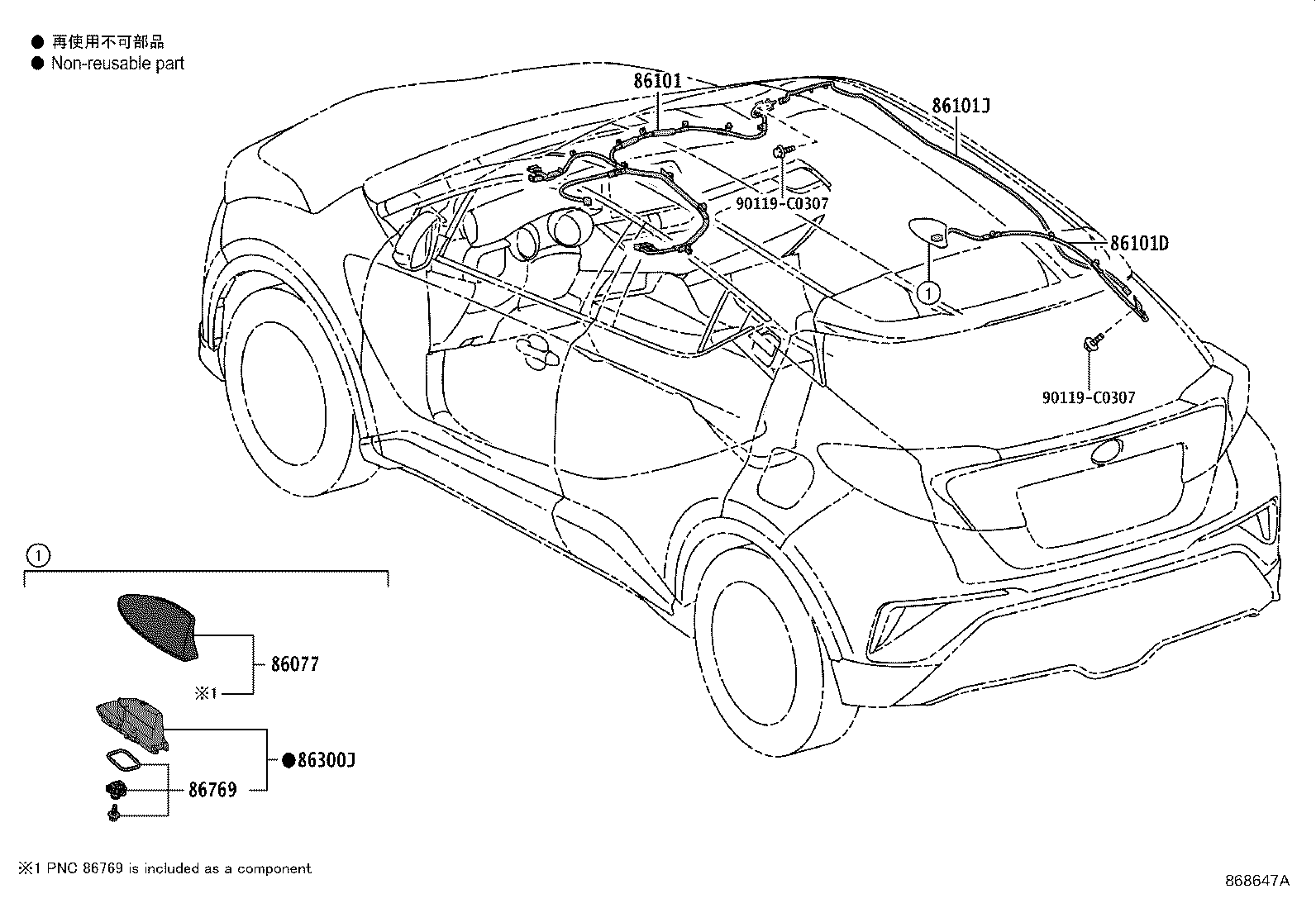

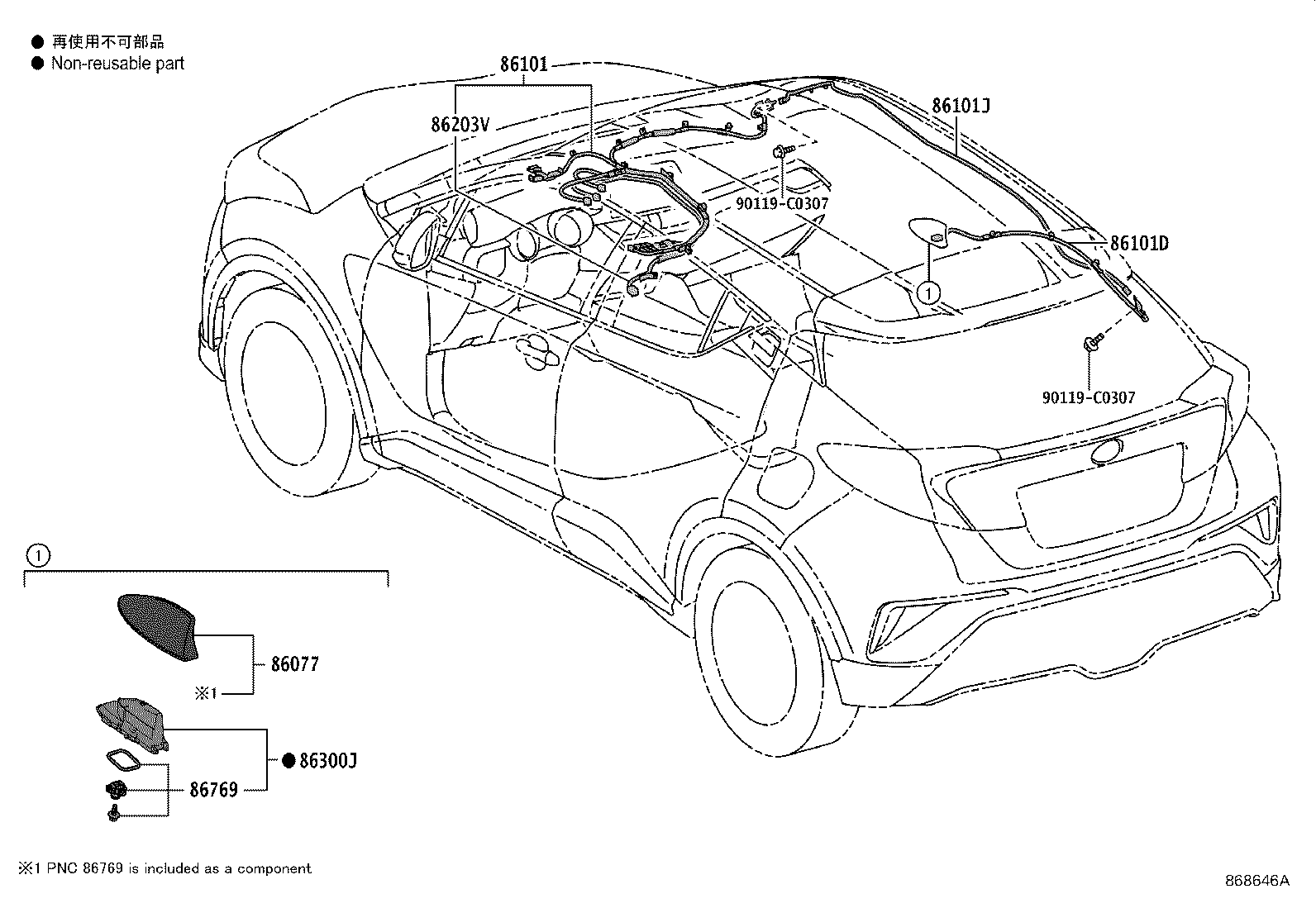

Figure 867255B 867255B 2018-07 → 2021-05 Figure 868646A 868646A 2021-05 → — Figure 868647A 868647A 2021-05 → —

Part groups

PNCDescription
86077 Cover Kit, Antenna
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86203V Wire Sub Assy, Radio
86300J Antenna Assy, Roof
86769 Housing, Roof Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
