Toyota Izoa
2018-07 → present · chassis MAXA10,MAXH10 · catalogue 532310 · General
Supported model
Data version 2021-04

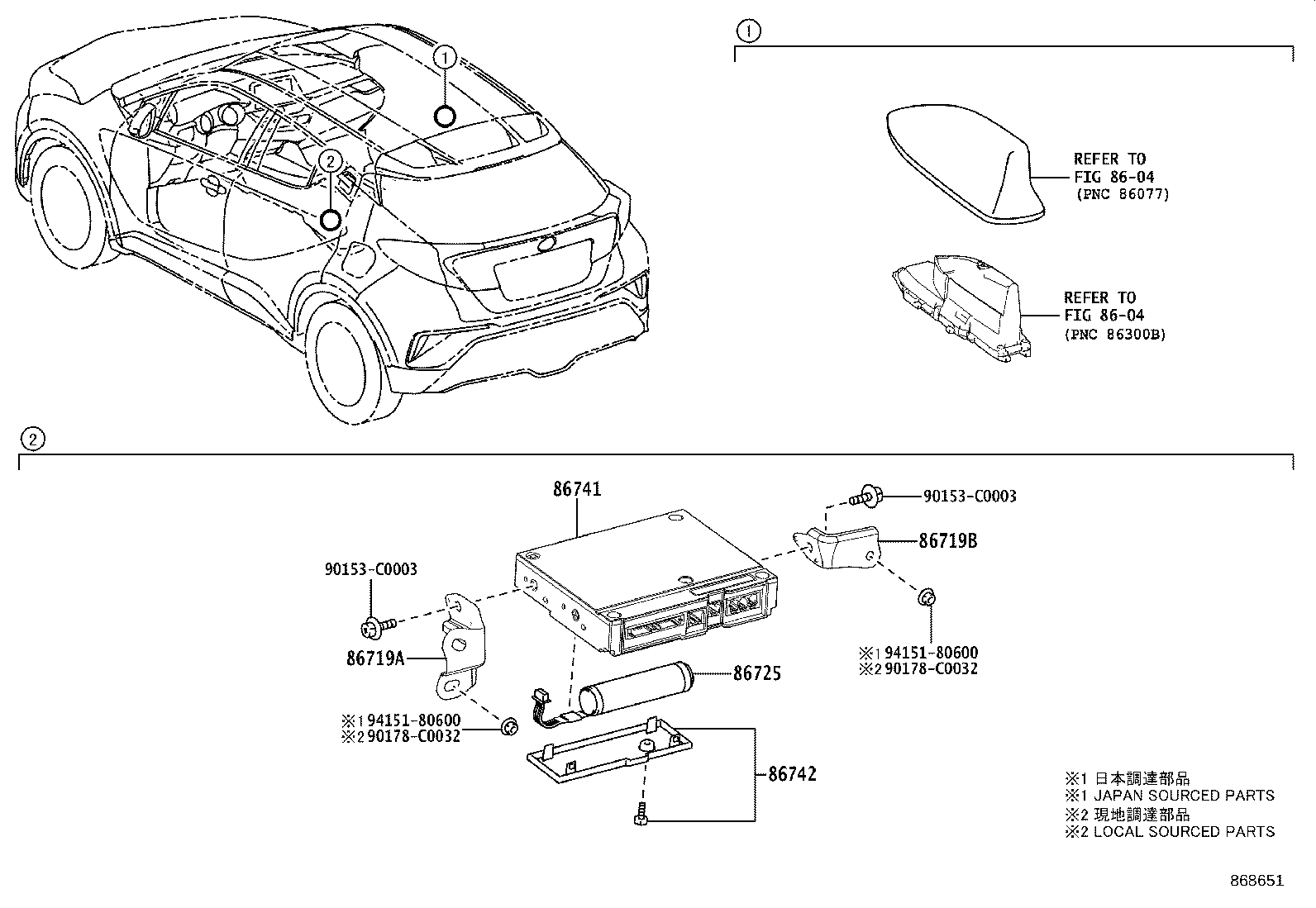

Telephone & Mayday
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86250D | Microphone Assy, Amplifier |
| 86719A | Bracket, Telephone NO.1 |
| 86719B | Bracket, Telephone NO.2 |
| 86725 | Battery, Mobilephone |
| 86741 | Transceiver, Telephone |
| 86742 | Cover, Transceiver |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
