Toyota Izoa

2018-07 → present · chassis MAXA10,MAXH10 · catalogue 532310 · General

Supported model Data version 2021-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Pre-collision System

6 part groups · 2 illustrations

Illustrations

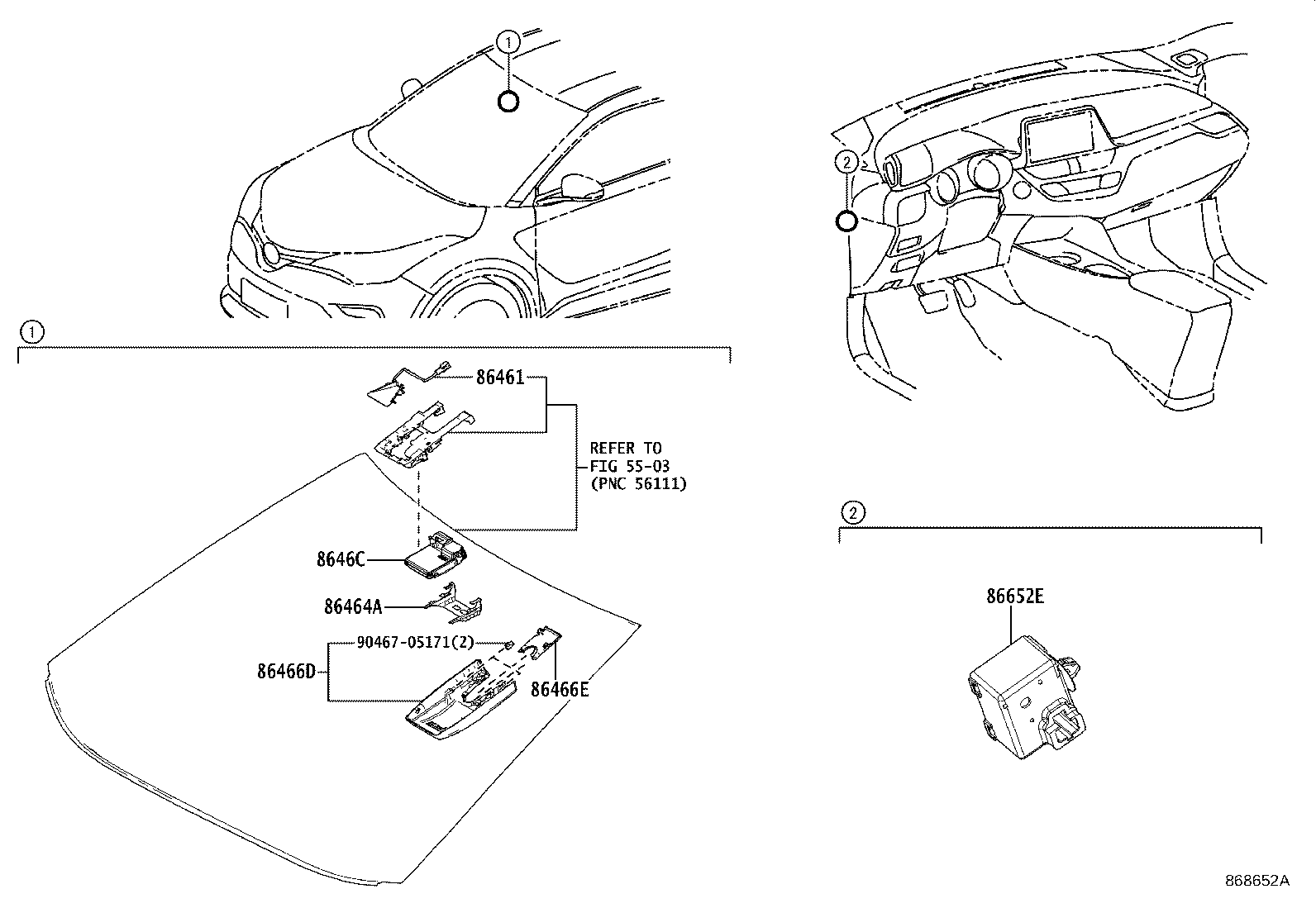

Figure 867252B 867252B 2018-07 → 2021-05 Figure 868652A 868652A 2021-05 → —

Part groups

PNCDescription
86461 Hood, Forward Recognition
86464A Latch, Forward Recognition
86466D Cover, Forward Recognition, NO.1
86466E Cover, Forward Recognition, NO.2
8646C Camera, Forward Recognition
86652E Buzzer, Pre-collision City
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
