Toyota C-hr(CHINA)

2018-08 → present · chassis MAXA10,MAXH10 · catalogue 533310 · General

Supported model Data version 2021-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

5 part groups · 2 illustrations

Illustrations

Figure 535665B

535665B 2018-08 → 2021-06

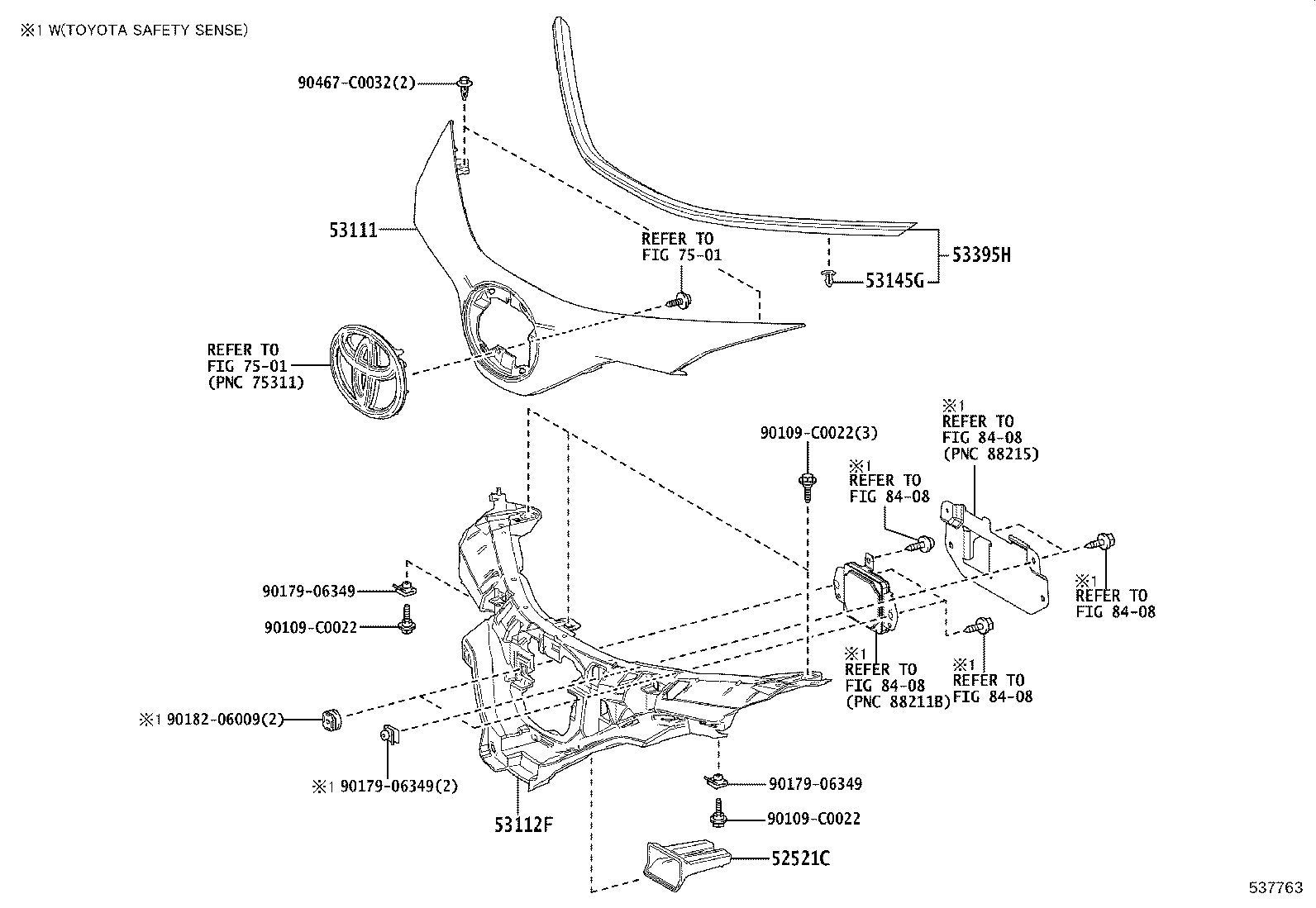

537763 2021-06 → —

Part groups

PNC	Description
52521C	Retainer, Front Bumper, Upper
53111	Grille, Radiator
53112F	Grille, Radiator, Inside
53145G	Clip, Radiator Grille
53395H	Seal, Hood TO Radiator Grille

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
