Toyota C-hr(CHINA)

2018-08 → present · chassis MAXA10,MAXH10 · catalogue 533310 · General

Supported model Data version 2021-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

4 part groups · 2 illustrations

Illustrations

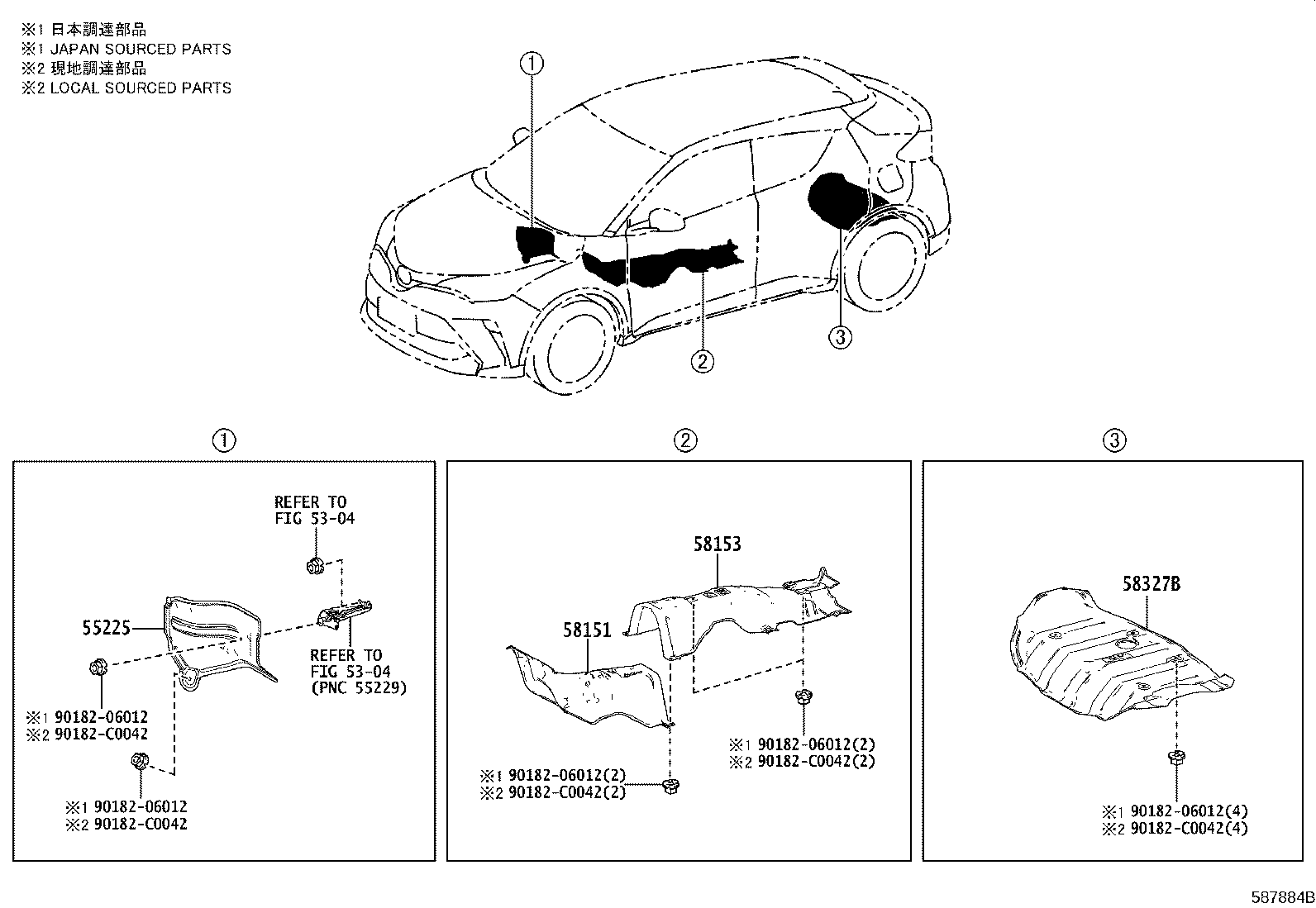

Figure 586667B 586667B 2018-08 → — Figure 587884B 587884B 2021-06 → —

Part groups

PNCDescription
55225 Insulator, Dash Panel Heat
58151 Insulator, Front Floor Heat, NO.1
58153 Insulator, Front Floor Heat, NO.2
58327B Insulator, Main Muffler Heat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
