Toyota C-hr(CHINA)

2018-08 → present · chassis MAXA10,MAXH10 · catalogue 533310 · General

Supported model Data version 2021-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

20 part groups · 2 illustrations

Illustrations

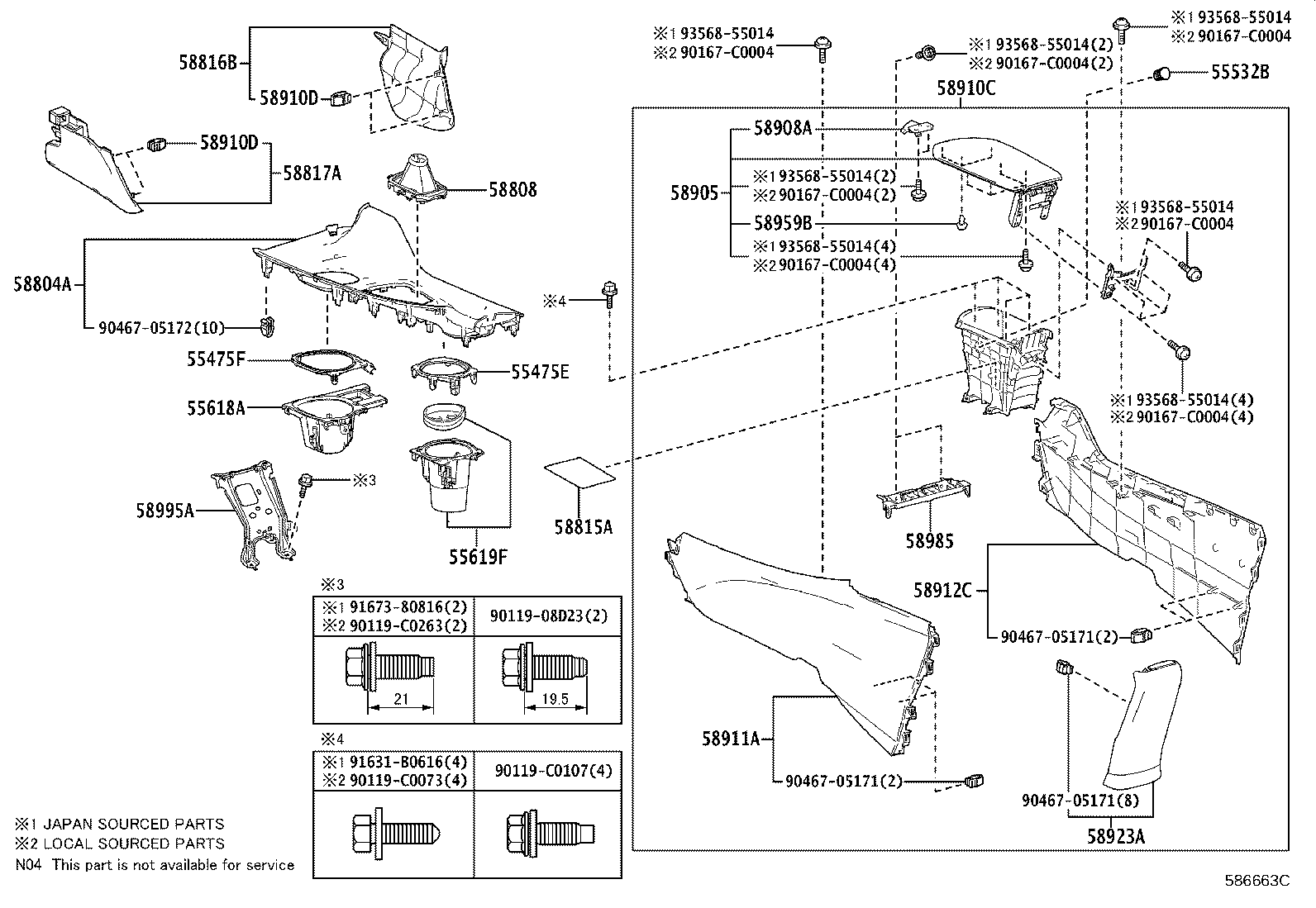

Figure 586657B 586657B 2018-08 → 2021-06 Figure 586663C 586663C 2021-06 → —

Part groups

PNCDescription
55475E Garnish, Instrument Cluster Finish Panel, Center
55475F Garnish, Instrument Cluster Finish Panel, Center NO.2
55532B Cover, Cigar Lighter Hole
55618A Holder, Console Box Cup
55619F Holder, Console Box Cup, NO.2
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58815A Carpet, Console Box
58816B Insert, Console Box
58817A Insert, Console Box, Front NO.2
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58910D Clip(FOR CONSOLE BOX)
58911A Panel, Box Side, NO.1
58912C Panel, Box Side, NO.2
58923A Panel, Console Rear End
58959B Cushion, Console Compartment Door
58985 Retainer, Console Box
58995A Bracket, Console Box Mounting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
