Toyota C-hr(CHINA)
2018-08 → present · chassis MAXA10,MAXH10 · catalogue 533310 · General
Supported model
Data version 2021-05

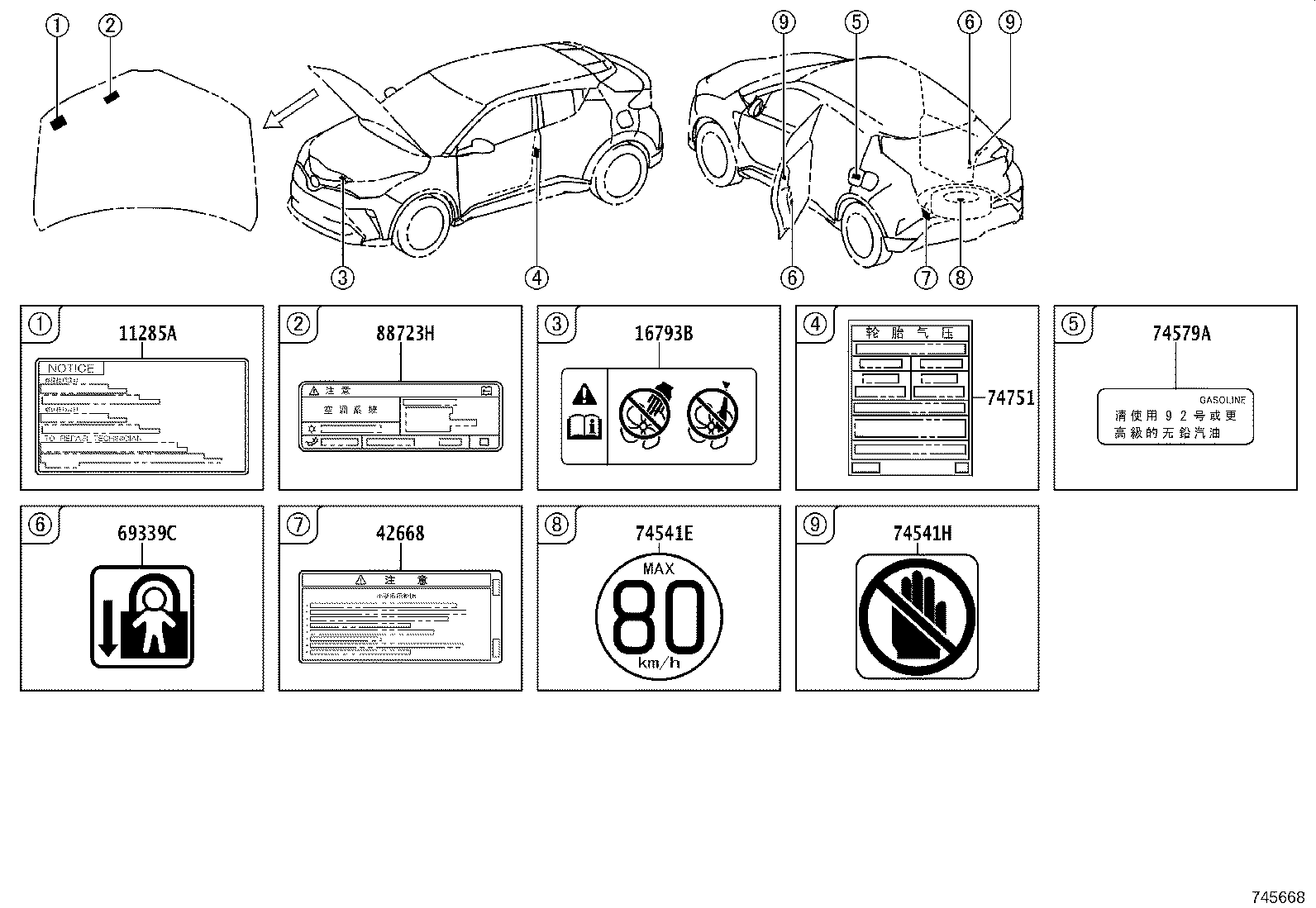

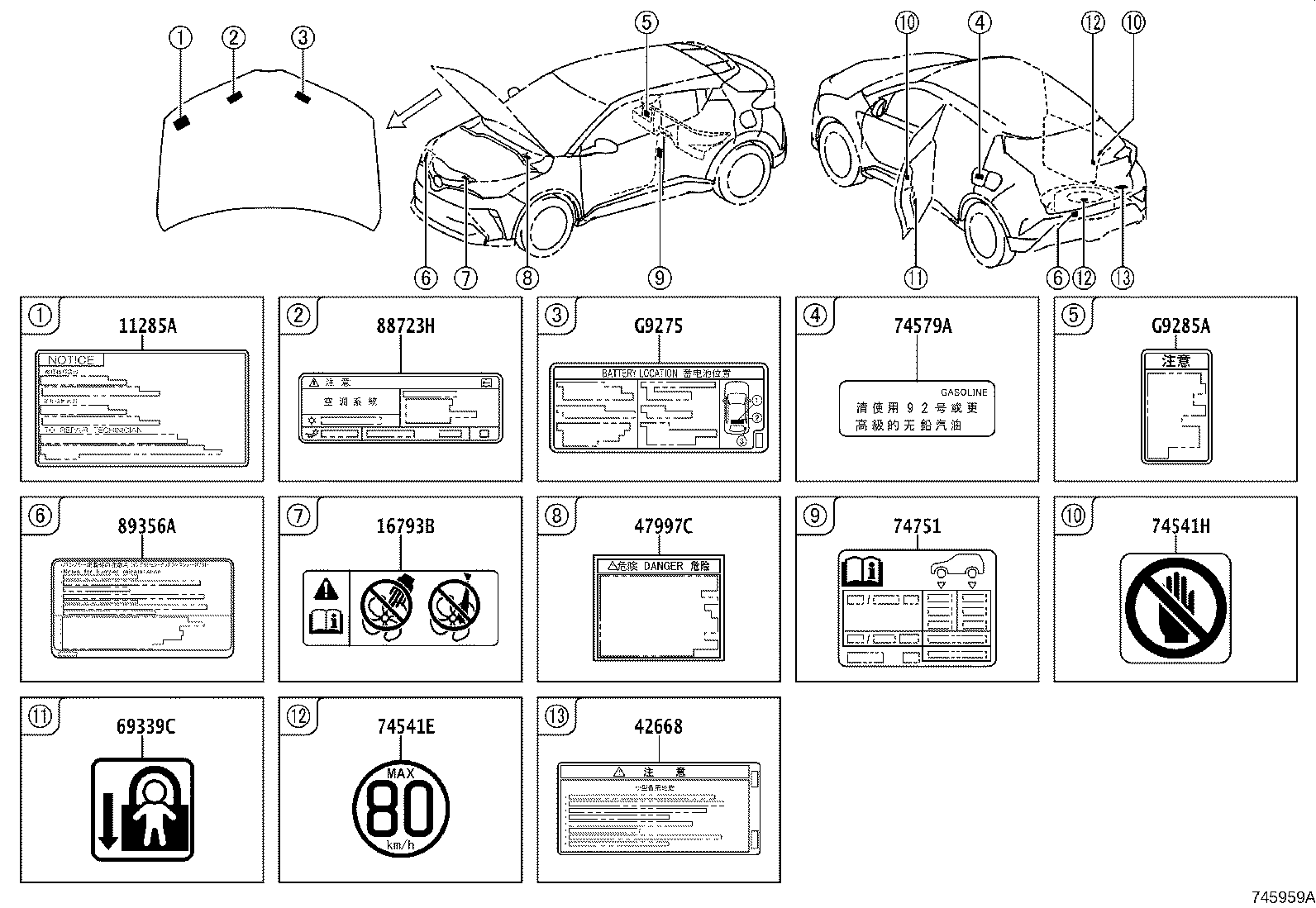

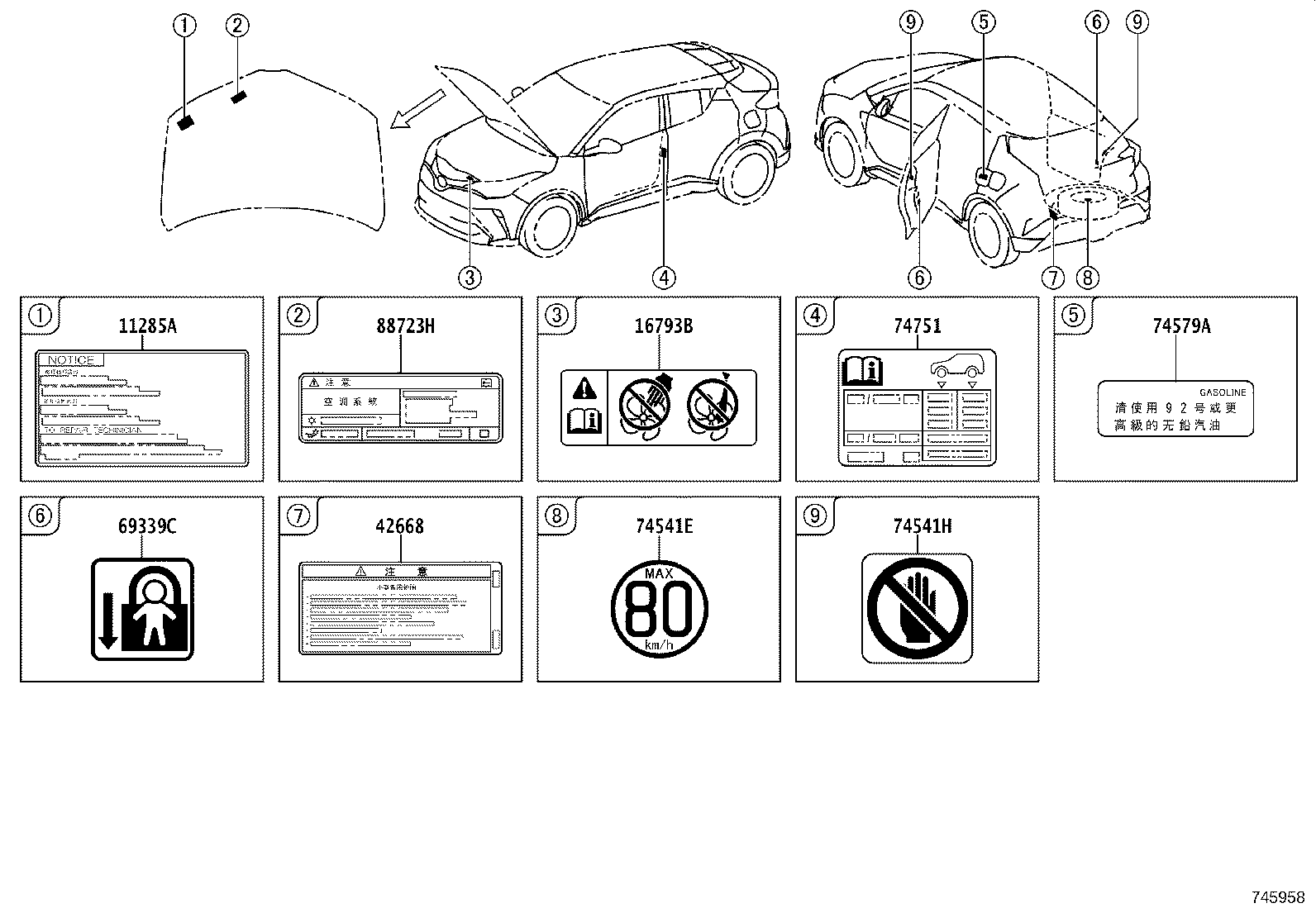

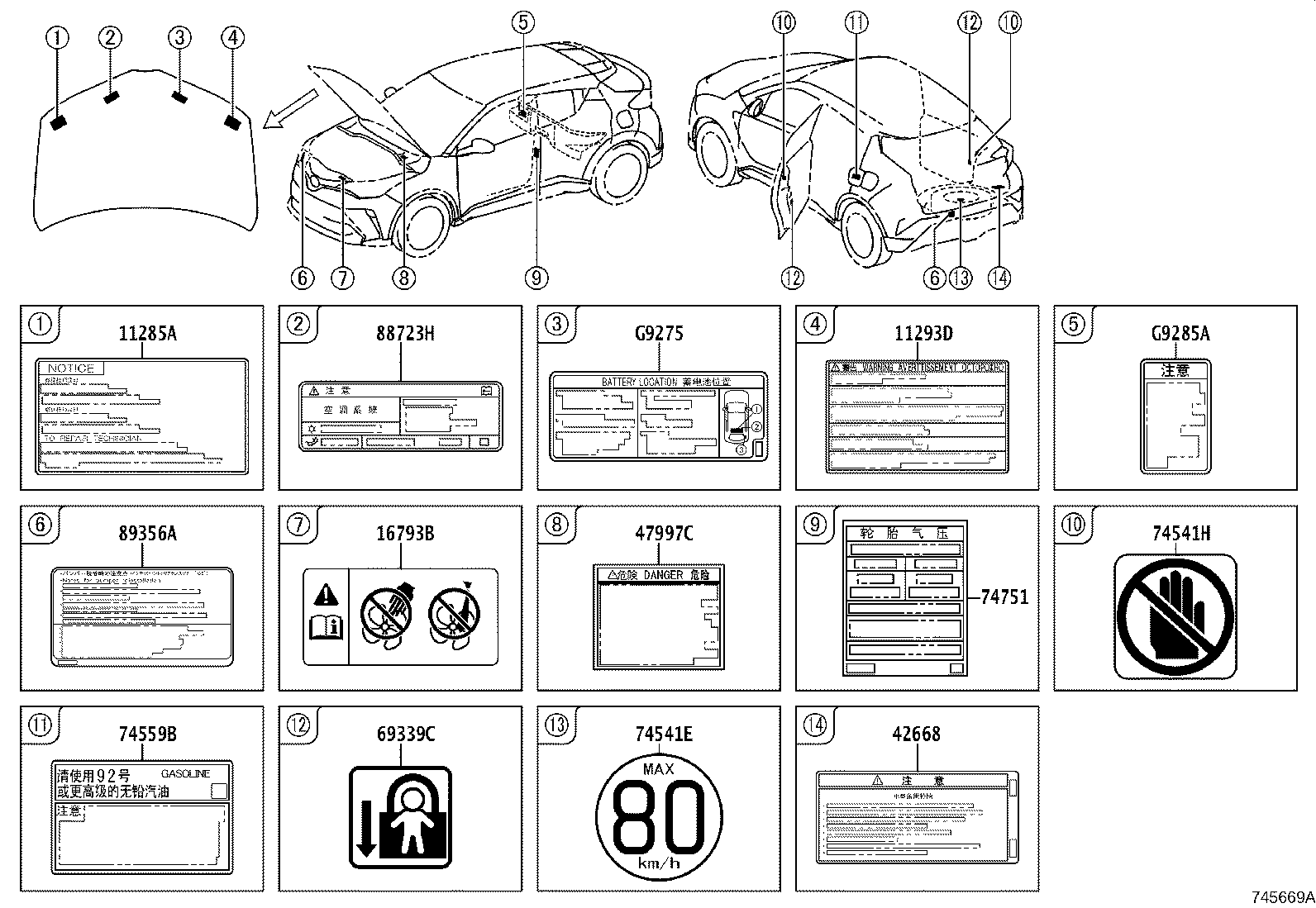

Caution Plate (EXTERIOR & INTERIOR)
17 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11293D | Label, Engine Caution |
| 16793B | Label, Cooling Fan Information |
| 42668 | Label, Compact Spare Tire Caution |
| 47997C | Label, Accumulator Caution, NO.1 |
| 69339C | Label, Child Protector Information |
| 74515A | Plate, Theft Warning |
| 74541E | Plate, Compact Spare Tire Caution |
| 74541H | Plate, Body Caution |
| 74559B | Label, Fuel Information |
| 74579A | Label, Unleaded Fuel Information |
| 74596A | Label, Side Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 88723H | Label, Cooler Service Caution |
| 89356A | Label, Clearance Warning Information |
| G9275 | Label, Battery Caution, NO.1 |
| G9285A | Label, HV Battery Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
