Toyota C-hr(CHINA)
2018-08 → present · chassis MAXA10,MAXH10 · catalogue 533310 · General
Supported model
Data version 2021-05

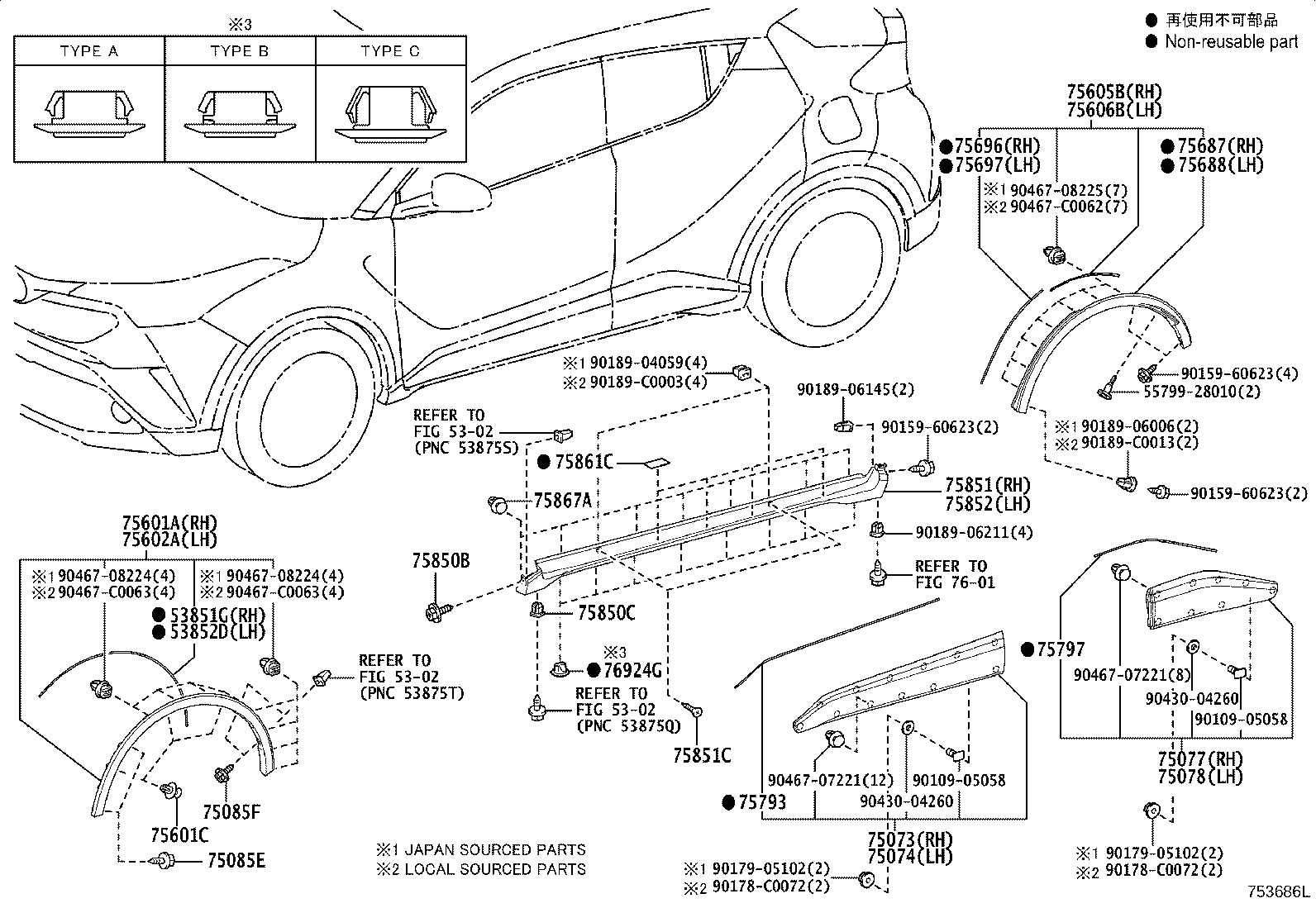

Side Moulding
56 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53851G | Pad, Front Wheel Opening Extension, RH |
| 53852D | Pad, Front Wheel Opening Extension, LH |
| 60117 | Cover Sub-assy, Front Pillar, Upr RH |
| 60118 | Cover Sub-assy, Front Pillar, Upr LH |
| 61991B | Protector, Front Pillar Cover, RH |
| 61992 | Protector, Front Pillar Cover, LH |
| 62505E | Cover Sub-assy, Quarter Pillar, RH |
| 62506C | Cover Sub-assy, Quarter Pillar, LH |
| 75073 | Moulding Sub-assy, Front Door, Outside Lower RH |
| 75074 | Moulding Sub-assy, Front Door, Outside Lower LH |
| 75077 | Moulding Sub-assy, Rear Door Outside Lower RH |
| 75078 | Moulding Sub-assy, Rear Door Outside Lower LH |
| 75085E | Screw, NO.1 |
| 75085F | Screw, NO.2 |
| 75553F | Moulding, Quarter Garnish, RH |
| 75554E | Moulding, Quarter Garnish, LH |
| 75555D | Moulding, Roof Drip Side Finish, Center RH |
| 75556C | Moulding, Roof Drip Side Finish, Center LH |
| 75561 | Clip, Roof Drip Side Finish Moulding, NO.1 |
| 75585B | Protector, Rear Pillar Garnish, NO.1 |
| 75586B | Protector, Rear Pillar Garnish, NO.2 |
| 75601A | Moulding Sub-assy, Front Fender, RH |
| 75601C | Clip, Front Fender Moulding |
| 75602A | Moulding Sub-assy, Front Fender, LH |
| 75605B | Moulding Sub-assy, Quarter Outside, RH |
| 75606B | Moulding Sub-assy, Quarter Outside, LH |
| 75687 | Protector, Quarter Moulding, Lower Rear RH |
| 75688 | Protector, Quarter Moulding, Lower Rear LH |
| 75696 | Pad, Body Outside Moulding, NO.1 |
| 75697 | Pad, Body Outside Moulding, NO.2 |
| 75711B | Moulding, Front Door Belt, RH |
| 75712B | Moulding, Front Door Belt, LH |
| 75721A | Moulding, Rear Door Belt, RH |
| 75722A | Moulding, Rear Door Belt, LH |
| 75751A | Moulding, Front Door Window Frame, RH(FRONT PILLAR SIDE) |
| 75752A | Moulding, Front Door Window Frame, LH(FRONT PILLAR SIDE) |
| 75753 | Moulding, Front Door Window Frame, Upper RH |
| 75754A | Moulding, Front Door Window Frame, Upper LH |
| 75755A | Moulding, Front Door Window Frame, RH(CENTER PILLAR SIDE) |
| 75756D | Moulding, Front Door Window Frame, LH(CENTER PILLAR SIDE) |
| 75761B | Moulding, Rear Door Window Frame, RH(CENTER PILLAR SIDE) |
| 75762B | Moulding, Rear Door Window Frame, LH(CENTER PILLAR SIDE) |
| 75763A | Moulding, Rear Door Window Frame, Upper RH |
| 75764A | Moulding, Rear Door Window Frame, Upper LH |
| 75765B | Moulding, Rear Door Window Frame, RH(REAR PILLAR SIDE) |
| 75766B | Moulding, Rear Door Window Frame, LH(REAR PILLAR SIDE) |
| 75793 | Pad, Front Door Outside Moulding, Upper |
| 75797 | Pad, Rear Door Outside Moulding, Upper |
| 75850B | Screw, NO.3 |
| 75850C | Grommet, NO.1 |
| 75851 | Moulding, Rocker Panel, RH |
| 75851C | Screw(FOR BODY ROCKER PANEL MOULDING) |
| 75852 | Moulding, Rocker Panel, LH |
| 75861C | Pad, Rocker Panel Moulding |
| 75867A | Clip, Rocker Panel Moulding |
| 76924G | Retainer, Rocker Panel Moulding |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
