Toyota C-hr(CHINA)

2018-08 → present · chassis MAXA10,MAXH10 · catalogue 533310 · General

Supported model Data version 2021-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

12 part groups · 2 illustrations

Illustrations

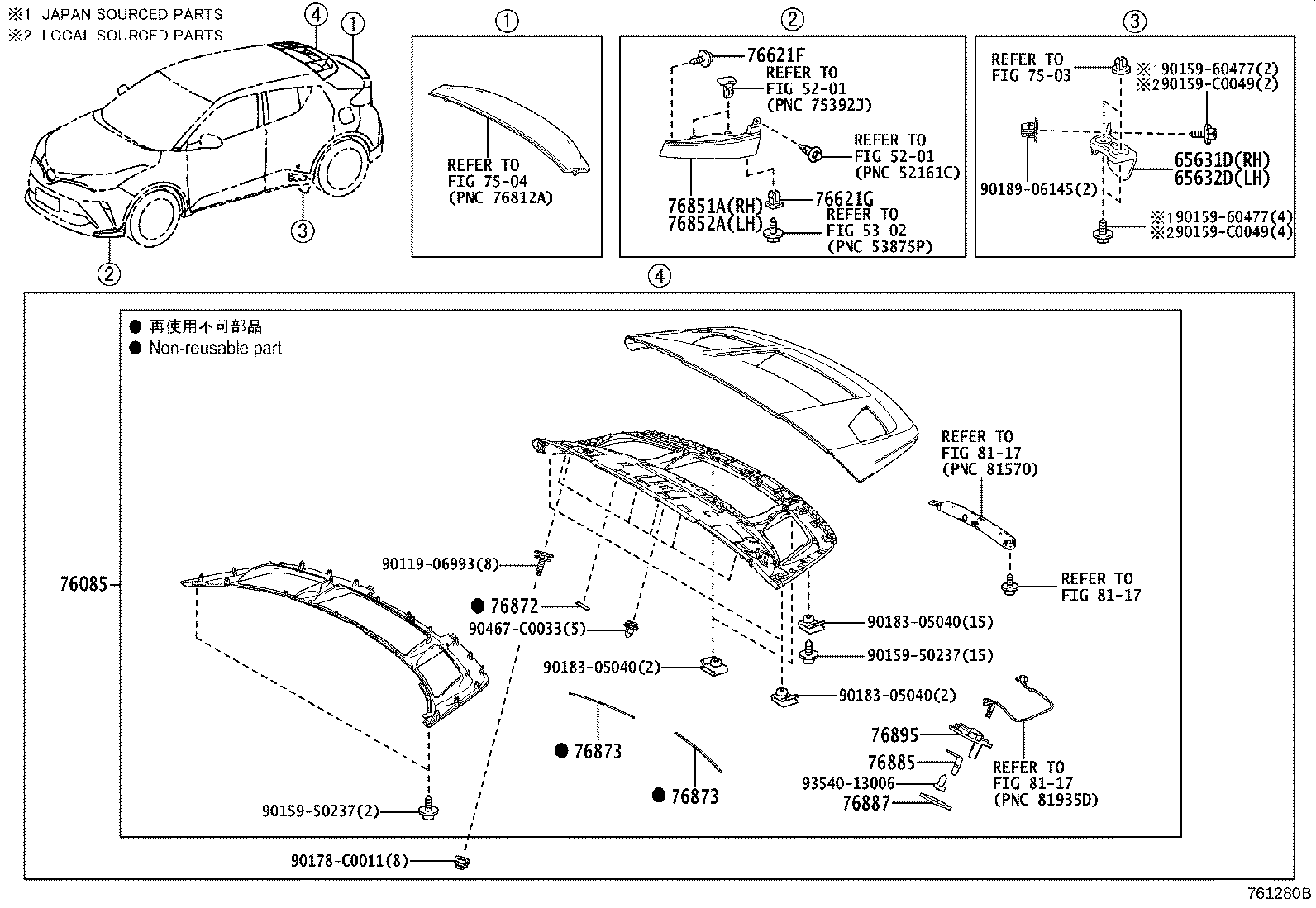

Figure 761112C 761112C 2018-08 → 2021-06 Figure 761280B 761280B 2021-06 → —

Part groups

PNCDescription
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
76085 Spoiler Sub-assy, Rear
76621F Screw, NO.1
76621G Grommet, NO.1
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76872 Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76885 Retainer, Rear Spoiler, NO.5
76887 Seal, Rear Spoiler
76895 Protector, Rear Spoiler, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
