Toyota C-hr(CHINA)

2018-08 → present · chassis MAXA10,MAXH10 · catalogue 533310 · General

Supported model Data version 2021-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

11 part groups · 5 illustrations

Illustrations

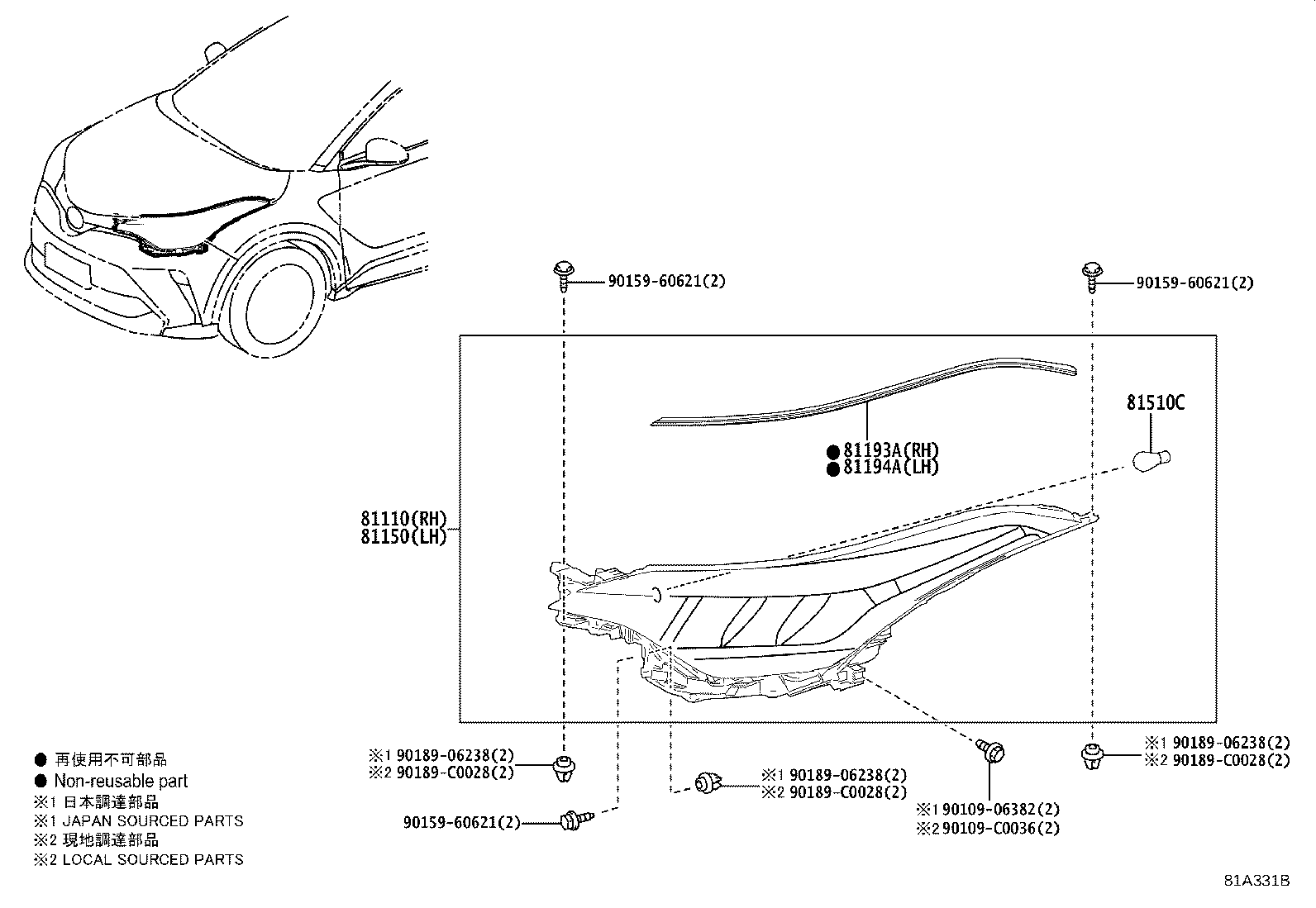

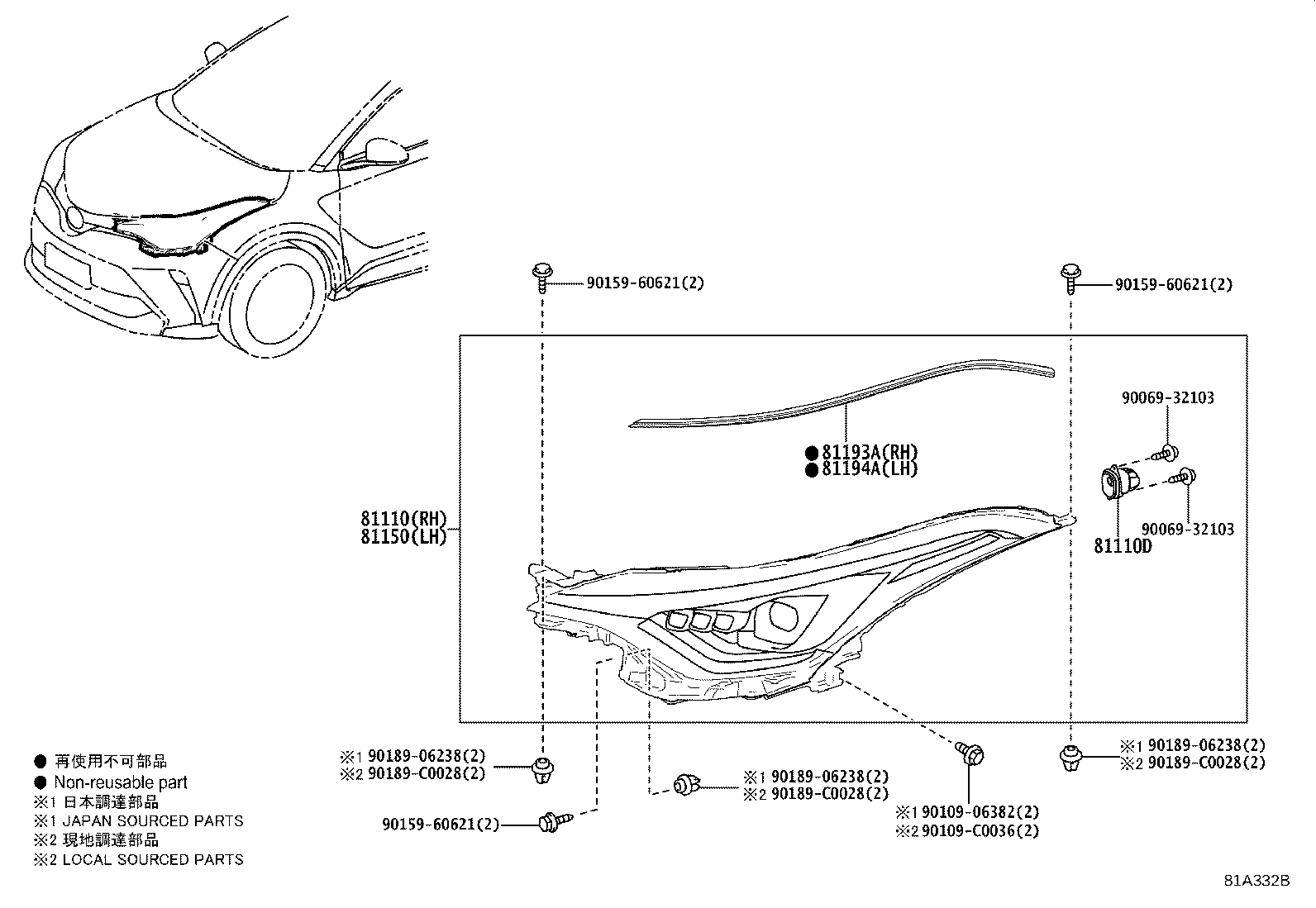

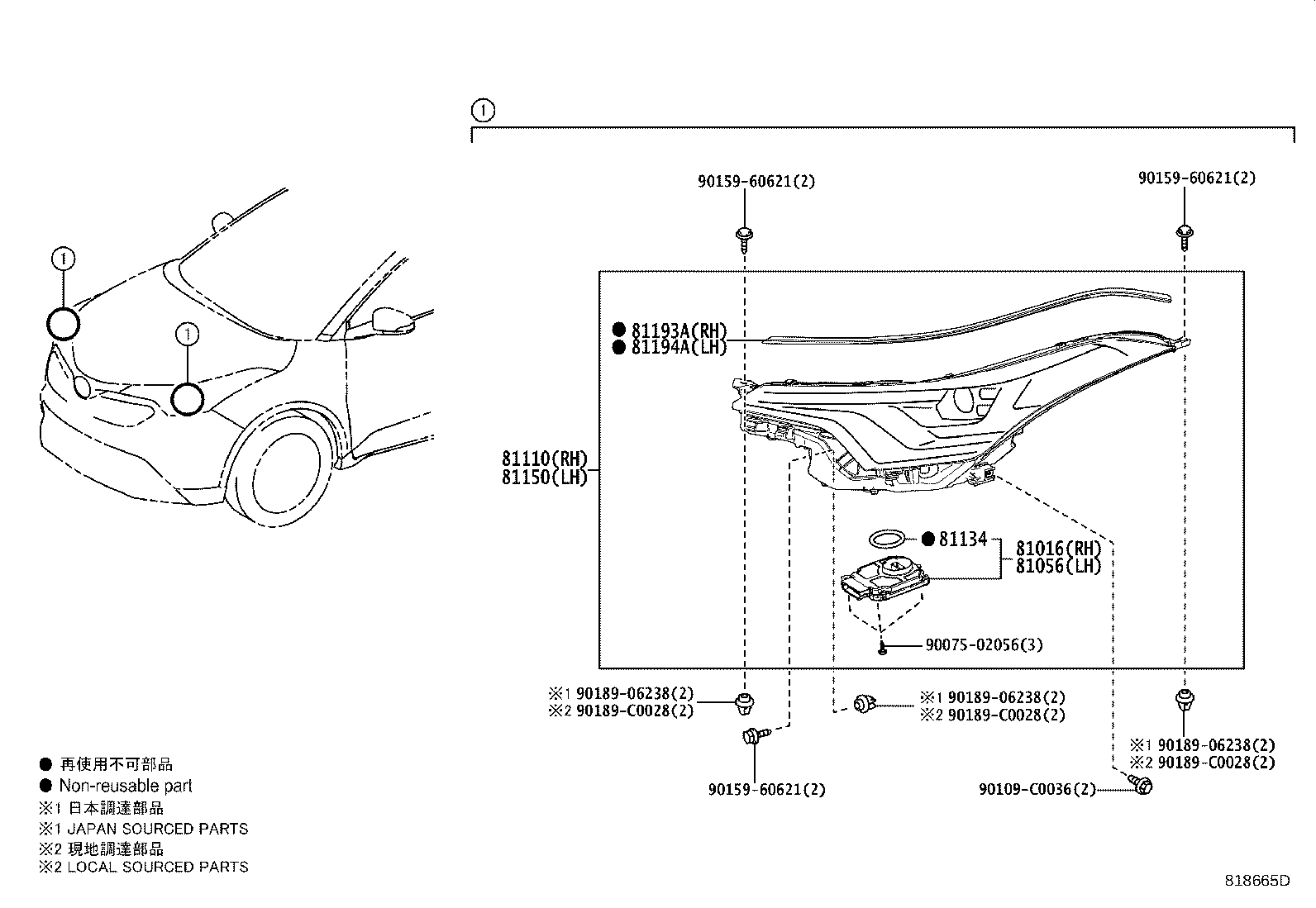

Figure 818664D 818664D 2018-08 → 2021-06 Figure 818665D 818665D 2018-08 → 2021-06 Figure 818665D 818665D 2018-08 → — Figure 81A331B 81A331B 2021-06 → — Figure 81A332B 81A332B 2021-06 → —

Part groups

PNCDescription
81016 Computer Sub-assy, Headlamp, RH NO.1
81056 Computer Sub-assy, Headlamp, LH NO.1
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81134 Gasket, Headlamp
81139 Cover, Headlamp Socket
81150 Headlamp Assy, LH
81193A Protector, Headlamp, RH
81194A Protector, Headlamp, LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
